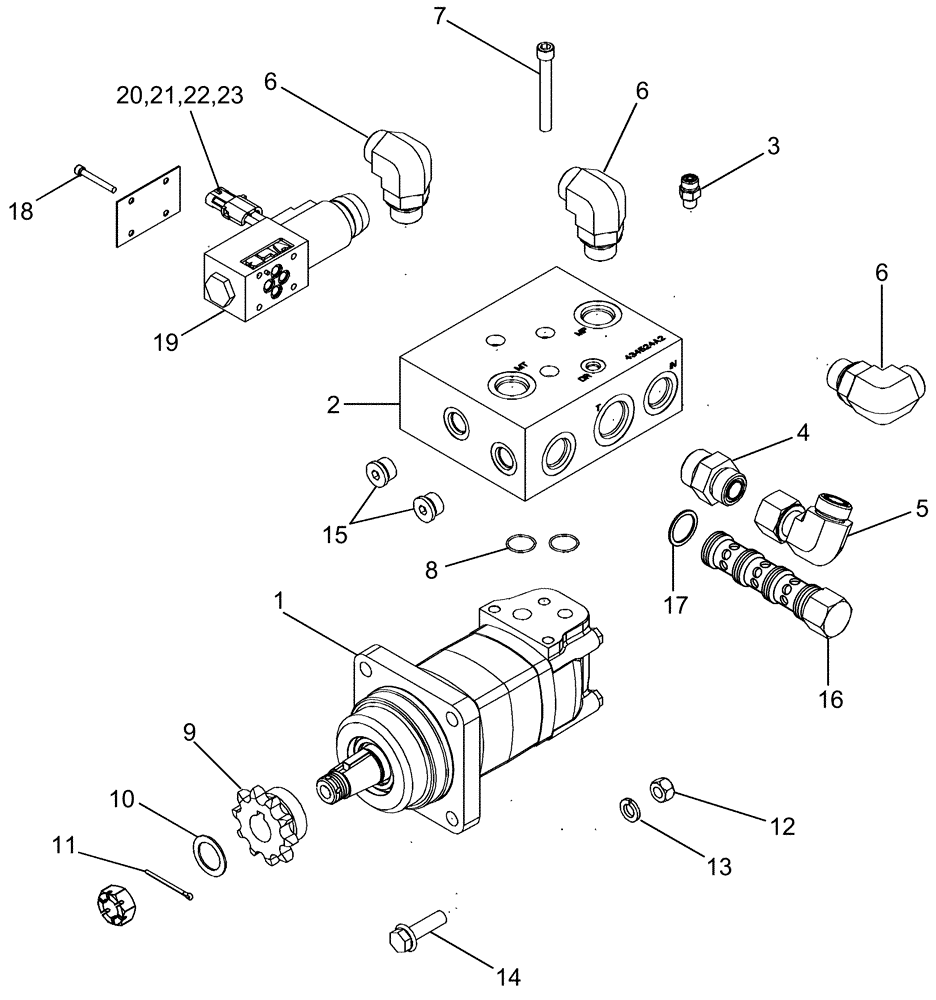

Запчасти Case IH 625 (35.910.07) - MOTOR, UNLOADER (35) - HYDRAULIC SYSTEMS

1

87447046

MOTOR, HYDRAULIC

24 CID

1шт.

2

434524A2

VALVE

Motor Control

1шт.

3

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

1шт.

4

201-129

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

1шт.

5

201-342

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

1шт.

6

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

3шт.

7

61-33848

HEX SOC SCREW,3/8"-16 x 3"

3шт.

8

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

2шт.

9

1260364C1

SPROCKET ASSY.

Drive Motor

1шт.

10

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

1шт.

11

432-828

COTTER PIN,1/8" x 1 3/4"

1шт.

12

425-108

NUT,1/2" - 13, Gr 5

4шт.

13

492-11050

LOCK WASHER,1/2"

4шт.

14

409-7828

BOLT,Hex Flg, 1/2" - 13 x 1 3/4", Spcl

4шт.

15

218-5210

PLUG,Hex, 3/4"-16 ORB

2шт.

16

87384690

VALVE

3-Way

1шт.

17

107421A1

PLATE

1шт.

18

86514807

SET OF SCREWS,#10 - 24 x 1-1/4"

Kit

1шт.

19

87423351

VALVE

4-Way, Inc. 20 - 23

1шт.

20

87026108

COIL ASSY.

1шт.

21

188106A1

NUT

1шт.

22

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.

23

86600834

SEAL KIT

1шт.
