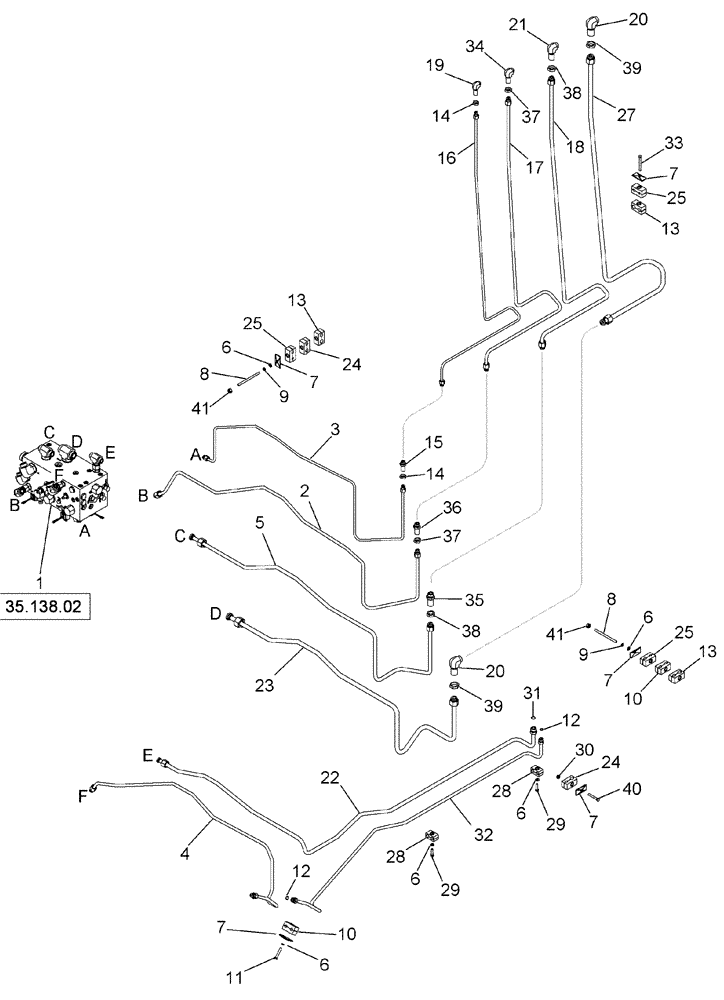

Запчасти Case IH 625 (35.910.06) - HYDRAULIC PLUMBING - AUGER, COMPACTOR, AND DOOR, RIGHT HAND (35) - HYDRAULIC SYSTEMS

1

REF

INSTRUCTION

VALVE With Fittings

1шт.

2

87450075

HYD TUBE,0.5" OD

Auger Forward

1шт.

3

87451578

HYD TUBE,0.375" OD

Auger Motor Case Drain

1шт.

4

87450077

HYD TUBE,0.5" OD

Door Close Main

1шт.

5

87450073

HYD TUBE,0.625" OD

Compactor Rise Right Hand

1шт.

6

495-11034

WASHER,5/16", SAE

4шт.

7

1347127C1

PLATE

5шт.

8

87675187

ROD

2шт.

9

492-11031

LOCK WASHER,5/16"

3шт.

10

1546025C1

CLAMP

2шт.

11

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

12

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

13

87000144

CLAMP

3шт.

14

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

2шт.

15

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

1шт.

16

87451931

HYD TUBE,0.375" OD

Auger Motor Case Drain Basket

1шт.

17

87451930

HYD TUBE,0.5" OD

Auger Motor Right Hand Basket

1шт.

18

87451929

HYD TUBE,0.625" OD

Auger Compactor Basket Raise

1шт.

19

201-357

HYD CONNECTOR,90 Degree Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS

1шт.

20

201-323

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

2шт.

21

201-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

1шт.

22

87450071

HYD TUBE,0.625" OD

Door Open Right Hand

1шт.

23

87450072

HYD TUBE,0.75" OD

Compactor Lower Right Hand

1шт.

24

87000139

CLAMP

2шт.

25

87105732

CLAMP

3шт.

26

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

1шт.

27

87451928

HYD TUBE,0.75" OD

Auger Compactor Right Hand Basket Lower

1шт.

28

87451102

CLAMP

2шт.

29

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

31

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

32

87450417

HYD TUBE

Cylinder Connection Door Open Right Hand

1шт.

33

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

1шт.

34

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

1шт.

35

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

1шт.

36

201-121

HYD CONNECTOR,13/16"-16, Blkhd, ORFS

1шт.

37

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

38

201-919

BHD LOCK NUT,1" - 14

2шт.

39

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

40

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

41

425-105

NUT,5/16"-18, G5

2шт.
