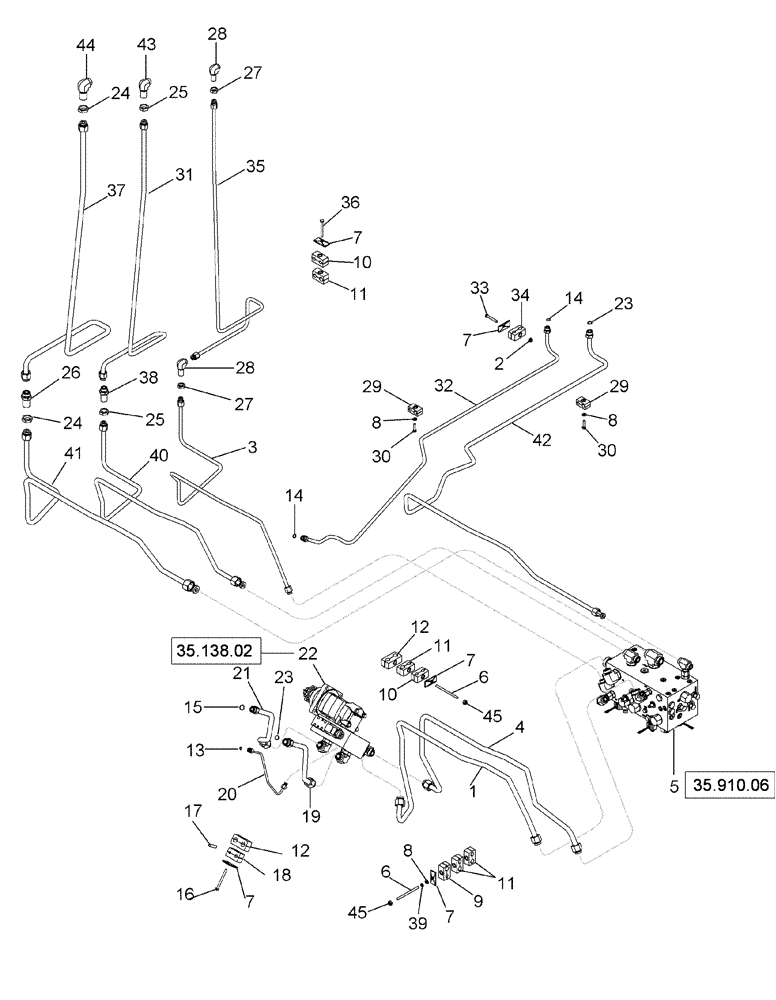

Запчасти Case IH 625 (35.910.05) - HYDRAULIC PLUMBING - AUGER, COMPACTOR, AND DOORS, LEFT HAND (35) - HYDRAULIC SYSTEMS

1

87449730

HYD TUBE,0.75" OD

Unloader Motor Pressure

1шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

3

87449844

TUBE,0.5" OD

Auger Reverse

1шт.

4

87449731

HYD TUBE,0.75" OD

Unloader Motor Return

1шт.

5

REF

INSTRUCTION

Valve With Fittings

1шт.

6

87675187

ROD

2шт.

7

1347127C1

PLATE

5шт.

8

495-11034

WASHER,5/16", SAE

4шт.

9

87000153

CLAMP,2 Hole, 19.05 - 12.70 mm Dia Ribbed, 37mm H x 67mm L

1шт.

10

1546025C1

CLAMP

2шт.

11

87000144

CLAMP

4шт.

12

1546027C1

CLAMP

2шт.

13

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

15

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

16

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

1шт.

17

163489C1

STRIP

1шт.

18

87105732

CLAMP

1шт.

19

87448517

TUBE,0.75" OD

Motor Inlet

1шт.

20

87448519

TUBE,0.25" OD

Case Drain

1шт.

21

87448516

TUBE,0.75" OD

Motor Return

1шт.

22

REF

INSTRUCTION

Unloader Motor With Valve

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

24

218-1249

BHD LOCK NUT,1-3/16" - 12

4шт.

25

201-919

BHD LOCK NUT,1" - 14

4шт.

26

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

2шт.

27

201-903

TUBE NUT,Blkhd, 13/16"-16

4шт.

28

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

3шт.

29

87451102

CLAMP

2шт.

30

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

31

87452489

HYD TUBE,.625" OD

Auger Compactor Left Hand Basket Raise

1шт.

32

87450070

TUBE,0.5" OD

Cylinder Connection Door Open Left Hand

1шт.

33

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

34

87000139

CLAMP

1шт.

35

87452490

HYD TUBE,0.5" OD

Auger Motor Left Hand Basket

1шт.

36

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

1шт.

37

87452488

HYD TUBE,0.75" OD

Auger Compactor Left Hand Basket Lower

1шт.

38

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

1шт.

39

492-11031

LOCK WASHER,5/16"

2шт.

40

87449729

TUBE,0.625" OD

Compactor Raise Left Hand

1шт.

41

87449728

TUBE,0.75" OD

Compactor Lower Left Hand

1шт.

42

87449726

TUBE,0.625" OD

Door Open Left Hand Side

1шт.

43

201-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

2шт.

44

201-323

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS

1шт.

45

425-105

NUT,5/16"-18, G5

2шт.
