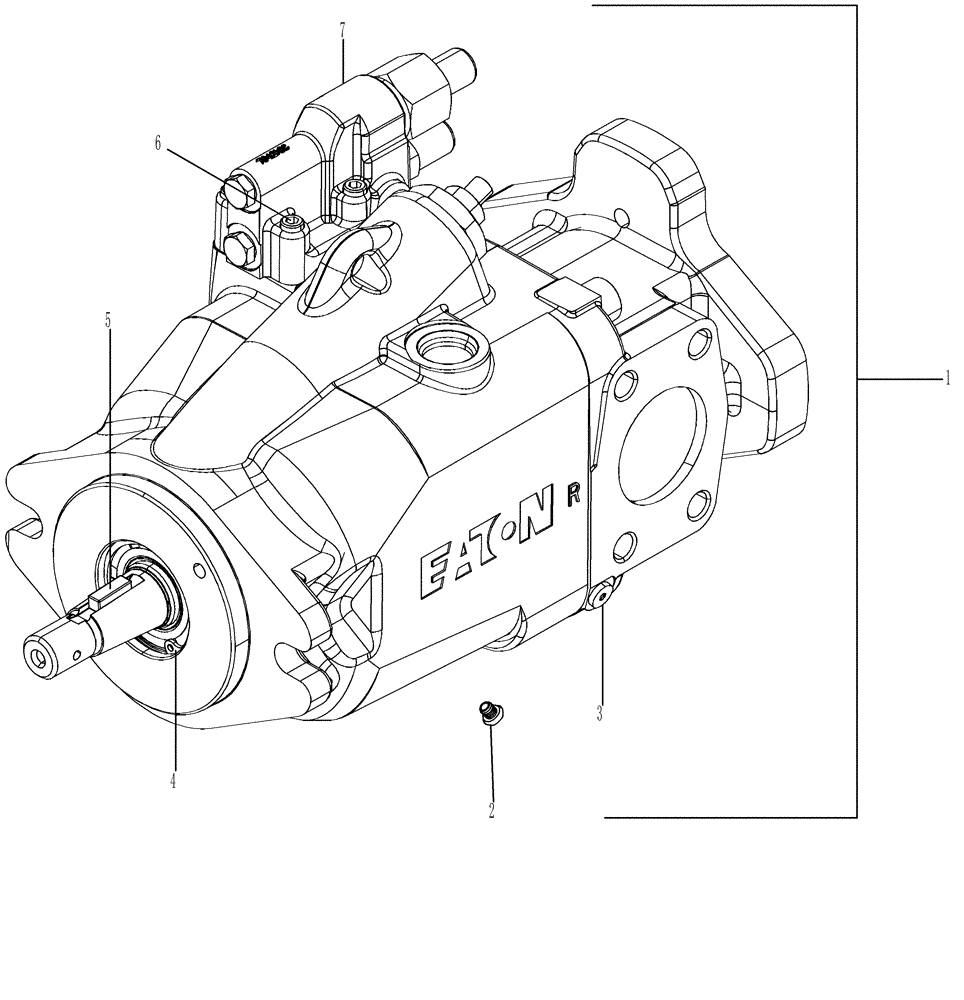

Запчасти Case IH 625 (35.304.02) - HYDRAULIC PISTON PUMP ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

87423528

HYDRAULIC PUMP,50 CC

Piston, Inc. 2 - 7

1шт.

2

86625138

PLUG,7/18" - 14

1шт.

3

86632547

PLUG,Hex, 5/16"-24 ORB

(Not Shown)

3шт.

4

100-21200

SNAP RING,2", Int, #200

1шт.

5

452779R1

KEY,1/4" Sq x 3/4", Par

1шт.

6

A45149

SPECIAL BOLT

SPARE PART Compensator Mounting

4шт.

7

87374842

COMPENSATOR

1шт.

8

87581184

BEARING SET

Bearing Shaft (Not Shown)

1шт.

9

87581185

SERVICE KIT

Seal Pump and Compensator (Not Shown)

1шт.
