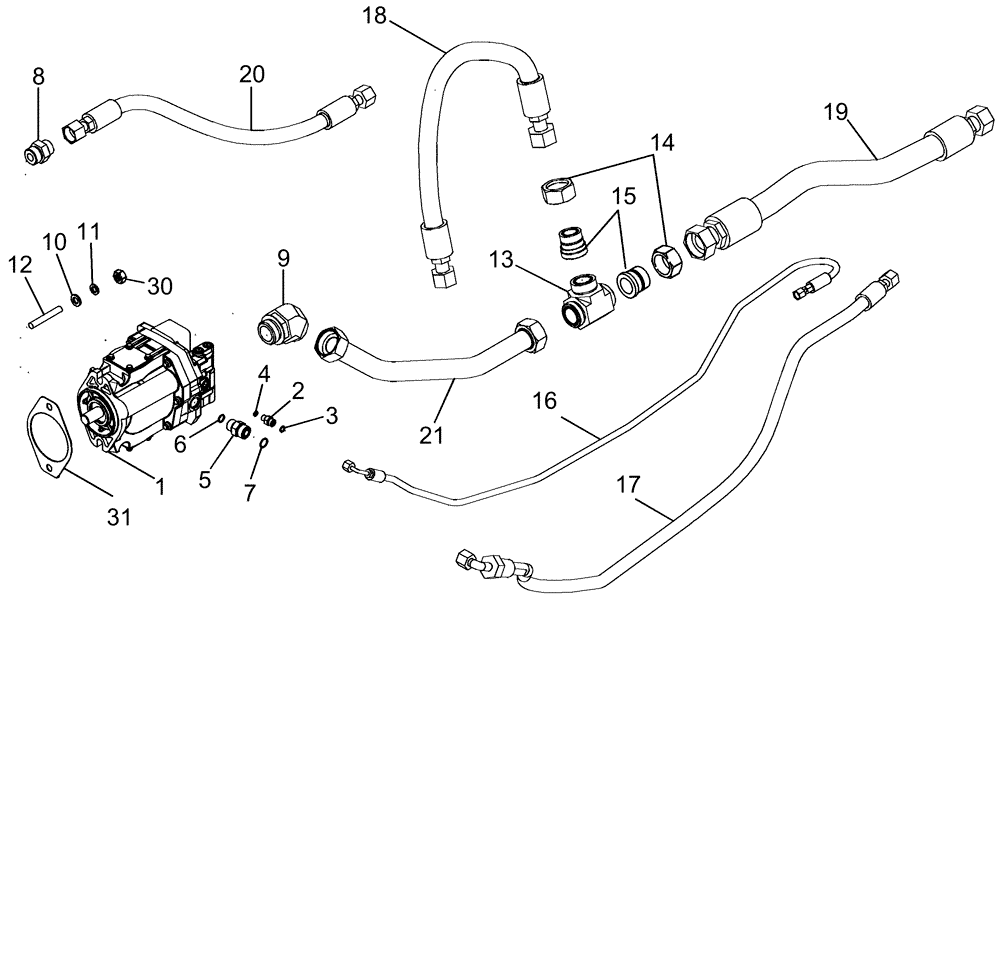

Запчасти Case IH 625 (35.304.01) - HYDRAULIC AUXILIARY PUMP (35) - HYDRAULIC SYSTEMS

1

87423526

HYDRAULIC PUMP,41 CC

Auxiliary, Inc. 22 - 29

1шт.

1

1263234C1

SHAFT

Drive

1шт.

2

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Inc. 3,4

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

5

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 6, 7

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

8

201-129

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-5/16" - 12 ORB

1шт.

9

201-375

ELBOW

1шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

11

892-11012

LOCK WASHER,M12

2шт.

12

BN310636

STUD

Auxiliary Pump Mounting

2шт.

13

201-431

TEE,2"-12 ORFS

1шт.

14

203-907

TUBE NUT,2"-12 ORFS

2шт.

15

201-150

REDUCER,1 11/16"-12 Male x 2"-12 Fem, ORFS

2шт.

16

87436845

HOSE ASSY.

Auxiliary Pump Sense

1шт.

17

87382768

HOSE ASSY.

Auxiliary Pump Drain

1шт.

18

87522813

HOSE ASSY.

Auxiliary Pump Cooler

1шт.

19

87601649

HOSE ASSY.

Auxiliary Pump Suction Jump Front

1шт.

20

87522814

HOSE ASSY.

Auxiliary Pump Pressure

1шт.

21

87559544

HYD TUBE,38.1 mm OD x 382.62 mm L

Auxiliary Pump Suction

1шт.

22

100-21175

SNAP RING,1.75", Int, #175

(Not Shown)

1шт.

23

1263241C1

WHEEL BEARING KIT

Yoke Bearing (Not Shown)

1шт.

24

1263242C1

KIT

Kit, Shaft Bearing (Not Shown)

1шт.

25

1288981C2

KIT

Kit (Not Shown)

1шт.

26

452779R1

KEY,1/4" Sq x 3/4", Par

(Not Shown)

1шт.

27

86529630

PLUG,Hex Soc, 3/8"-24 ORB

(Not Shown)

1шт.

28

87025544

SEAL KIT

Kit (Not Shown)

1шт.

29

A47480

SEAL,25.35mm ID x 44.78mm OD x 7.57mm Thk

Oil Shaft (Not Shown)

1шт.

30

9706685

NUT,M12 x 1.75, Cl 8

Auxiliary Pump Mounting Stud

2шт.

31

J931608

GASKET

2шт.

31

J902603

SHIM,103.5mm ID x 120mm OD x 1.52mm Thk

1шт.
