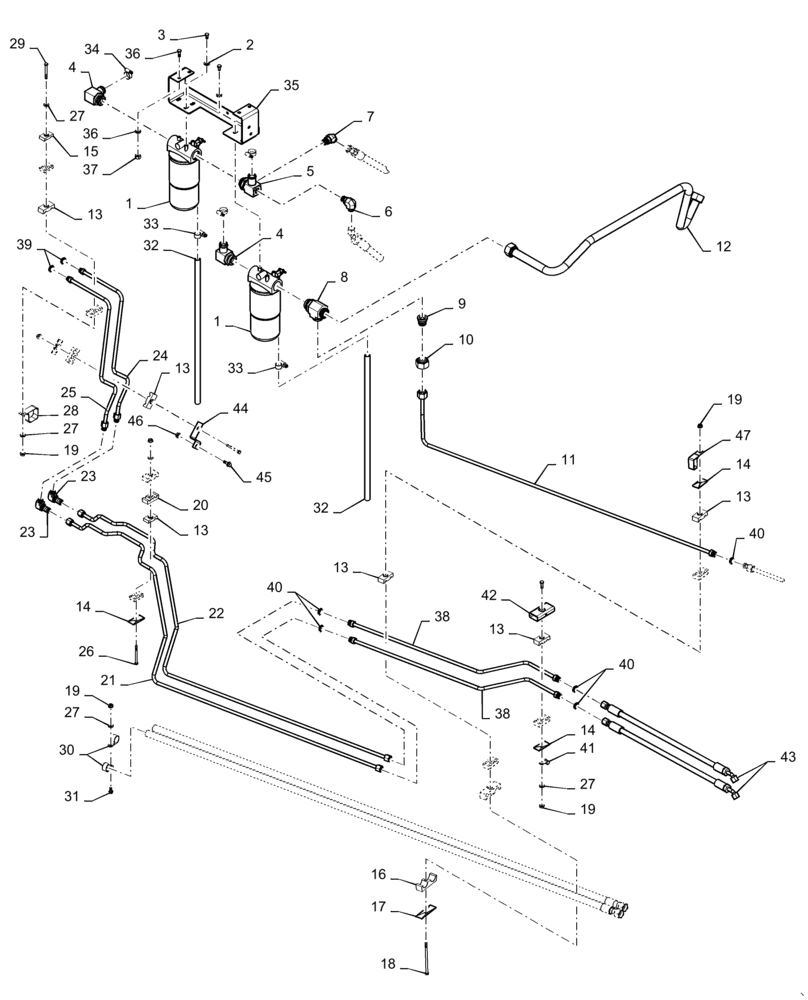

Запчасти Case IH 625 (35.300.04[01]) - HYDRAULIC FILTERS (35) - HYDRAULIC SYSTEMS

1

87784C92

HYDRAULIC OIL FILTER

Return With Drain Valve

2шт.

2

492-11038

LOCK WASHER,3/8"

10шт.

3

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

6шт.

4

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

2шт.

5

198617A2

ELBOW

Special Barb

1шт.

6

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

7

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

8

201-414

TEE,1 11/16"-12 x 1 5/8"-12 Run, ORFS

1шт.

9

201-144

REDUCER,1 3/16"-12 Male x 1 11/16"-12 Fem, ORFS

1шт.

10

203-906

TUBE NUT,1 11/16"-12 ORFS

1шт.

11

390565A1

TUBE,1" OD, 1510, 252 mm Length

1шт.

12

390566A2

TUBE

Filter Return

1шт.

13

1546025C1

CLAMP

11шт.

14

1347127C1

PLATE

Hose Clamp

4шт.

15

1546024C1

CLAMP

1шт.

16

413343A1

CLAMP

3шт.

17

1324469C1

PLATE

Hose Clamp

3шт.

18

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

3шт.

19

425-285

FLANGE NUT,Flg, 5/16"-18, G5

9шт.

20

1546028C1

CLAMP,25.4mm ID x 82mm L

1шт.

21

429562A1

TUBE

Steering, LH, Middle

1шт.

22

429563A1

TUBE

Steering, RH, Middle

1шт.

23

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

2шт.

24

87516520

HYD TUBE,0.5" OD

Assy

1шт.

25

87516519

HYD TUBE,0.5" OD

Assy

1шт.

26

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

1шт.

27

495-11034

WASHER,5/16", SAE

5шт.

28

1301387C2

CLIP

1шт.

29

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

3шт.

30

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

31

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

32

129096A1

HOSE

2шт.

33

87487835

CLAMP,0.69" - 1.25"

2шт.

34

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

3шт.

35

300278A1

BRACKET

Hydraulic Filter

1шт.

36

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

37

425-106

NUT,3/8"-16, Cl 5

4шт.

38

429572A1

TUBE

2шт.

39

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

40

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

5шт.

41

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

42

142025A1

TUBE,100 mm Length

1шт.

43

429568A1

HOSE ASSY.

Steering Cylinder

2шт.

44

196517C1

SUPPORT TUBE

Fuel Line

1шт.

45

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

1шт.

46

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

47

102251A1

CLIP

Battery Cable

3шт.
