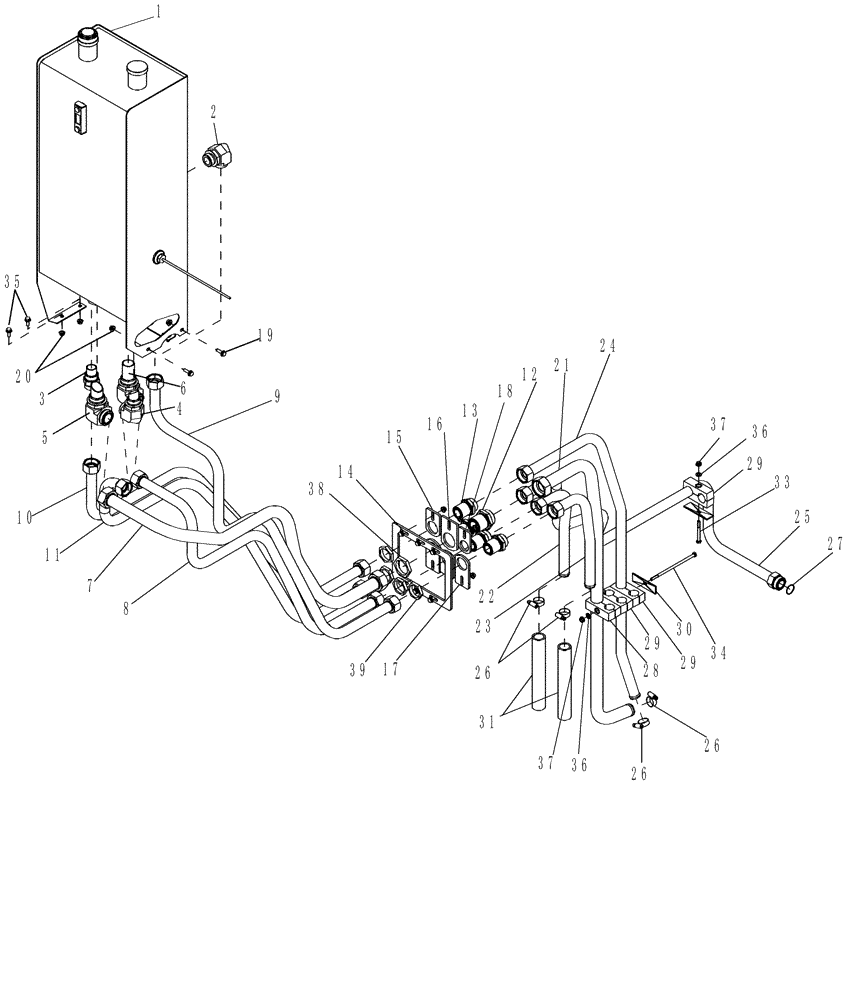

Запчасти Case IH 625 (35.300.02) - HYDRAULIC RESERVOIR ASSEMBLY (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
87589425
TANK, HYDRAULIC OIL
Hydraulic
1шт.
1
87628636
RESERVOIR ASSY.
1шт.
2
84203896
FITTING
1шт.
3
400614A1
FITTING
Reservoir Elbow
1шт.
4
87448837
FITTING
Elbow, Reservoir
1шт.
5
87448838
FITTING
Hydraulic Elbow
1шт.
6
87448839
FITTING
Hydraulic
1шт.
7
87523757
HYD TUBE,32.004 mm ID x 1.5 mm OD x 729.65, 449.1 mm L
Reservoir to Packager Pump Outside
1шт.
8
87523760
HYD TUBE,1.25" OD
Reservoir to Charge Pump Outside
1шт.
9
87523761
HYD TUBE,1.25" OD
Reservoir Return Outside
1шт.
10
87693150
HYD TUBE,1.25" OD
Reservoir to Auger Pump Outside
1шт.
11
87693446
HYD TUBE,1.25" OD
Reservoir to Auxiliary Pump Outside
1шт.
12
87394248
UNION
Orfs Bulkhead 1.5
1шт.
13
87533983
UNION
4шт.
14
87498899
PLATE ASSY.
1шт.
15
87498900
PLATE ASSY.
2шт.
16
87498901
PLATE ASSY.
1шт.
17
87498902
PLATE ASSY.
2шт.
18
87498905
PLATE ASSY.
1шт.
19
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
18шт.
20
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
6шт.
21
87523764
HYD TUBE,1.5" OD
Reservoir to Packager Pump Inside
1шт.
22
87523765
HYD TUBE,1.25" OD
Reservoir to Charge Pump Inside
1шт.
23
87523768
HYD TUBE,1.25" OD
Reservoir Return Inside
1шт.
24
87523762
HYD TUBE,1.25" OD
Reservoir to Auger Pump Inside
1шт.
25
87523763
HYD TUBE,1.25" OD
Auxiliary Pump Suction Inside
1шт.
26
214-3232
HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner
4шт.
28
87000157
CLAMP
1шт.
29
87000156
CLAMP
3шт.
30
1324469C1
PLATE
2шт.
31
1989349C3
HOSE
2шт.
32
122428A1
SWITCH
Fluid Level
1шт.
33
413-548
BOLT,Hex, 5/16" - 18 x 3", Gr 5
1шт.
34
413-5120
BOLT,Hex, 5/16" - 18 x 7-1/2", Gr 5
1шт.
35
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
6шт.
36
495-11034
WASHER,5/16", SAE
2шт.
37
425-285
FLANGE NUT,Flg, 5/16"-18, G5
2шт.
38
87533994
BHD LOCK NUT
1шт.
39
201-922
BHD LOCK NUT,Blkhd, 1 11/16-12
4шт.
Выбрано товаров: 40
