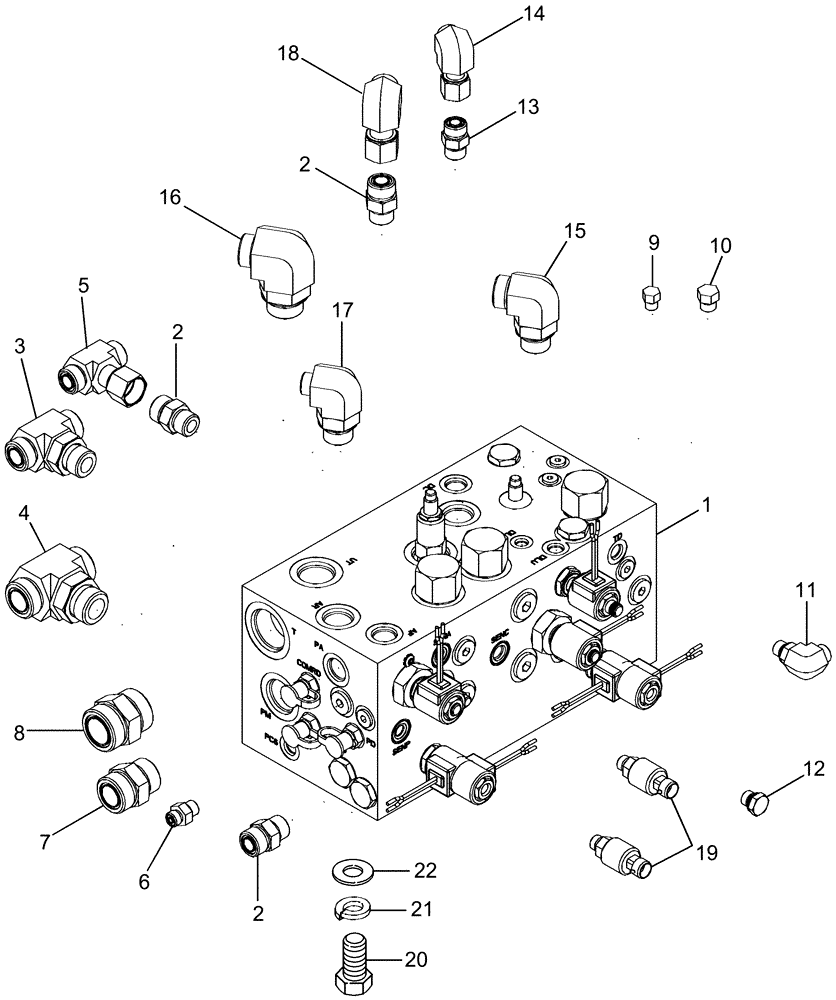

Запчасти Case IH 625 (35.138.02) - VALVE WITH FITTINGS, MODULE BUILDER CONTROL (35) - HYDRAULIC SYSTEMS

1

87397981

VALVE

1шт.

2

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

3шт.

3

201-424

TEE,1 3/16"-12 x 1 1/16"-12 Run, ORFS

1шт.

4

201-404

FITTING,1 7/16"-12 x 1 5/16"-12 Br, ORFS

1шт.

5

201-439

TEE,1"-14 ORFS x 1"-14 Sw Br

1шт.

6

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

1шт.

7

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

8

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

1шт.

9

9672438

PLUG,7/16" - 20 ORB

1шт.

10

76349

PLUG,9/16" - 18 ORB

1шт.

11

201-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

1шт.

12

220064A1

PLUG,M14 x 1.5, ORB

1шт.

13

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

14

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

1шт.

15

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1шт.

16

201-355

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

17

201-327

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB

1шт.

18

201-361

ELBOW,90 Degree Elbow, 1" - 14 Male JIC x 1" - 14 Female JIC

1шт.

19

86523197

SENSOR

2шт.

20

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

21

492-21044

LOCK WASHER,7/16"

4шт.

22

495-11047

WASHER,7/16", SAE

4шт.
