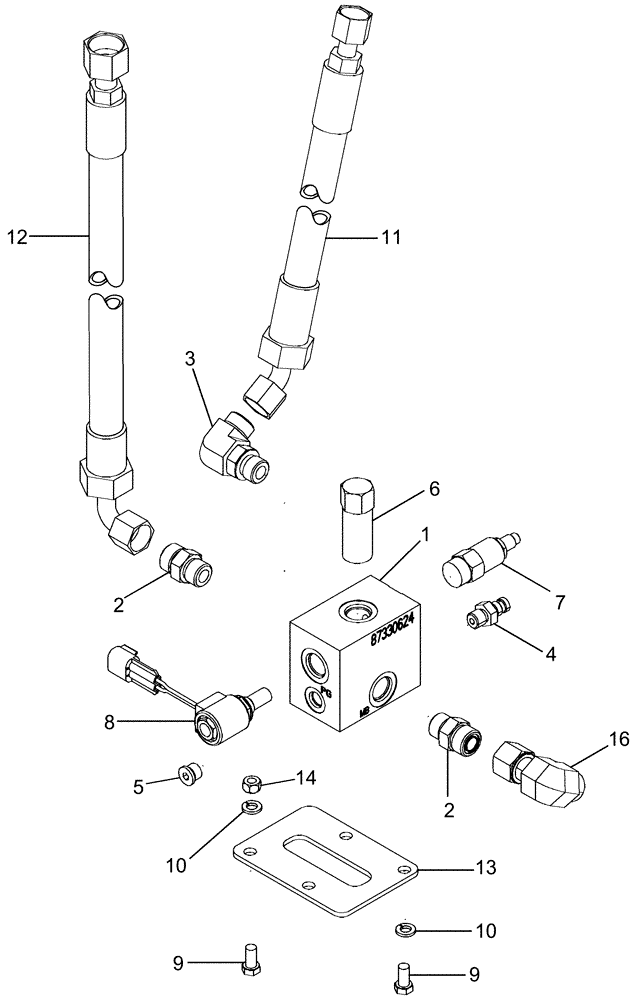

Запчасти Case IH 625 (35.138.01) - VALVE, AUGER CONTROL (35) - HYDRAULIC SYSTEMS

1

87330624

VALVE

Auger, 2250 psi

1шт.

2

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

2шт.

3

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

4

1541849C1

COUPLING

Diagnostic

1шт.

5

9625178

PLUG,9/16" - 18 ORB

1шт.

6

237125A1

ELEMENT,7/8" - 14

Valve

1шт.

7

87330625

VALVE,3/4" - 16

Relief, 2250 psi, Inc. 17

1шт.

8

87390378

VALVE

Inc. 15

1шт.

9

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

197726A1

HOSE

Aux Pump Suction

1шт.

12

87557467

HOSE ASSY.

Aux Pump Sense

1шт.

13

87349278

PLATE

1шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

87339112

HYDRAULIC VALVE

(Not Shown)

1шт.

16

201-361

ELBOW,90 Degree Elbow, 1" - 14 Male JIC x 1" - 14 Female JIC

1шт.

17

1542831C1

SEAL KIT

(Not Shown)

1шт.
