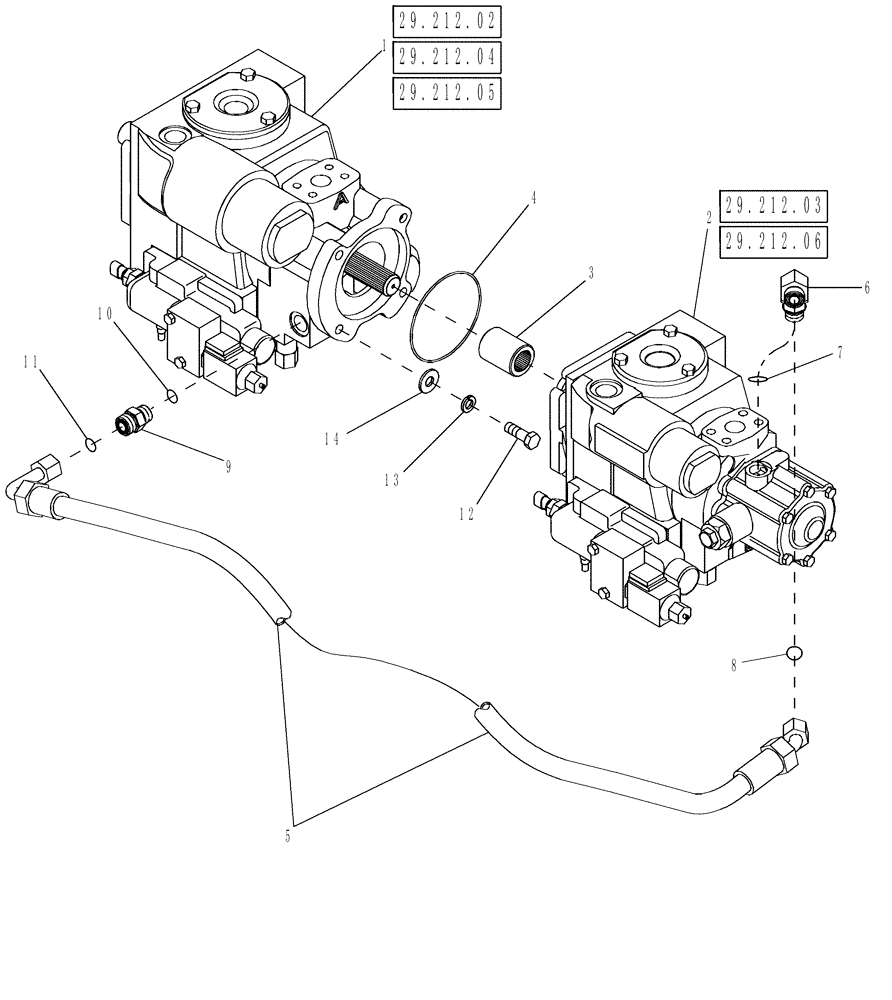

Запчасти Case IH 625 (29.212.01) - TANDEM PUMP ASSEMBLY HYDROSTATIC (29) - HYDROSTATIC DRIVE

87578857

HYDROSTATIC PUMP

Tandem, Order 1 - 11

1шт.

87578857R

REMAN-HYD PUMP

MODULE EXPRESS 625 (6/06-)

1шт.

87578857C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

407438A1

HYDROSTATIC PUMP,105.4 CC

Front

1шт.

1a

407438A1R

HYDROSTATIC PUMP

Remanufactured

1шт.

1b

407438A1C

PUMP, HYDROSTATIC, E

Return number

1шт.

2

407439A1

HYDROSTATIC PUMP

54 cc, Rear

1шт.

2a

407439A1R

HYDROSTATIC PUMP

Remanufactured

1шт.

2b

407439A1C

PUMP, HYDROSTATIC, E

1шт.

3

407326A1

COUPLING

Shaft

1шт.

4

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

1шт.

5

406564A1

HOSE ASSY.

561 mm (22"), Tandem Pump

1шт.

6

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 7, 8

1шт.

7

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

201-103

HYD CONNECTOR,1" - 14 Male ORFS x 7/8" - 14 Male ORB

Inc. 10, 11

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

12

414-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

14

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

4шт.
