Запчасти Case IH 625 (21.145.01) - TRANSMISSION ASSY - DIFFERENTIAL PINION SHAFT AND GEARS (21) - TRANSMISSION

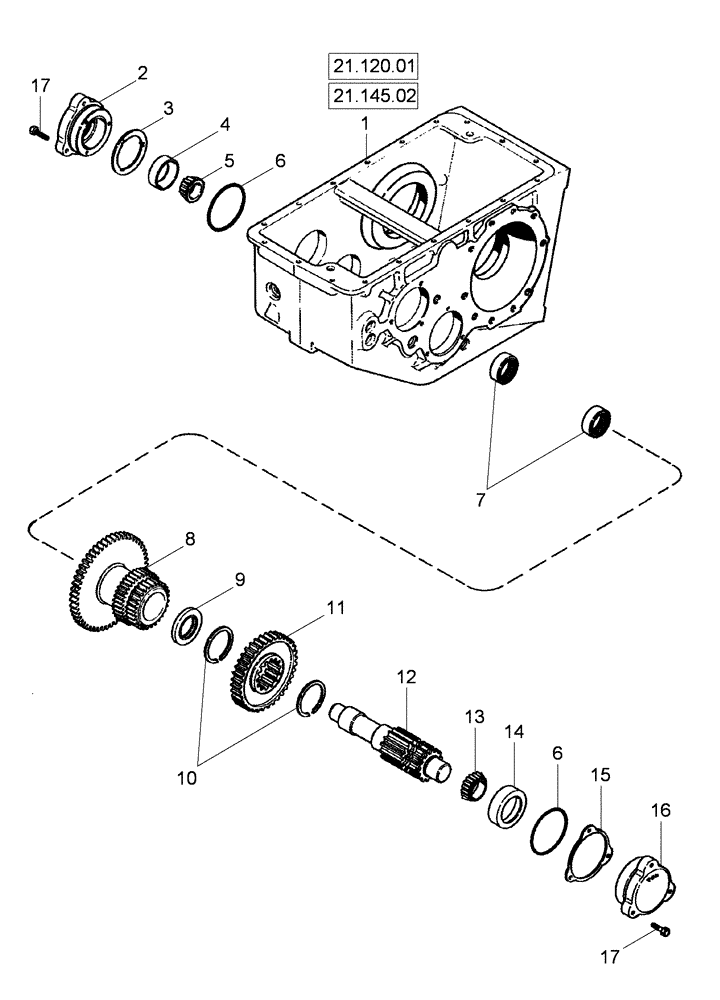

Схема запчастей Case IH 625 - (21.145.01) - TRANSMISSION ASSY - DIFFERENTIAL PINION SHAFT AND GEARS (21) - TRANSMISSION
6
5
12
3
13
14
10
21.120.01
21.145.02
9
6
1
2
16
17
4
15
11
17
7
8

Артикул

Название

Примечание

Количество

236314A1

TRANSMISSION

1шт.

236314A1R

REMAN-TRANSMISSION

MODULE EXPRESS 625 COTTON PICKER (6/06-)

1шт.

236314A1C

CORE-TRANSMISSION

Return Number

1шт.

1

236381A1

HOUSING

1шт.

2

1997933C1

BEARING COVER,59.75mm ID x 101.51mm OD x 47.5mm

BEARING COVER Left Hand

1шт.

3

530704R2

THRUST WASHER,74.42mm ID x 99.06mm OD x 1.65mm Thk

1шт.

4

131312C1

BEARING CUP

1шт.

5

131311C91

ROLLER BEARING,1.3755" ID x 2.8448" OD x 1"

1шт.

6

238-7154

O-RING,0.103" Thk x 3.737" ID, -154, Cl 7, 75 Duro

3шт.

7

675708R91

NEEDLE BEARING

2шт.

8

1997591C1

PINION

Spur, 59, 28, 28T

1шт.

9

401879R1

SPACER,54.1mm ID x 79.2mm OD x 6.28mm L

1шт.

10

196693H1

RING

2шт.

11

406606R1

GEAR

41T

1шт.

12

401878R1

SHAFT

14T

1шт.

13

57862H

BEARING CONE,1.625" ID x 3.375" OD x 1.1875"

1шт.

14

57861H

BEARING CUP

1шт.

15

401883R2

SHIM,102mm ID x 126mm OD x 0.08mm Thk

1шт.

15

401884R2

SHIM,102mm ID x 110mm OD x 0.13mm Thk

1шт.

15

401885R2

SHIM,102mm ID x 110mm OD x 0.18mm Thk

1шт.

15

184195C2

SHIM,102mm ID x 110mm OD x 0.76mm Thk

1шт.

16

1997984C1

HOUSING,73.4 mm ID x 101.51 mm OD x 33.5 mm

BEARING HOUSING Right Hand

1шт.

17

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

9шт.

Выбрано товаров: 23
