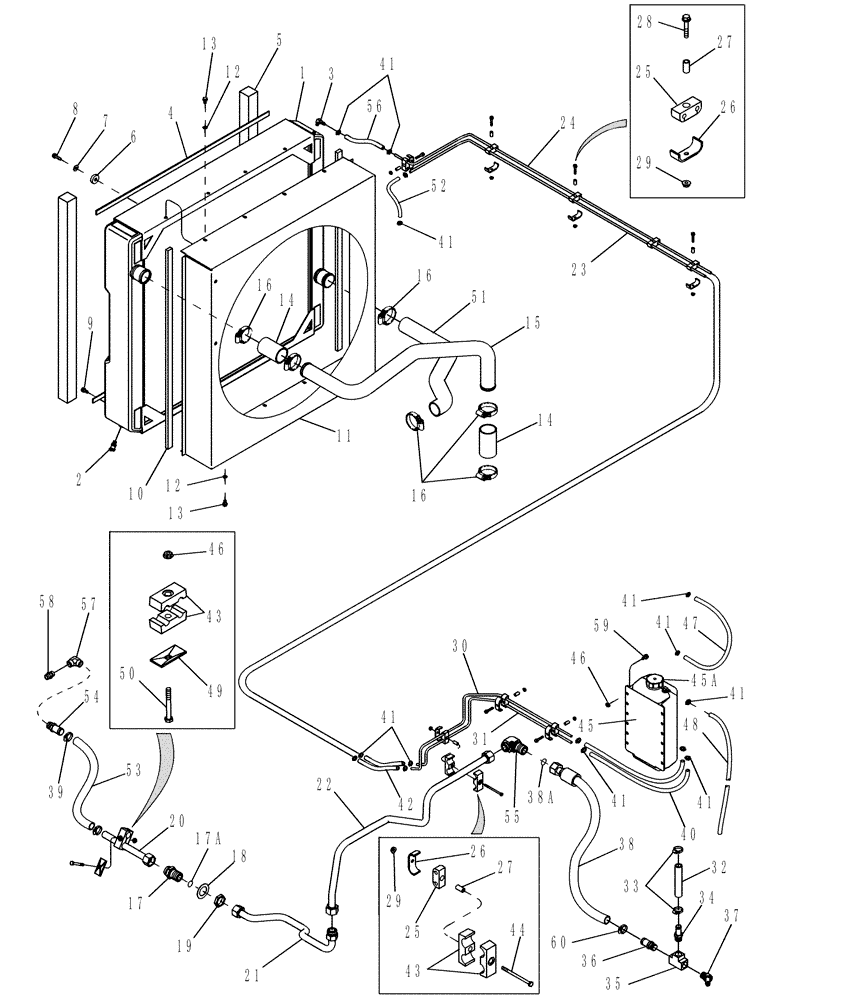

Запчасти Case IH 625 (10.406.01[01]) - RADIATOR, FAN SHROUD AND COOLANT RECOVERY SYSTEM, MODEL YEAR 2008 AND PRIOR (10) - ENGINE

1

87326738

RADIATOR

1шт.

2

86982771

VALVE

1/4 PT

1шт.

3

217-291

FITTING,90 Degree Elbow, 5/16" Hose Barb x 1/8" Male NPTF

1шт.

4

370863A1

SEAL

960 mm (37-25/32"), Cut From 195917C2

2шт.

5

370776A1

GASKET

973 mm (38-5/16"), Cut From 1264566C2

2шт.

6

257973A1

SEALING WASHER,12.5mm ID x 36mm OD x 10mm Thk

4шт.

7

495-21038

WASHER,5/16"

4шт.

8

555-14

BOLT,M8 x 38.1mm, Cl 8.8

M8 x 30, 8.8

4шт.

9

370229A1

SCREW,Hex Flg, M8 x 20mm

M8 x 20

5шт.

10

368993A1

GASKET

960 mm (37-13/16"), Cut From 87084C2

2шт.

11

87340553

SHROUD ASSY.

Engine Fan

1шт.

12

495-11034

WASHER,5/16", SAE

9шт.

13

905-8016

BOLT,Hex Flg, M8 x 16mm

9шт.

14

292755A1

HOSE,57.15 mm ID x 101.60 mm, SAE 20R4 CLASS D1 PER SAE J20

101 mm (4")

2шт.

15

284758A3

TUBE,2.25" OD, 657, 364 mm Length

1шт.

16

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

5шт.

17

201-116

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Inc. 17A

2шт.

17a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

18

495-81225

WASHER,1 17/32" x 2 1/2" x .060"

1шт.

19

201-908

BHD LOCK NUT,Blkhd, 1 7/16"-12

2шт.

20

409129A1

TUBE

1шт.

21

87523766

HYD TUBE,1" OD

1шт.

22

87523758

HYD TUBE,22.098 mm ID x 1 mm OD x 553.27, 356.8 mm L

1шт.

23

409133A1

VENTILATION PIPE

Engine Vent

1шт.

24

409132A2

VENTILATION PIPE

Radiator Vent

1шт.

25

418783A1

CLAMP

9шт.

26

418784A1

PLATE

9шт.

27

418785A1

SPACER

9шт.

28

409-7424

BOLT,Hex Flg, 1/4" - 20 x 1 1/2", Spcl

8шт.

29

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

9шт.

30

408595A1

VENTILATION PIPE

1шт.

31

408594A1

VENTILATION PIPE

Radiator Vent

1шт.

32

408599A1

HOSE ASSY.

144 mm (5-43/64")

1шт.

33

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

34

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

1шт.

35

217-1164

TEE,3/4" - 14 NPT x 3/4" - 14 NPT x 3/4" - 14 NPT

1шт.

36

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

1шт.

37

217-425

45 ELBOW,5/8" Hose Barb x 3/4" NPTF

1шт.

38

408593A1

HOSE ASSY.

520 mm (20-1/2"), Inc. 38A

1шт.

38a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

39

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

40

408605A1

HOSE

665 mm (26-3/16"), Cut From 1254166C2

2шт.

41

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

14шт.

42

408604A1

HOSE

228 mm (9"), Cut From 1254166C2

2шт.

43

1546028C1

CLAMP,25.4mm ID x 82mm L

1" ID

2шт.

44

413-456

BOLT,Hex, 1/4" - 20 x 3-1/2", Gr 5

1шт.

45

251245A1

RESERVOIR, COOLANT E

Inc. 45A

1шт.

45a

238903A1

FILLER CAP

1шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5шт.

47

408608A1

HOSE

610 mm (24"), Cut From 1254166C2

1шт.

48

408606A1

HOSE

2187 mm (86-1/8"), Cut From 1254166C2

1шт.

49

1347127C1

PLATE

1шт.

50

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

51

257528A1

RADIATOR HOSE,57.15 mm ID x 497.80 mm, SAE 20R4 CLASS D-1, SAE R20

Lower

1шт.

52

408601A1

HOSE

838 mm (33")

1шт.

53

408600A1

HOSE

577 mm (22-3/4")

1шт.

54

217-375

FITTING,1" Hose Barb x 3/4" Male NPTF

1шт.

55

201-363

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

1шт.

56

408602A1

HOSE,8.30 mm ID x 175.00 mm

Cut From 1254166C2

1шт.

57

217-1124

ELBOW,45 Degree, 3/4"-14 Female

1шт.

58

221-1212

FITTING

3/4 PT x 1-1/2

1шт.

59

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

60

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.
