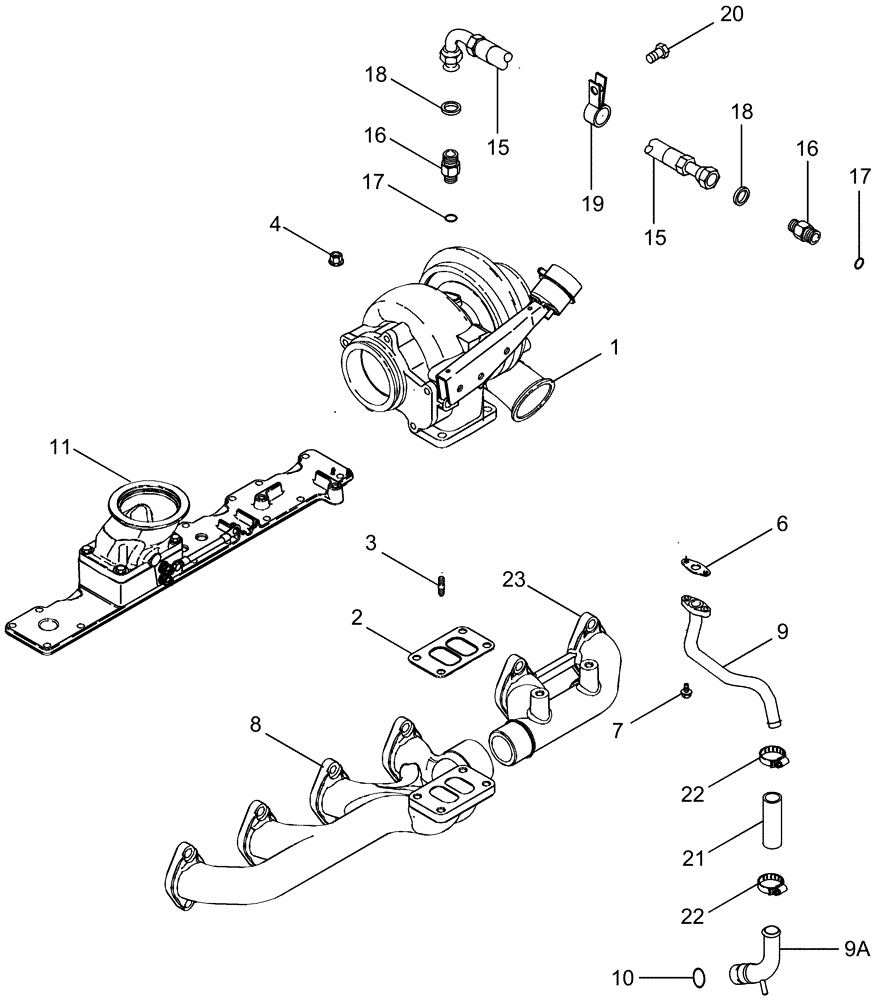

Запчасти Case IH 625 (10.250.01) - TURBOCHARGER SYSTEM (10) - ENGINE

1

84269951

TURBOCHARGER

1шт.

1

84269951R

REMAN-TURBOCHARGER

Cummins - Turbocharger

1шт.

1

84269951C

CORE-TURBOCHARGER

Return Number, TURBOCHARGER

1шт.

2

J901356

GASKET,0.5mm Thk

Turbo Mount

1шт.

3

J818823

STUD

M10 x 1.5

4шт.

4

J818824

FLANGE NUT

M10

4шт.

6

J937706

GASKET,0.79mm Thk

Oil Drain

1шт.

7

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

8

87344862

EXHAUST MANIFOLD

1шт.

9

86993028

TUBE,0.875" OD

Turbo Drain at Turbo

1шт.

9a

J931973

TUBE,0.875" OD

Turbo Drain

1шт.

10

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

11

REF

INSTRUCTION

COVER INTAKE

1шт.

15

87345099

FLEXIBLE HOSE,9.53mm ID x 385mm L, SAE 100R14

533 mm (21")

1шт.

16

J922789

HYD CONNECTOR

Inc. 17

2шт.

17

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

19

87434675

CLAMP,10.16mm ID, 10.41mm Bolt Hole, P Type

1шт.

20

615-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

21

J286499

HOSE

76 mm (3"), Turbo Drain Tube

1шт.

22

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

2шт.

23

87344861

EXHAUST MANIFOLD

1шт.
