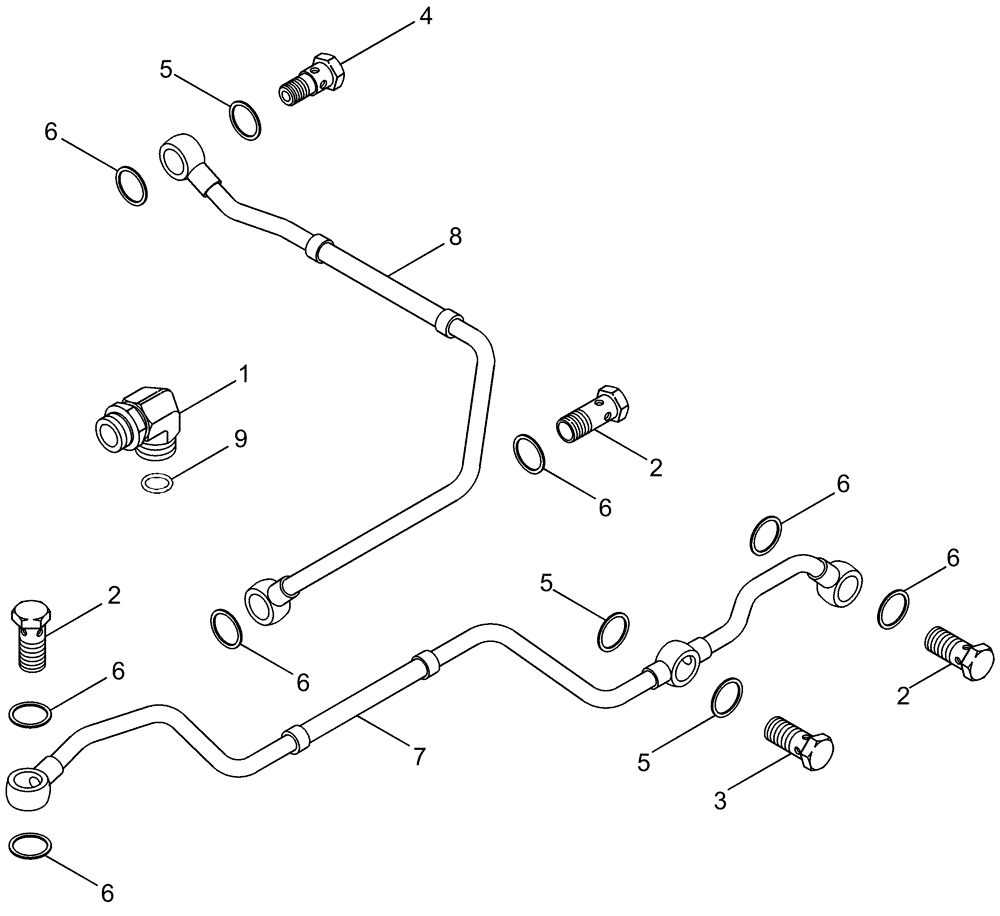

Запчасти Case IH 625 (10.218.03) - FUEL, DRAIN (10) - ENGINE

1

NSS

NOT SOLD SEPARAT

ELBOW, Inc. 9

1шт.

2

J903035

BANJO BOLT

3шт.

3

J924725

BANJO BOLT,M14 x 1.5 x 26mm

1шт.

4

87346562

CHECK VALVE,M12 x 1.5

1шт.

5

87417767

SEALING WASHER,13.67mm ID x 22.35mm OD x 1.27mm Thk

3шт.

6

87346600

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

7шт.

7

84170799

FUEL TUBE

Drain

1шт.

8

87515950

FUEL TUBE,183.6, 92 mm L

Fuel Drain

1шт.

9

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.
