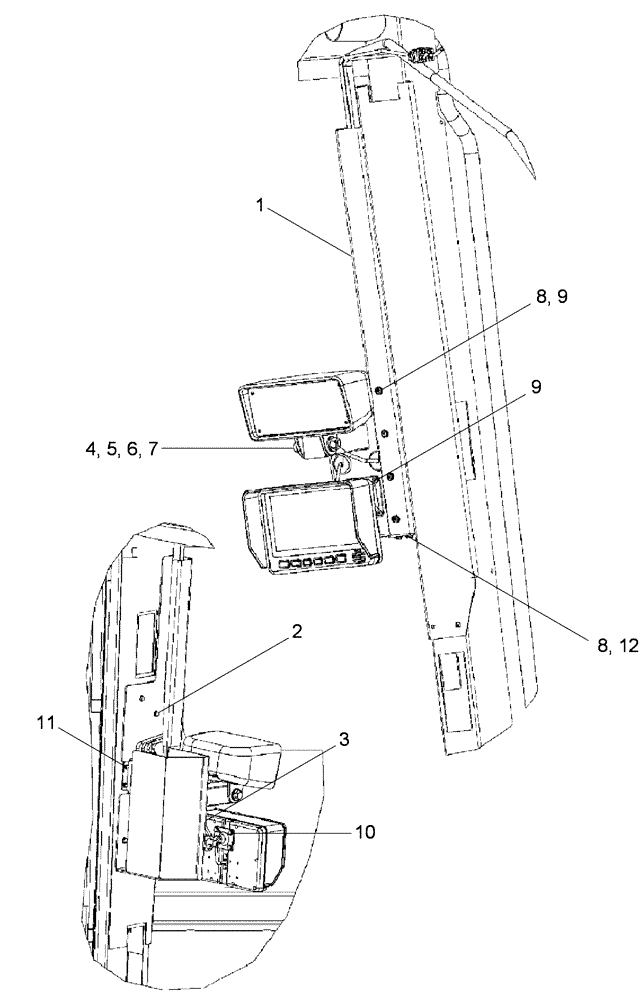

Запчасти Case IH 625 (90.160.05[02]) - MONITOR MOUNTING, MODEL YEAR 2009 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84158810

COVER

A-Post

1шт.

2

280-1658

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

4шт.

3

84158806

MOUNTING PARTS

Cab Monitor

1шт.

4

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

3шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

6

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

1шт.

7

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

8

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

9

99997C1

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 3/4"

8шт.

10

280-5458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

4шт.

11

280-1848

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

4шт.

12

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

2шт.
