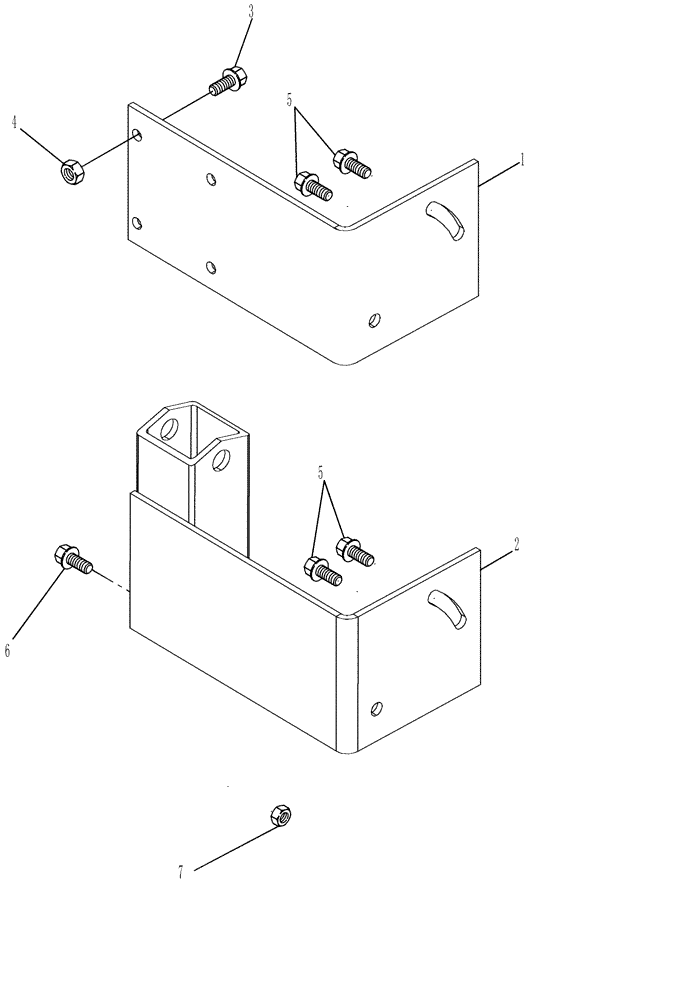

Запчасти Case IH 625 (90.160.05[01]) - MONITOR MOUNTING, MODEL YEAR 2008 AND PRIOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87556893

BRACKET

Video Display

1шт.

2

87633924

BRACKET

Display Mounting

1шт.

3

463-11010

SCREW,Hex Hd, #10-24 x 5/8"

4шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

6шт.

5

280-1658

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

4шт.

6

844-10070

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

1шт.

7

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

8

378244

WASHER,10.5mm ID x 24mm OD x 2mm Thk

(Not shown)

3шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

(not shown)

2шт.

10

280-5458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

(not shown)

4шт.

11

87027222

DISPLAY MATERIAL

(not shown)

1шт.
