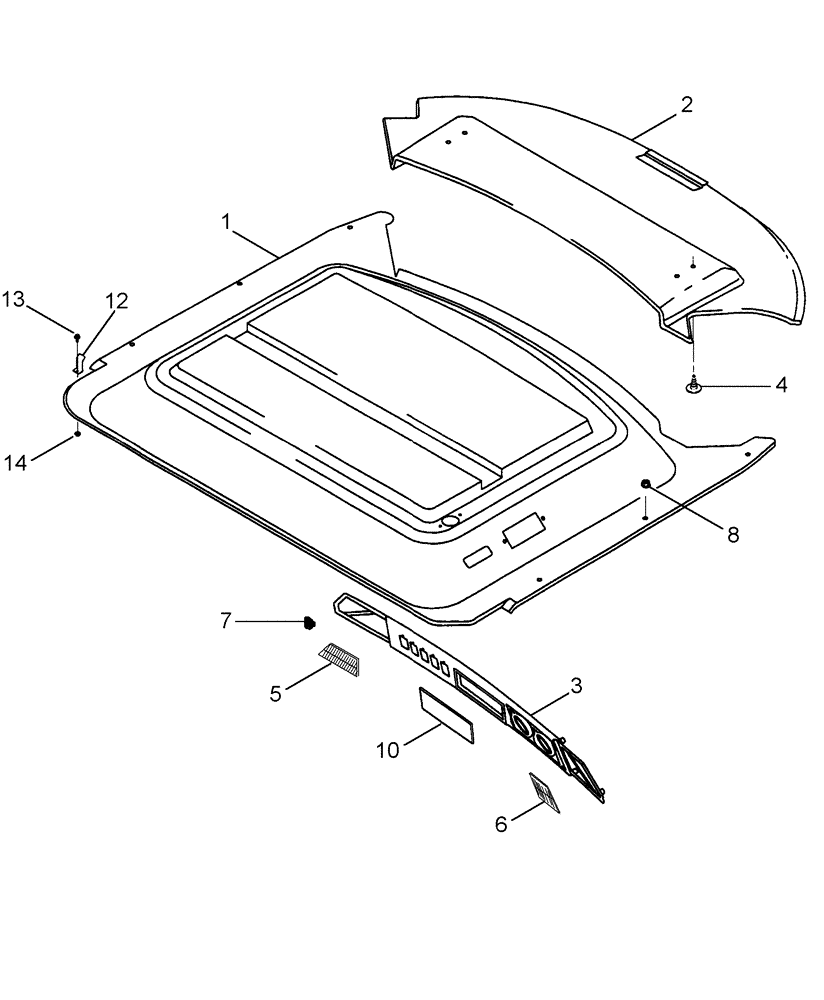

Запчасти Case IH 625 (90.160.02) - CAB HEADLINER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

121570A8

ROOF LINING

Rear, Serial Range: -Y8T013801

1шт.

1

87388118

LINER

Rear, Start Serial: Y8T013801

1шт.

2

121815A3

ROOF LINING

Front, Serial Range: -Y8T013801

1шт.

2

87388120

LINER

Front, Start Serial: Y8T013801

1шт.

3

87309490

PANEL

1шт.

4

260-16524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

12шт.

5

1971229C2

COVER

Speaker, LH

1шт.

6

1971349C2

COVER

Speaker, RH

1шт.

7

97058C1

CLIP

4шт.

8

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

6шт.

10

87105189

COVER

Radio Opening

1шт.

12

87718124

CLIP

Headliner

2шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

6шт.

13

281-53510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

2шт.
