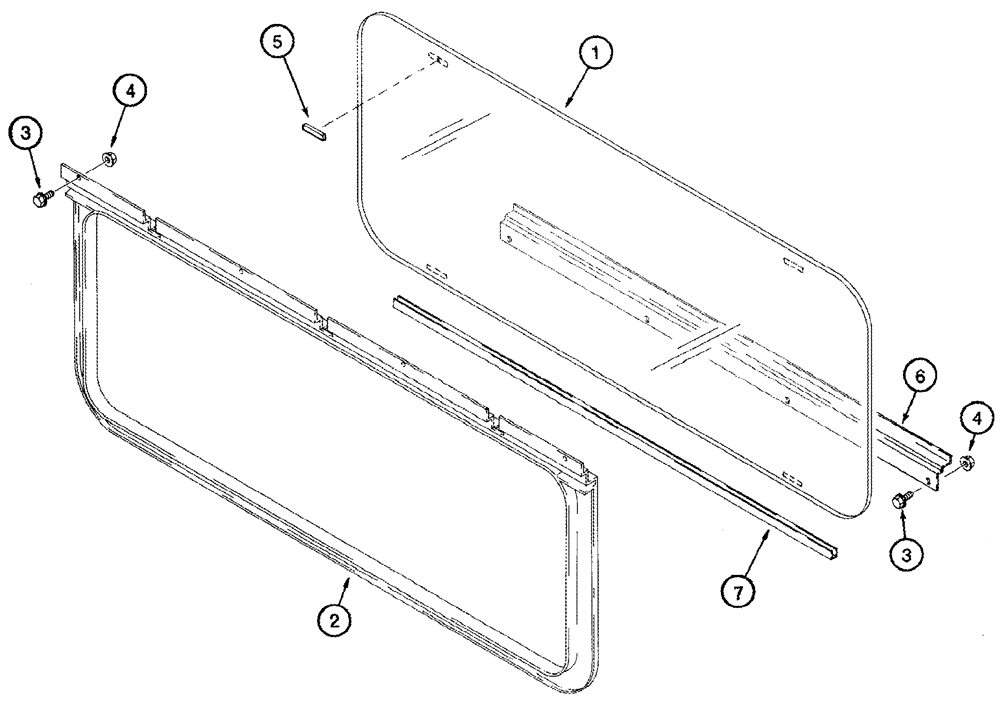

Запчасти Case IH 625 (90.156.01) - CAB REAR WINDOW (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

117725A2

GLASS,CAB

Rear Window

1шт.

2

122722A2

FILLING STRIP

Rear Window, Serial Range: -Y8T013801

1шт.

2

87714844

FOAM INSULATION

Rear Window, Start Serial: Y8T013801

1шт.

3

117067A1

SELF-TAP SCREW,Pan Hd, #10-24 x 3/4"

4шт.

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

4шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

5

97268C1

SPACER

4шт.

6

117726A1

SUPPORT

Window Frame

1шт.

7

118185A1

PROTECTOR

Trim, 1000 mm (39-3/8"), Cut From 2-6789T1

1шт.
