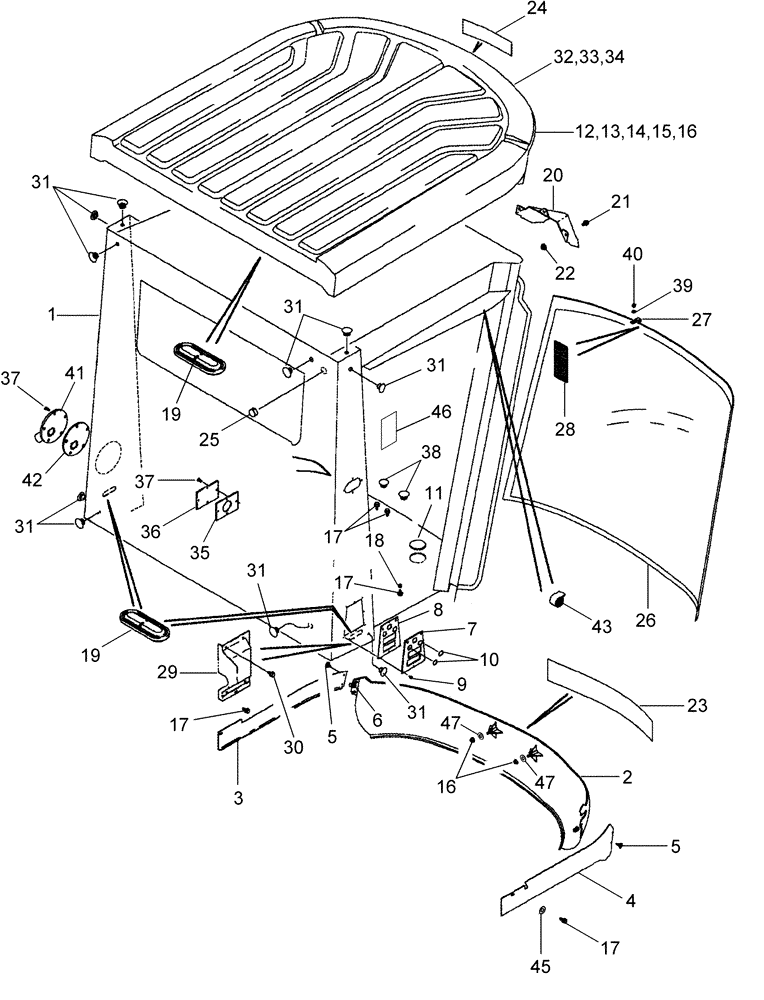

Запчасти Case IH 625 (90.150.01) - CAB FRAME AND WINDSHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

87709073

CAB

Complete

1шт.

87597470

CAB

Assembly Completing

1шт.

1

87314497

CAB

1шт.

2

179241A1

COVER

Cab, Front

1шт.

3

139597A2

COVER

Cab, LH

1шт.

4

178243A2

SKIRT

Cab, Right Hand

1шт.

5

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

6шт.

6

60-6708T1

NUT

4шт.

7

87459639

LARGE PLATE

PLATE, LARGE Electrical Access

1шт.

8

87459640

GASKET

1шт.

9

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

16шт.

10

224636A1

DECAL

Cover, Bulkhead Connector

2шт.

11

353-593

PLUG

2-1/2 ID

4шт.

12

122819A2

ROOF

Inc. 33, 34

1шт.

13

87557775

EMBLEM

CASE IH Logo

1шт.

14

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

15

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

2шт.

16

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

17

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

13шт.

18

231-51409

SERRATED NUT,Flg, USR, #10-24

11шт.

19

137293A1

PLUG

Cab Roof and Floor

4шт.

20

141758A3

COVER

1шт.

21

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

3шт.

22

425-104

NUT,1/4"-20, Cl 5

3шт.

23

1987145C1

DECAL

Cotton Express

1шт.

24

232846A2

COVER

1шт.

25

353-411

PLUG,Dome, 1.000" hole, Nylon

Antenna Hole

1шт.

26

116809A5

WINDSHIELD

Glass

1шт.

27

117707A3

CLAMP

4шт.

28

97268C1

SPACER

20шт.

29

417374A1

COVER

1шт.

30

282-17512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

6шт.

31

353-402

PLUG,Dome, .375" hole, Nylon

Exterior Trim

10шт.

32

131-839

SPRING NUT,U, #10-16, Panel type

16шт.

33

230484A1

NUT

M8 - 1, 25

4шт.

34

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

4шт.

35

247058A1

GASKET,5mm Thk

1шт.

36

252044A1

LARGE PLATE

PLATE, LARGE Cab Frame, Outlet

1шт.

37

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

6шт.

38

353-400

PLUG,Dome, .250" hole, Nylon

Cab Exterior

4шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

6шт.

40

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

41

253213A1

COVER

1шт.

42

252676A1

GASKET,5mm Thk

1шт.

43

251548A1

TAPE

63,5 mm (2-1/2"), Cut From 251550A1

5шт.

44

447209A1

DECAL

76.2 mm (3") Diameter, (Not Shown)

1шт.

45

195-81026

WASHER,.266" x 13/16" x .079"

2шт.

46

87379592

DECAL

Front Floor Plate

1шт.

47

495-21038

WASHER,5/16"

4шт.
