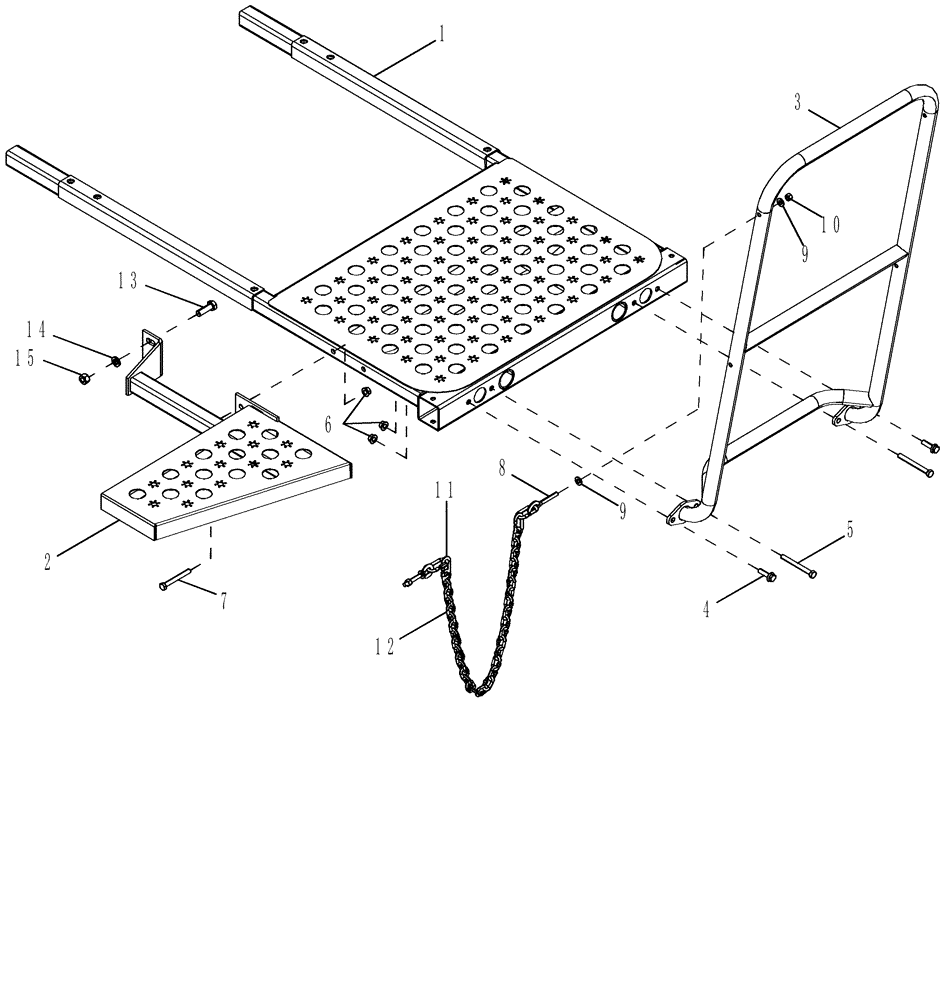

Запчасти Case IH 625 (90.118.06[02]) - SERVICE DECK PLATFORM, MODEL YEAR 2008 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87683622

PLATFORM ASSY.

Water Tank Support Extension

1шт.

2

87573696

STEP

Service Platform

1шт.

3

445286A1

GRAB RAIL

1шт.

4

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

5

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

6

231-5146

FLANGE NUT,3/8"-16

6шт.

7

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

8

449894A1

EYEBOLT

4шт.

9

495-11034

WASHER,5/16", SAE

8шт.

10

231-4215

LOCK NUT,5/16"-18, GB

4шт.

11

326376A2

LINK

Ladder Chain

8шт.

12

87109887

CHAIN,807.32mm L

Ladder Gate

2шт.

13

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

14

492-11050

LOCK WASHER,1/2"

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

1шт.
