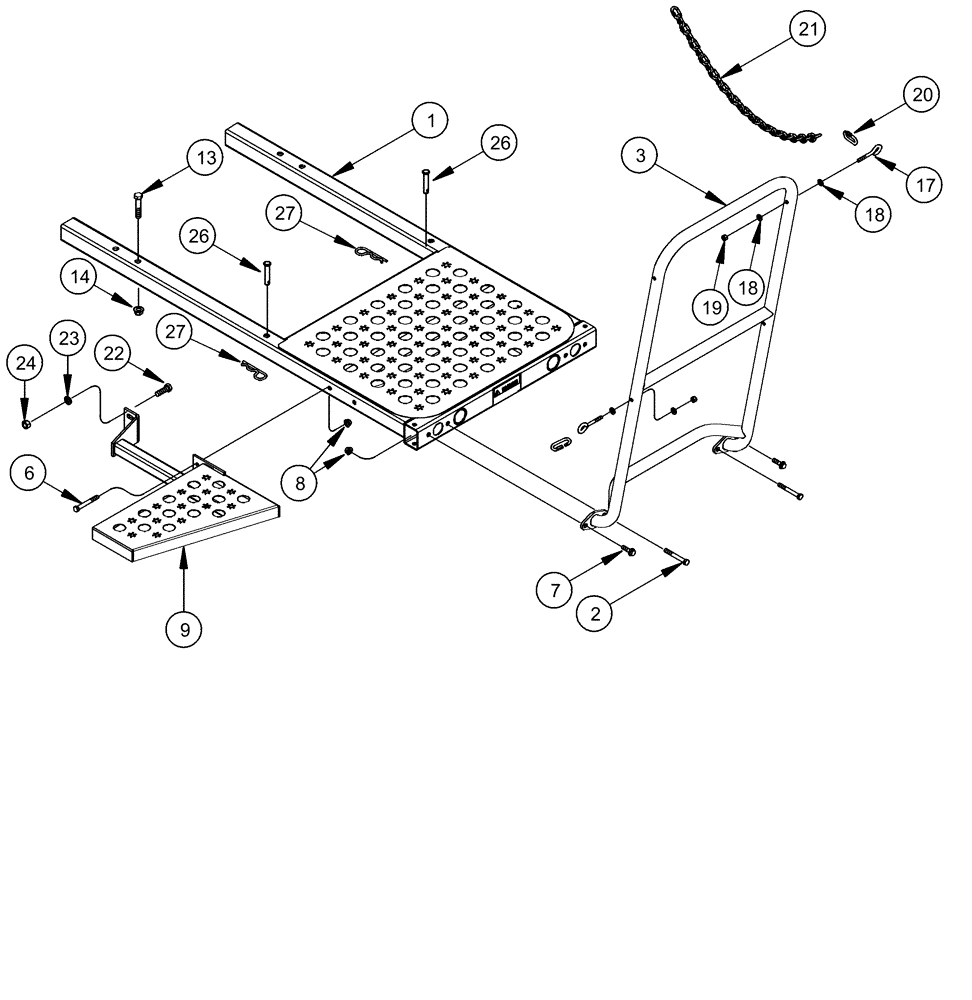

Запчасти Case IH 625 (90.118.06[01]) - SERVICE DECK PLATFORM, MODEL YEAR 2007 AND PRIOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87683622

PLATFORM ASSY.

Water Tank Support Extension

1шт.

2

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

3

445286A1

GRAB RAIL

4 Row Wide, 5 Row Narrow

1шт.

6

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

7

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

8

231-5146

FLANGE NUT,3/8"-16

6шт.

9

87573696

STEP

1шт.

13

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

5 Row

4шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

5 Row

4шт.

17

449894A1

EYEBOLT

8шт.

18

495-11034

WASHER,5/16", SAE

16шт.

19

231-4215

LOCK NUT,5/16"-18, GB

8шт.

20

326376A2

LINK

Ladder Chain

8шт.

21

87109887

CHAIN,807.32mm L

Service Platform

4шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

23

492-11050

LOCK WASHER,1/2"

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

1шт.

26

439-1848

HEADED PIN,1/2" x 3"

2шт.

27

486830R1

COTTER PIN

2шт.
