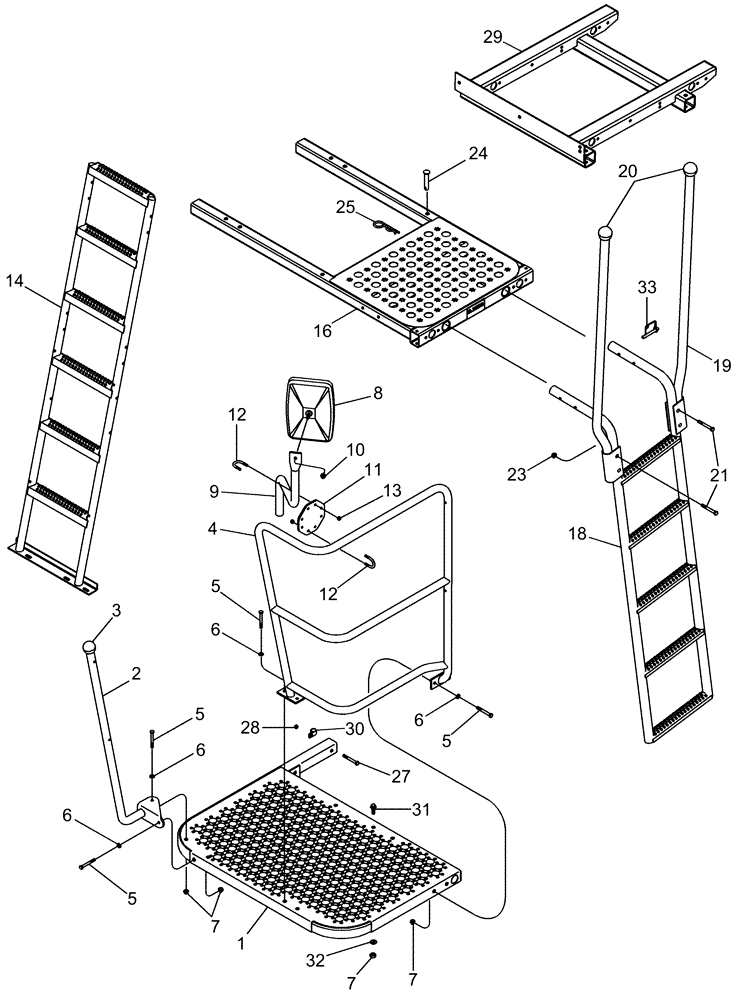

Запчасти Case IH 625 (90.118.05) - CAB AND SERVICE PLATFORMS AND BASKET LADDER, MODEL YEAR 2007 AND PRIOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

NSS

NOT SOLD SEPARAT

CAB PLATFORM ASSEMBLY, Inc. 1 - 13

1шт.

1

87345108

PLATFORM

Cab

1шт.

2

446457A1

POST

Handrail, Inc. 3

1шт.

3

349014A1

KNOB

1шт.

4

440869A1

HANDRAIL

Cab Platform

1шт.

5

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

6шт.

6

495-81129

WASHER,13/32" x 3/4" x .120"

6шт.

7

231-5146

FLANGE NUT,3/8"-16

9шт.

8

1283403C1

MIRROR

Cab, Left Hand

1шт.

9

449402A1

TUBE

Cab Mirror

1шт.

10

122379A1

FLANGE NUT

3/8

1шт.

11

449401A1

PLATE

1шт.

12

140374A1

U-BOLT,5/16" - 18 x 41mm W x 47mm L

4шт.

13

231-4215

LOCK NUT,5/16"-18, GB

8шт.

14

444246A2

LADDER

Basket

1шт.

16

87739412

PACKAGE,SERVICE

Platform

1шт.

18

87534703

LADDER

1шт.

19

87528769

LADDER

Right Hand, Inc. 20

1шт.

19

87528768

LADDER

Left Hand, Inc. 20

1шт.

20

349014A1

KNOB

2шт.

21

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

24

439-1848

HEADED PIN,1/2" x 3"

2шт.

25

486830R1

COTTER PIN

2шт.

26

87528768

LADDER

Inc. 20

1шт.

27

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

3шт.

28

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

29

1545968C4

SUPPORT

Ladder Platform

1шт.

30

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

31

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

3шт.

32

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

3шт.

33

432959A1

LOCK PIN

2шт.
