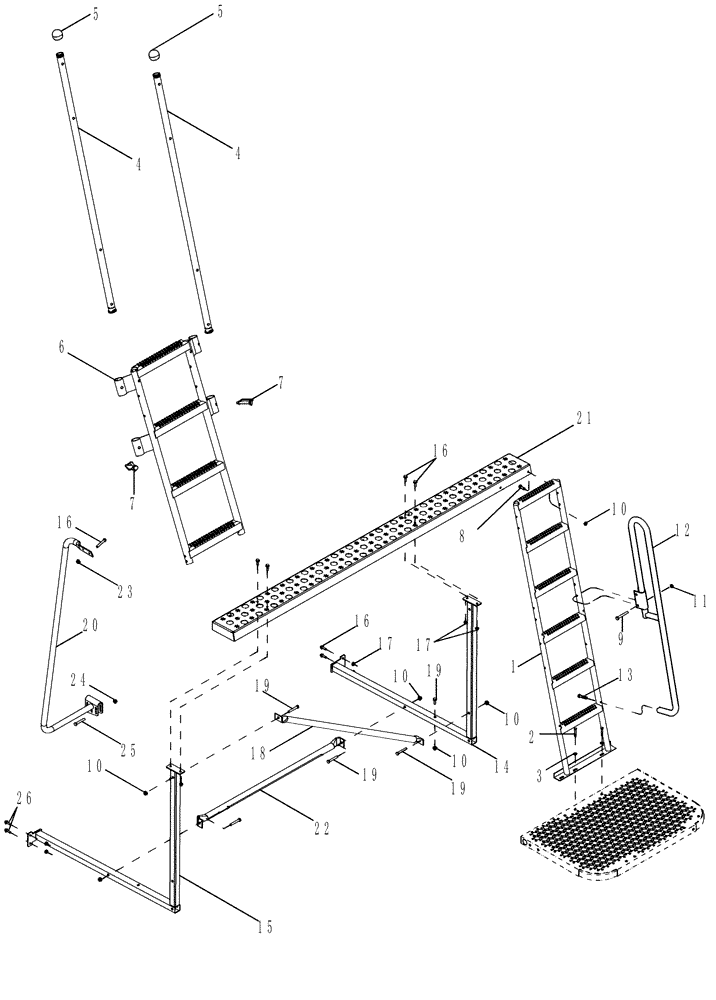

Запчасти Case IH 625 (90.118.03) - STEPS LADDERS - BASKET LID (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

444246A2

LADDER

Basket

1шт.

2

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

3шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

3шт.

4

87344691

HANDRAIL

Inc. 5

2шт.

5

349014A1

KNOB

Handrail

2шт.

6

87661966

LADDER

Basket Lid

1шт.

7

432959A1

LOCK PIN

4шт.

8

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

2шт.

9

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

10

231-5146

FLANGE NUT,3/8"-16

8шт.

11

247780

SERRATED NUT,Flg, USR, 3/8"-16

2шт.

12

176344A1

RAMP

Handle, Basket Ladder

1шт.

13

413-538

BOLT,Hex, 5/16" - 18 x 2-3/8", Gr 5

1шт.

14

87496199

SUPPORT ASSY.

Left Hand Side

1шт.

15

87496200

SUPPORT ASSY.

Right Hand side

1шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

8шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

18

87722925

SUPPORT

Platform Vertical Pipe

1шт.

19

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

6шт.

20

84122238

HANDRAIL

Conveyor Chutes

1шт.

21

87722936

STEP

1шт.

22

87661287

SUPPORT ASSY.

Platform Horizontal Pipe

1шт.

23

231-5345

FLANGE NUT,Flg, 5/16"-18

2шт.

24

231-4115

NUT,5/16"-18, GB

4шт.

25

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

26

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

2шт.
