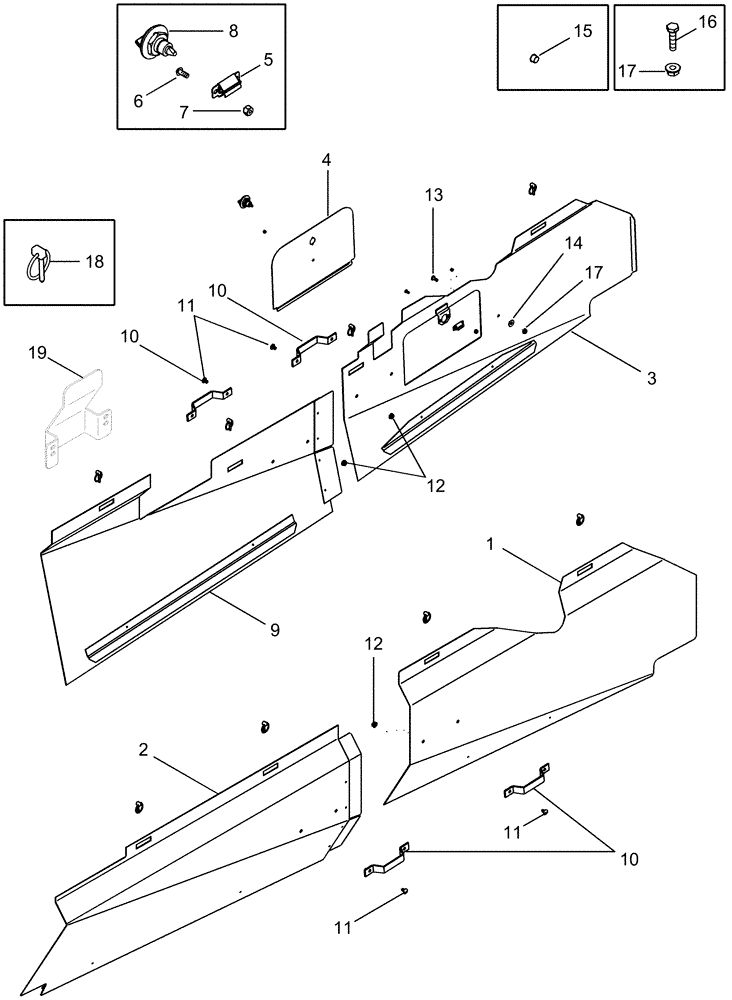

Запчасти Case IH 625 (90.118.01) - SHIELDS, SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

400555A2

SHIELD

Mud, Front Right Hand Side

1шт.

2

400560A2

SHIELD

Rear Right Hand Side

1шт.

3

400558A2

SHIELD

Mud, Front Left Hand Side

1шт.

4

336152A1

DOOR

Access Door, Water System

1шт.

5

292504A1

CASE

1шт.

6

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

2шт.

7

231-24409

NUT,#10-32

2шт.

8

292503A1

LATCH

1шт.

9

87379087

SPLASH SHIELD

Rear Left Hand Side

1шт.

10

160638C2

HANDLE

4шт.

11

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

8шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

13

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

1шт.

14

495-31031

WASHER,0.31" ID x 0.88" OD x 0.07" Thk

1шт.

15

353-424

PLUG,.281" Hole, Nylon

2шт.

16

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

17

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

18

A33497

LINCH PIN,4.76mm OD Pin

8шт.

19

87378356

SPLASH SHIELD

Rear Left Hand Side

1шт.
