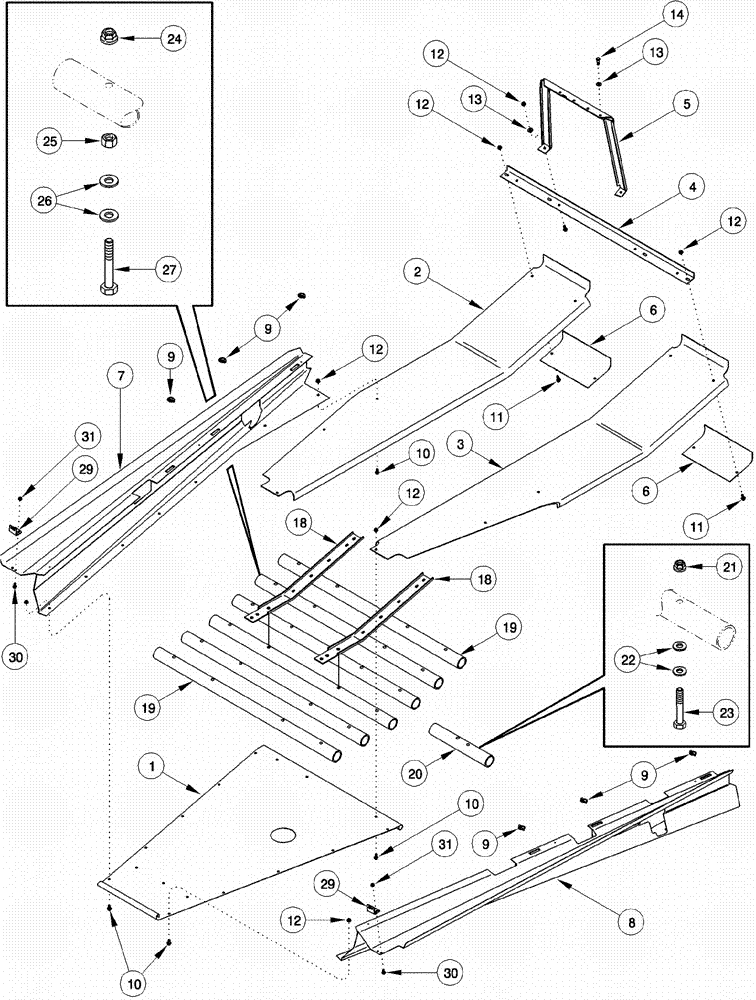

Запчасти Case IH 625 (90.114.01) - PLANT TUNNEL AND BELLY TUBES - ANGLE AND GUIDES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87454577

PLATE

Bottom, Belly Pan

1шт.

2

251899A1

GUIDE

Left Hand

1шт.

6 Row Wide Machines

1шт.

3

251900A1

GUIDE

Right Hand

1шт.

6 Row Wide Machines

1шт.

4

123652A1

ANGLE BAR

Plant Tunnel Guide

2шт.

6 Row Wide Machines

1шт.

5

1546138C4

SUPPORT

1шт.

6

297928A2

SHEET

Plant Tunnel Extension

2шт.

6 Row Wide Machines

1шт.

7

400549A2

SHIELD

Plant Guard, Left Hand

1шт.

8

400552A2

SHIELD

Plant Guard, Right Hand

1шт.

9

A33497

LINCH PIN,4.76mm OD Pin

6шт.

10

409-7612

BOLT,3/8"-16 x 1.09" OAL

16шт.

11

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

12

231-5146

FLANGE NUT,3/8"-16

26шт.

13

495-21044

WASHER,3/8"

3шт.

14

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

18

1546141C2

SUPPORT

Front

2шт.

6 Row Narrow Machines

1шт.

19

123956A1

TUBE,62.71 mm ID, 73.03 mm OD

64 ID x 1434 mm

7шт.

6 Row Narrow Machines

1шт.

20

123957A1

TUBE,52.5 mm ID, 60.33 mm OD, 424 mm Length

Extension

8шт.

6 Row Narrow Machines

1шт.

21

231-5146

FLANGE NUT,3/8"-16

8шт.

6 Row Narrow Machines

1шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

16шт.

6 Row Narrow Machines

1шт.

23

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

8шт.

6 Row Narrow Machines

1шт.

24

231-5146

FLANGE NUT,3/8"-16

14шт.

6 Row Narrow Machines

1шт.

25

425-106

NUT,3/8"-16, Cl 5

14шт.

6 Row Narrow Machines

1шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

28шт.

6 Row Narrow Machines

1шт.

27

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

14шт.

6 Row Narrow Machines

1шт.

29

87414485

ANGLE

Pan Support

2шт.

30

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

6шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

6шт.
