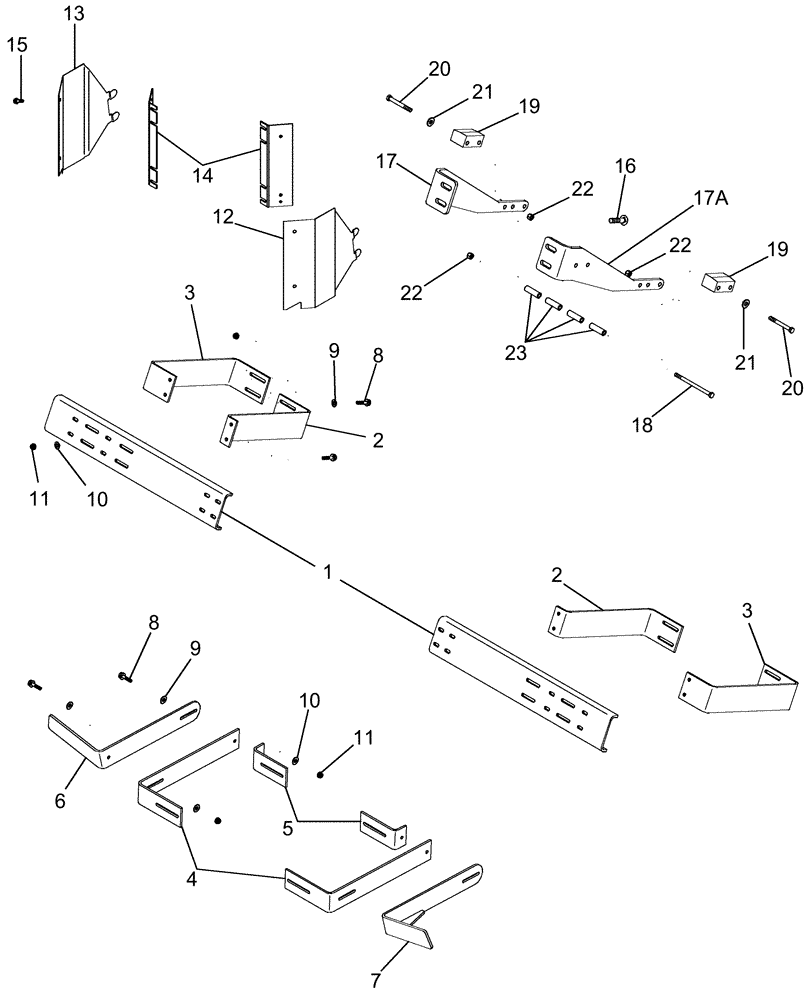

Запчасти Case IH 625 (90.114.01) - MUD SCRAPERS OPTIONAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

REF

INSTRUCTION

ATTACHMENT, Mud Scrapers, Inc. 1 - 11

1шт.

Order From Machinery Price List

1шт.

1

87455822

CHANNEL

Dual Scraper

2шт.

2

435620A1

BAR

Dual Scraper, Inner

2шт.

3

435621A1

BAR

Dual Scraper, Outer

2шт.

4

87455841

ANGLE

Rear

2шт.

5

87455840

ANGLE

Front

2шт.

6

392485A1

BRACKET

Left

1шт.

7

392484A1

BRACKET

Right

1шт.

8

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

36шт.

9

495-11053

WASHER,1/2", SAE

36шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

36шт.

11

425-108

NUT,1/2" - 13, Gr 5

36шт.

12

87382730

SHIELD

Mud

1шт.

13

87382734

SHIELD

Mud

1шт.

14

123970A1

SUPPORT

Shield

2шт.

15

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

16

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

4шт.

17

435622A1

BAR

2шт.

17a

435623A1

BAR

2шт.

18

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

2шт.

19

222680A2

GUIDE

4шт.

20

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

8шт.

21

495-21044

WASHER,3/8"

4шт.

22

232-4146

NUT,3/8"-16, GC

10шт.

23

221338H1

SPACER,10.3mm ID x 15.88mm OD x 50.8mm L

6 RN

4шт.
