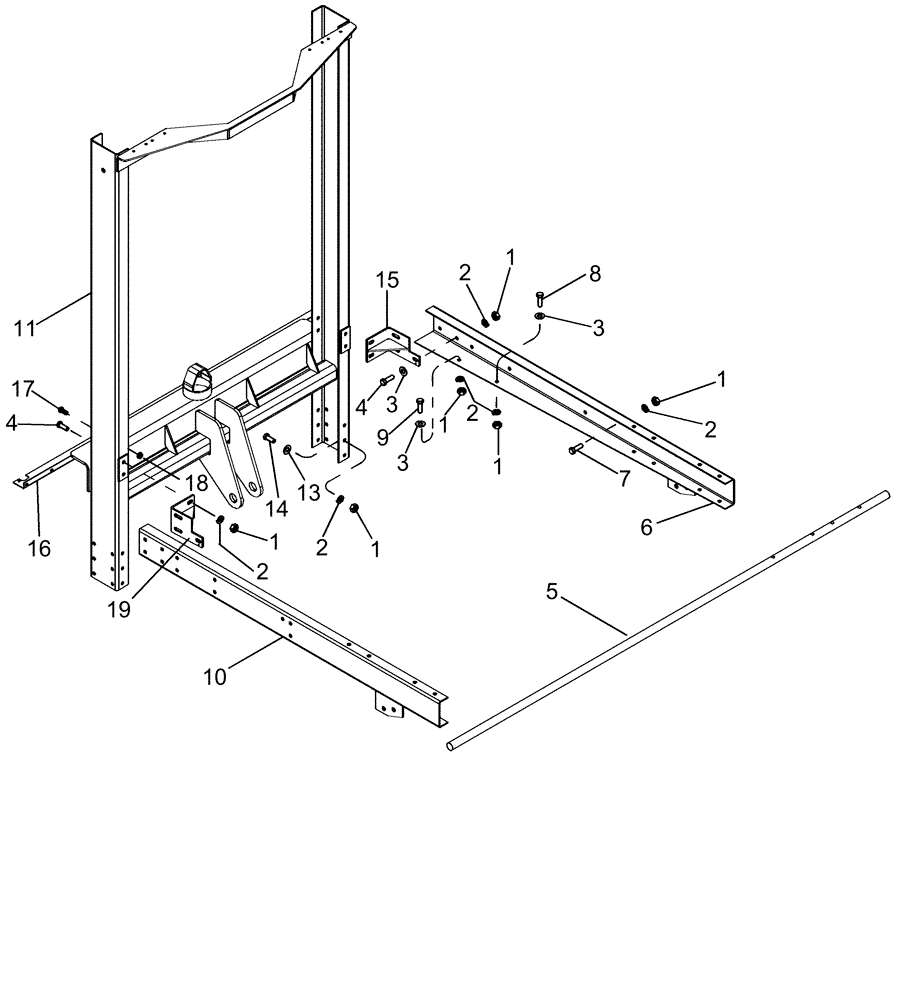

Запчасти Case IH 625 (90.110.01) - SUPPORTS, MAIN FRAME, CAB, PLATFORM, AND MAST (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

425-108

NUT,1/2" - 13, Gr 5

28шт.

2

492-11050

LOCK WASHER,1/2"

40шт.

3

495-11053

WASHER,1/2", SAE

14шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

12шт.

5

451485A1

BAR

Platform Cab, Left Hand Inner

1шт.

6

139132A3

CHANNEL

Cab Support, Left Hand

1шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

10шт.

9

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

10

139135A3

CHANNEL

Cab Support, Right Hand

1шт.

11

87579752

MAST ASSEMBLY

Front, Tilt Support

1шт.

12

429-108

NUT,1/2"-13, G8

12шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

12шт.

14

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

12шт.

15

87683614

SUPPORT ASSY.

Left Mast Bracket

1шт.

16

87733093

ANGLE

Hood Sheet

1шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

19

87683617

SUPPORT ASSY.

Right Mast Bracket

1шт.
