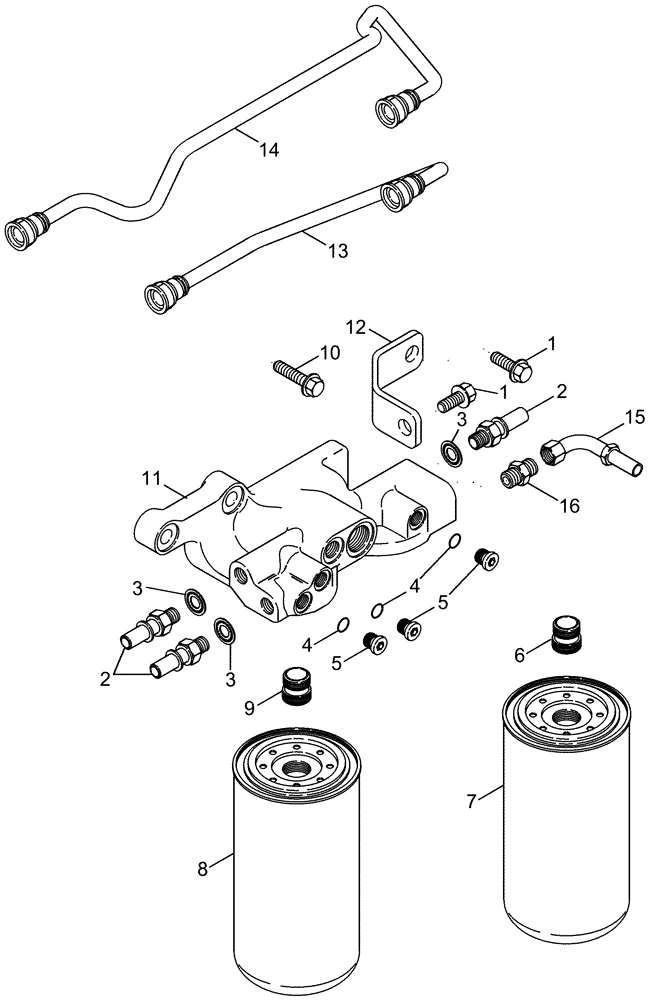

Запчасти Case IH 625 (10.206.01[02]) - FUEL FILTER AND CONNECTIONS (10) - ENGINE

1

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

2

87349484

ADAPTER

3шт.

3

87346600

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

3шт.

4

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

3шт.

5

J678923

PLUG,M10 x 1

10 mm

3шт.

6

84131590

ADAPTER

1шт.

7

87356193

FUEL FILTER

1шт.

8

87360565

FUEL FILTER

1шт.

9

87349753

ADAPTER

1шт.

10

87349727

BOLT

2шт.

11

NSS

NOT SOLD SEPARAT

HEAD,Filter

1шт.

12

87356110

BRACKET

1шт.

13

87341273

FUEL TUBE,0.63" OD

Fuel Supply

1шт.

14

87341277

FUEL TUBE

Fuel Supply

1шт.

326380A1

ELBOW

(Not Shown)

1шт.

15

87535390

FITTING

1шт.

16

BN444008

FITTING

1шт.
