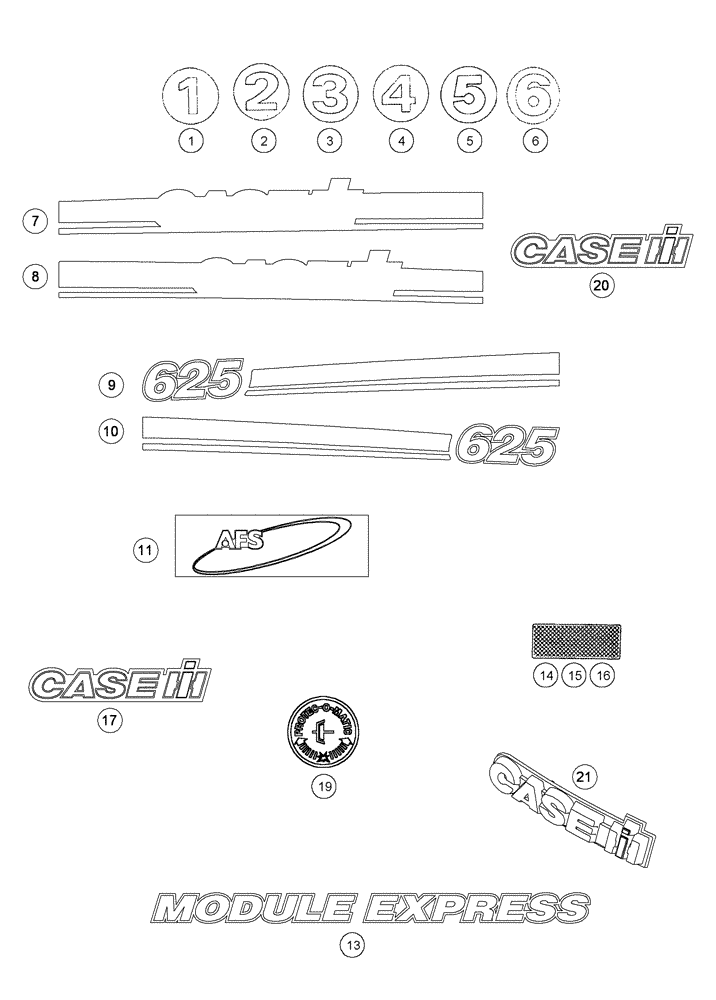

Запчасти Case IH 625 (90.108.01) - DECALS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

1288934C1

DECAL

Number '1' Drum

1шт.

2

1288935C1

DECAL

Number '2' Drum

1шт.

3

1288936C1

DECAL

Number '3' Drum

1шт.

4

1288937C1

DECAL

Number '4' Drum

1шт.

5

1545960C1

DECAL

Number '5' Drum

1шт.

6

316737A1

DECAL

Number '6' Drum

1шт.

7

87651793

DECAL

Stripe, Left Hand Rear

1шт.

8

87651794

DECAL

Stripe, Right Hand Rear

1шт.

9

87651795

DECAL

Stripe, Left Hand Front

1шт.

10

87651796

DECAL

Stripe, Right Hand Front

1шт.

11

87107364

DECAL

AFS Overlay

2шт.

13

87563619

DECAL

Module Express

1шт.

14

311864A1

REFLECTOR

Amber

2шт.

15

311863A1

REFLECTOR

Red

2шт.

16

311865A1

REFLECTOR

Orange

2шт.

17

87557439

DECAL,56mm x 233mm

Emblem, Drum Number '1' and '6' or '4'

2шт.

19

1545966C1

DECAL

Protec-O-Matic

1шт.

20

87556588

DECAL

CASE IH Logo

3шт.

21

87557775

EMBLEM

CASE IH Logo

1шт.

22

87559021

DECAL

Logo Base

1шт.

23

87574740

PLATE

CASE IH Decal Mounting

1шт.

24

375676A1

RIVET,Pop, 6.42mm OD x 24.64mm L

6шт.
