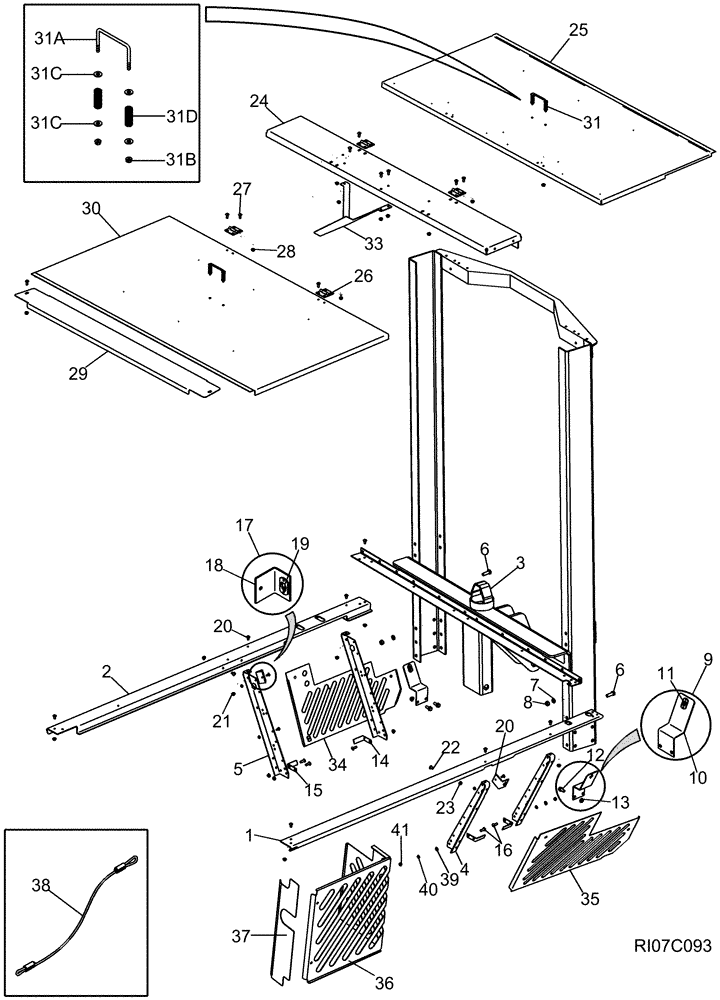

Запчасти Case IH 625 (90.102.02) - FRONT DECK - ACCESS DOORS AND FAN SHIELDS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

298059A1

SUPPORT

Right Hand

1шт.

2

412710A3

SUPPORT

Left Hand

1шт.

3

87579752

MAST ASSEMBLY

Front, Tilt Support Assembly

1шт.

4

87319430

BRACKET

Screen Support, Right Hand

2шт.

5

1345113C2

SUPPORT

Screen Support, Left Hand

2шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

6шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

8

425-108

NUT,1/2" - 13, Gr 5

6шт.

9

84276122

BRACKET

Fan Shield, Lower Front, Inc. 10, 11

2шт.

10

414873A1

BRACKET

1шт.

11

1326406C1

PEDESTAL

Shield Fastener

1шт.

12

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

13

231-5146

FLANGE NUT,3/8"-16

4шт.

14

177559A1

SUPPORT

Fan Shield, Front Left Hand Side, Rear Right Hand Side

2шт.

15

177560A1

SUPPORT

Fan Shield, Front Left Hand Side, Rear Right Hand Side

2шт.

16

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

8шт.

17

414874A1

BRACKET

Fan Shield, Upper Rear, Inc. 18, 19

2шт.

18

414875A1

BRACKET

1шт.

19

1326406C1

PEDESTAL

1шт.

20

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

6шт.

21

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

1шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

24

323826A1

CHANNEL

Hinge Support

1шт.

25

372153A1

DOOR ASSY.

Fan Access

1шт.

26

215720C1

HINGE

4шт.

27

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

16шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

29

302639A1

CHANNEL

Hinge Support

1шт.

30

87737618

PANEL ASSY.

Radiator Access

1шт.

31

87408511

HANDLE

Inc. 31A - 31D

2шт.

31a

87408512

HANDLE

1шт.

31b

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

31c

495-21031

WASHER,1/4"

4шт.

31d

87408513

SPRING

2шт.

33

372170A1

DEFLECTOR

Trash

1шт.

34

411837A3

PLATE ASSY.

Fan Shield, Left Hand

1шт.

35

411838A3

PLATE ASSY.

Fan Shield, Right Hand

1шт.

36

87434313

SHIELD

Fan, Right Hand

1шт.

37

394803A3

PANEL

Heat

1шт.

38

126396A1

CABLE

Shield Anchor

1шт.

39

495-11034

WASHER,5/16", SAE

8шт.

40

492-11031

LOCK WASHER,5/16"

8шт.

41

425-105

NUT,5/16"-18, G5

8шт.
