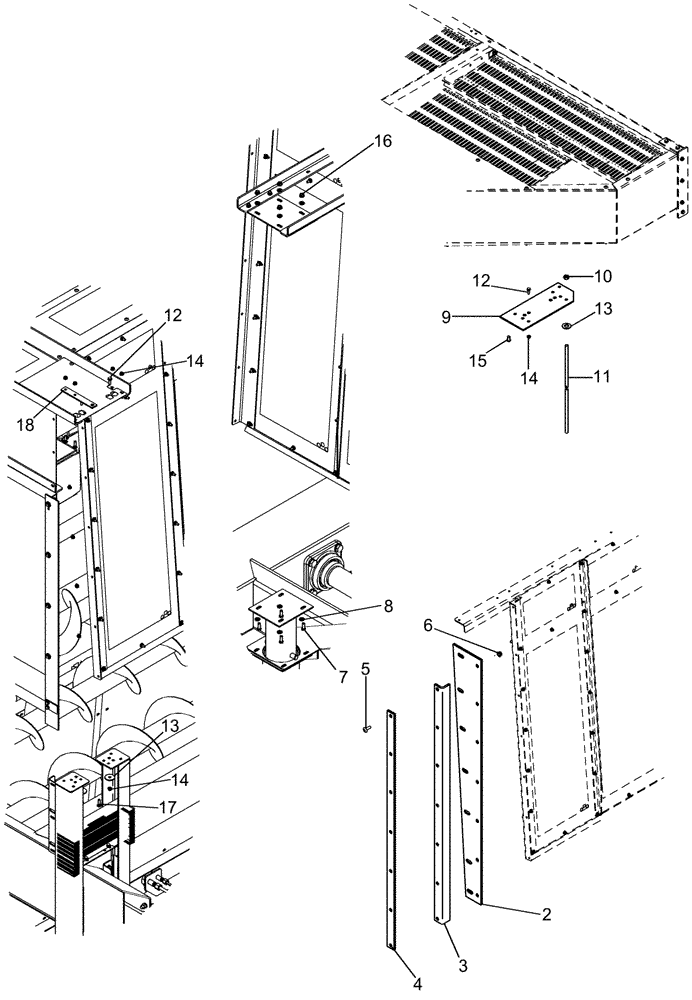

Запчасти Case IH 625 (80.200.21) - MODULE, LID SUPPORT (80) - CROP STORAGE/UNLOADING

1

NSS

NOT SOLD SEPARAT

LID PACKAGER

1шт.

2

87452067

PLATE ASSY.

Upper Filler

2шт.

3

87456972

FLAP

Bellows Filler, Rear

2шт.

4

87456971

PLATE ASSY.

Filler Backing, Bellows

2шт.

5

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

24шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

24шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

16шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

16шт.

9

87387189

COVER

Front Upper Bellows

2шт.

10

231-4138

LOCK NUT,1/2"-13, GB

12шт.

11

87450092

ROD

Bellows Guide, Front

6шт.

12

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

8шт.

13

495-81145

WASHER,13/32" x 1 3/4" x .120"

8шт.

14

231-5345

FLANGE NUT,Flg, 5/16"-18

24шт.

15

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

16

231-5146

FLANGE NUT,3/8"-16

16шт.

17

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

8шт.

18

87359017

PLATE ASSY.

Light Mount

2шт.
