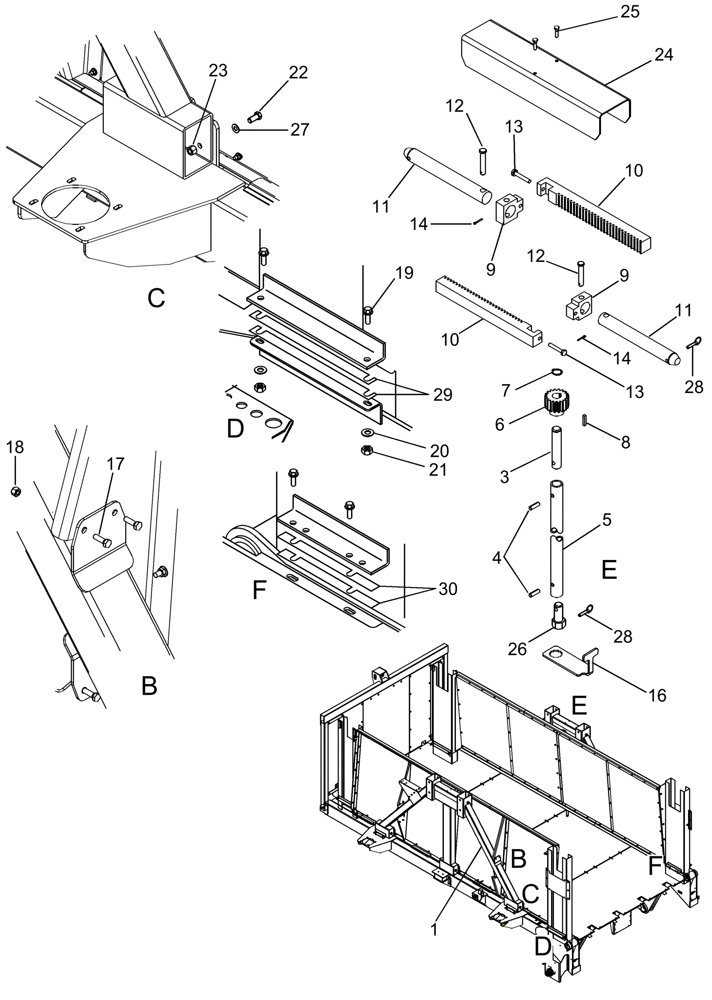

Запчасти Case IH 625 (80.200.20) - COMPACTOR SUPPORT, LOWER (80) - CROP STORAGE/UNLOADING

1

87588075

SUPPORT

Compactor, Lower

2шт.

3

87360511

SHAFT

Rack and Pinion

1шт.

4

88005

LOCK PIN,5/16" x 1", Slotted

Rack and Pinion Shaft

4шт.

5

87360513

TUBE,19.5 mm ID x 25.40 mm OD x 1545 mm L

Rack and Pinion Shaft

2шт.

6

87459844

LATCH

Frame

2шт.

7

129164

SNAP RING,#75, Ext

Frame Latch Gear

2шт.

8

Q5024

KEY,3/16" Sq x 1", Par

Frame Latch Gear

2шт.

9

87459846

LATCH

Frame

4шт.

10

87459847

LATCH

Frame

4шт.

11

87609255

LATCH ASSY.

Frame

4шт.

12

427-6200

CLEVIS PIN,3/8" x 2", HDN

4шт.

13

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

4шт.

14

432-68

COTTER PIN,3/32" x 1/2"

4шт.

16

87622023

STRAP

2шт.

17

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

32шт.

18

231-4215

LOCK NUT,5/16"-18, GB

16шт.

19

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

16шт.

20

495-81124

WASHER,0.38" ID x 0.75" OD x 0.06" Thk

16шт.

21

87039402

NUT,3/8"-16, GB

16шт.

22

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

18шт.

23

231-1448

NUT,1/2"-13, GB

18шт.

24

87608617

COVER

Rack and Pinion

2шт.

25

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

26

87623706

PIN,18.65mm OD x 60mm L

2шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

18шт.

28

A33497

LINCH PIN,4.76mm OD Pin

5шт.

29

87677602

MANIFOLD

Outside

4шт.

30

87677601

MANIFOLD

Inside

4шт.
