Запчасти Case IH 625 (80.200.19) - MODULE DOOR, MOTOR DRIVE (80) - CROP STORAGE/UNLOADING

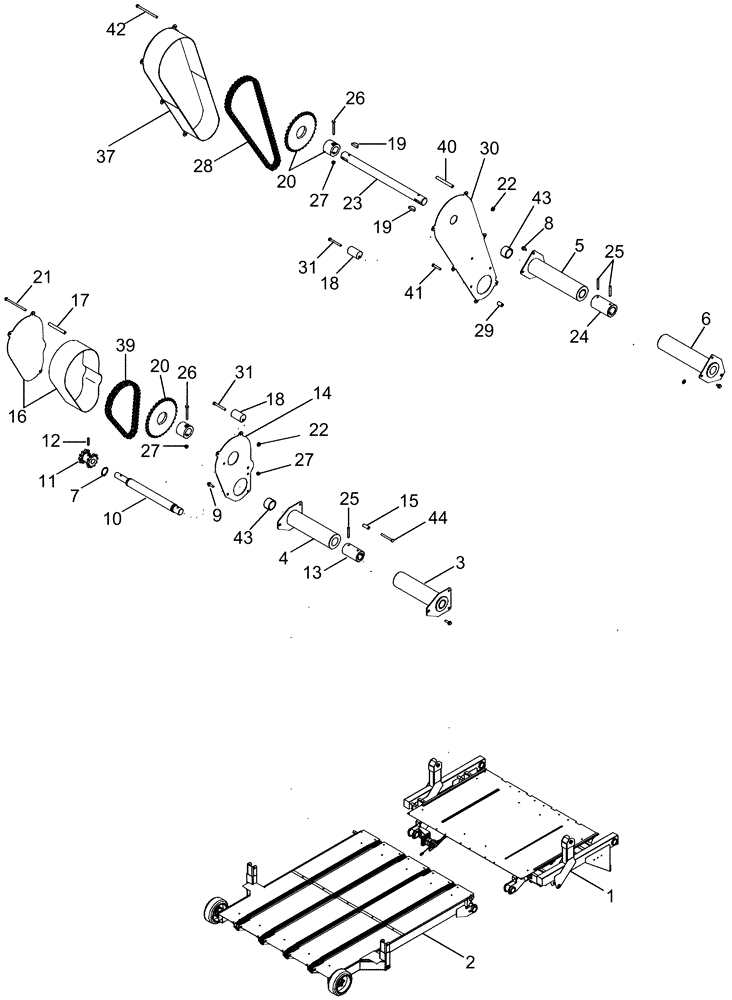

Схема запчастей Case IH 625 - (80.200.19) - MODULE DOOR, MOTOR DRIVE (80) - CROP STORAGE/UNLOADING
12
5
43
4
25
10
27
24
19
41
3
30
19
16
20
40
18
21
37
15
17
23
22
1
28
14
26
44
26
22
29
43
8
31
39
9
11
2
27
27
31
20
18
25
7
6
13
42

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

DOOR, Primary, Complete

1шт.

2

NSS

NOT SOLD SEPARAT

DOOR, Secondary, Complete

1шт.

3

87424807

PIVOT ASSY.

Door, Right Hand

1шт.

4

87452620

PIN ASSY.

Secondary to Primary, Left Hand, Inc. 43

1шт.

5

87452619

PIN ASSY.

Primary to Floor, Left Hand, Inc. 43

1шт.

6

87450280

PIN

Door Pivot, Right Hand

1шт.

7

103-11150

SNAP RING,#150, Ext

2шт.

8

409-768

BOLT,Hex Flg, 3/8" - 16 x 1/2", Spcl

2шт.

9

121-231

SERRATED BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

10

87445462

DRIVE SHAFT

Double Chain Drive

1шт.

11

87445452

DRIVING SPROCKET

Drive Motor

1шт.

12

87947

LOCK PIN,7.94mm OD x 38.1mm L, Slotted

1шт.

13

87445666

COUPLING

Motor Drive Chain

1шт.

14

87329232

PLATE ASSY.

Chain Cover, Back

1шт.

15

87329237

SPACER

Chain Cover, Back

1шт.

16

87329233

COVER ASSY

Chain, Outer

1шт.

17

87329238

SPACER

Chain Cover, Back

3шт.

18

87329718

IDLER

Door Chain

2шт.

19

126-140

WOODRUFF KEY,#G, 3/8" x 1 1/2", HT

4шт.

20

87448672

SPROCKET ASSY.

Basket Unloader Drive

2шт.

21

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

3шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

23

87456062

SHAFT

Unloader, Floor, Short

1шт.

24

87456061

COUPLING

Unloader Shaft, Floor

1шт.

25

38-12036

LOCK PIN,5/16" x 2 1/4", Slotted

3шт.

26

326-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

2шт.

27

231-1445

NUT,5/16"-18, GB

4шт.

28

87445791

CHAIN (AG)

Outside Main

1шт.

29

493933R1

SPACER,5/8" Tube x 1 7/16"

3шт.

30

87606385

GUARD

Chain

1шт.

31

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

37

87606381

GUARD

Floor Chain

1шт.

39

87445607

CHAIN,Assembly, Outside

Outside

1шт.

40

27634R1

SPACER,1/4" Pipe x 3"

6шт.

41

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

3шт.

42

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

6шт.

43

87324085

BEARING LINER,38.278mm ID x 44.539mm OD x 31.80mm

Conveyor Shaft

4шт.

44

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Chain Cover Spacer

1шт.

Выбрано товаров: 38
