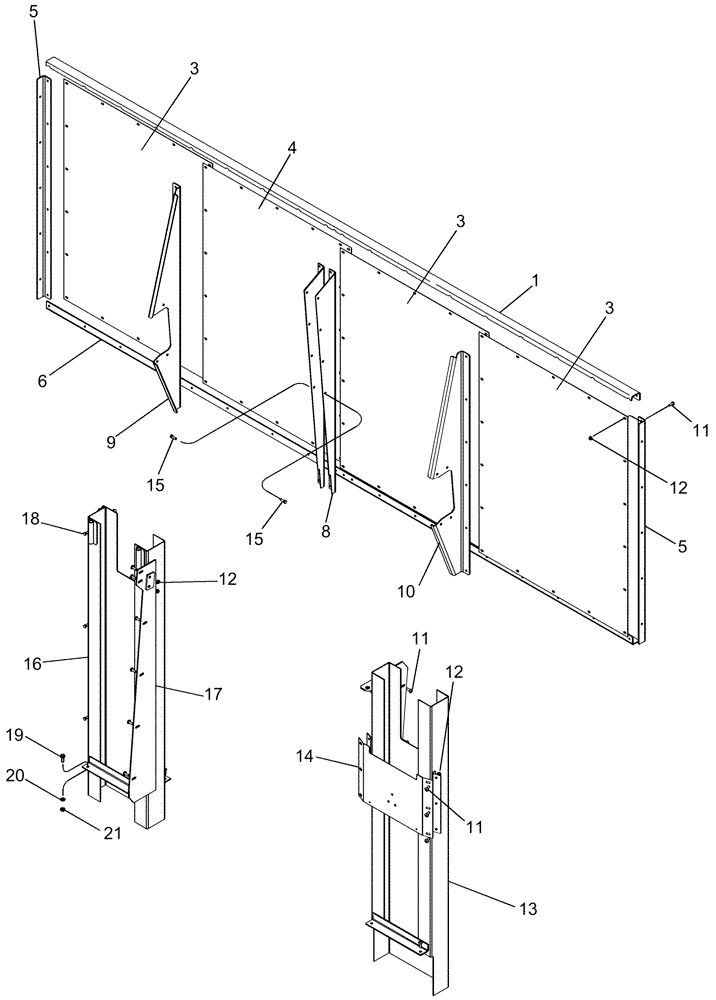

Запчасти Case IH 625 (80.200.13) - MODULE, RIGHT HAND WALL (80) - CROP STORAGE/UNLOADING

1

87560457

CHANNEL

Top

1шт.

3

87326891

SHEET ASSY.

Side Wall

3шт.

4

87517022

SHEET ASSY.

Side Wall

1шт.

5

87363386

ANGLE

Side Wall Vertical

2шт.

6

87560458

ANGLE

Bottom

1шт.

8

87520492

ANGLE

Vertical, Center

2шт.

9

87379931

BRACE

Lower Wall, Front

1шт.

10

87379873

BRACE

Lower Wall, Front

1шт.

11

450-73116

SERRATED SCREW,5/16 x 1" SPL ZND

64шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

75шт.

13

87591676

CHANNEL

Wall, Rear

1шт.

14

87518991

PLATE, SUPPORT

Rear Bellows Guide

1шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

16

87445457

CHANNEL

Wall, Front

1шт.

17

87332545

SUPPORT

Wall Attachment

2шт.

18

86512168

BOLT,Hex Serr Flg, 5/16" - 18 x 1"

3шт.

19

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

20

495-81124

WASHER,0.38" ID x 0.75" OD x 0.06" Thk

8шт.

21

87039402

NUT,3/8"-16, GB

8шт.
