Запчасти Case IH 625 (80.200.11[01]) - MODULE, COMPACTOR, MODEL YEAR 2008 AND PRIOR (80) - CROP STORAGE/UNLOADING

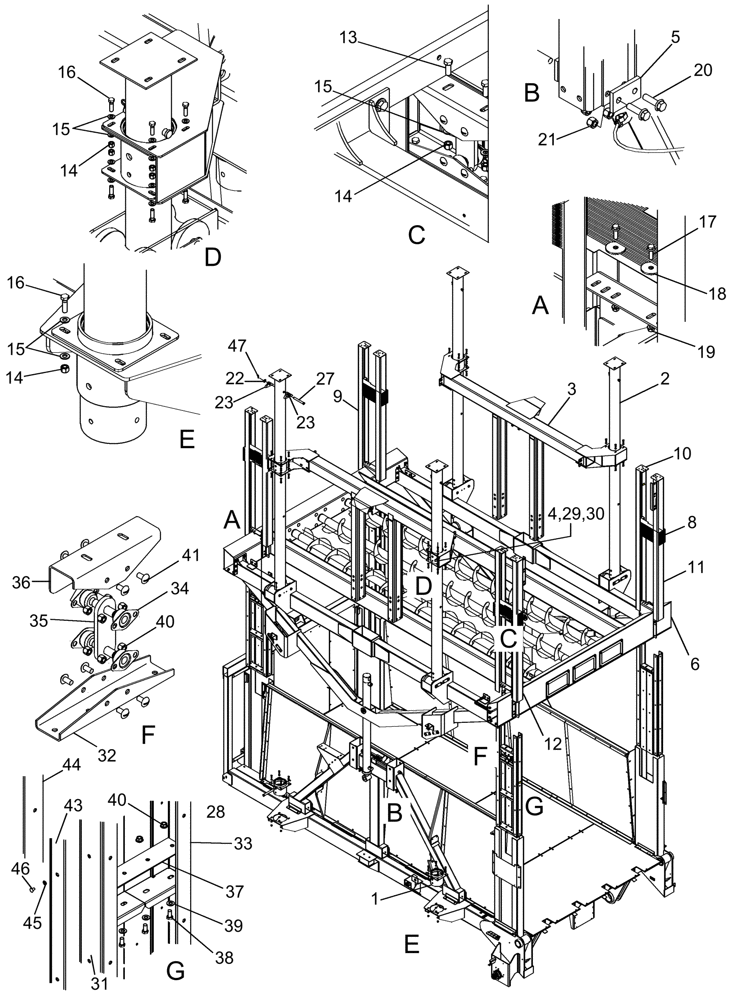

Схема запчастей Case IH 625 - (80.200.11[01]) - MODULE, COMPACTOR, MODEL YEAR 2008 AND PRIOR (80) - CROP STORAGE/UNLOADING
8
43
b
12
38
10
40
20
34
41
15
47
16
22
33
32
15
g
23
1
11
a
b
45
14
15
2
27
g
36
16
e
39
c
f
40
6
9
13
d
14
19
a
d
5
14
e
46
18
23
44
3
31
f
c
21
28
17
37
35

Артикул

Название

Примечание

Количество

1

87606520

SUPPORT TUBE

Guide Post, Lower

4шт.

2

87608696

TUBE

Compactor Guide

4шт.

3

87411531

SUPPORT ASSY.

Compactor Cylinder, Upper

2шт.

3

84480986

SUPPORT

Compactor Cylinder, Upper, Start Year: 04-JAN-12

2шт.

4

87448311

SUPPORT ASSY.

Guide Post, Upper, Inc. 29, 30

4шт.

5

87449994

PLATE ASSY.

Frame Bottom Support

8шт.

6

NSS

NOT SOLD SEPARAT

COMPACTOR, Complete

1шт.

8

87364815

BELLOWS

Compactor Bellow, Upper

4шт.

9

87387187

GUIDE

Upper Bellows Front

4шт.

10

87451385

CHANNEL

Upper Rear Guide

2шт.

11

87366987

GUIDE

Right Hand Rear Upper Bellows

1шт.

12

87366985

GUIDE

Left Hand Rear Upper Bellows

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

14

231-4136

LOCK NUT,3/8"-16, GB

56шт.

15

495-81124

WASHER,0.38" ID x 0.75" OD x 0.06" Thk

104шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

48шт.

17

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

8шт.

18

495-81145

WASHER,13/32" x 1 3/4" x .120"

8шт.

19

231-5345

FLANGE NUT,Flg, 5/16"-18

8шт.

20

409-7828

BOLT,Hex Flg, 1/2" - 13 x 1 3/4", Spcl

16шт.

21

231-4138

LOCK NUT,1/2"-13, GB

20шт.

22

87657977

WASHER,0.78" ID x 1.12" OD x 0.06" Thk

4шт.

23

87702325

GROMMET

8шт.

27

87334747

CLEVIS PIN

Lid Lock

8шт.

28

216698

COTTER PIN,0.125" OD x 1.75" L

4шт.

29

87447878

RING

2шт.

30

87458878

RING

2шт.

31

87607150

CHANNEL

Lower Bellows, Left Hand

4шт.

32

87614385

CHANNEL

Lower Bellows, Lower Align

4шт.

33

87607156

CHANNEL

Lower Bellows, Right Hand

4шт.

34

87614382

FLANGED BEARING,15.89mm ID

16шт.

35

87446505

PLATE ASSY.

Lower Bellows Pivot

4шт.

36

87614384

GUIDE

Lower Bellows, Upper Align

4шт.

37

87614383

PLATE

Lower Bellows Stiffener

8шт.

38

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

48шт.

39

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

48шт.

40

231-5146

FLANGE NUT,3/8"-16

80шт.

41

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

32шт.

43

87446479

GUIDE

Lower Bellows Corner

6шт.

44

87446480

GUIDE

Lower Bellows Corner

2шт.

45

495-81251

WASHER,0.16" ID x 0.31" OD x 0.04" Thk

40шт.

46

151-506

RIVET,Pop, 1/8" x .400", Stainless

40шт.

47

733-4032

COTTER PIN,M4 x 32

4шт.

Выбрано товаров: 43
