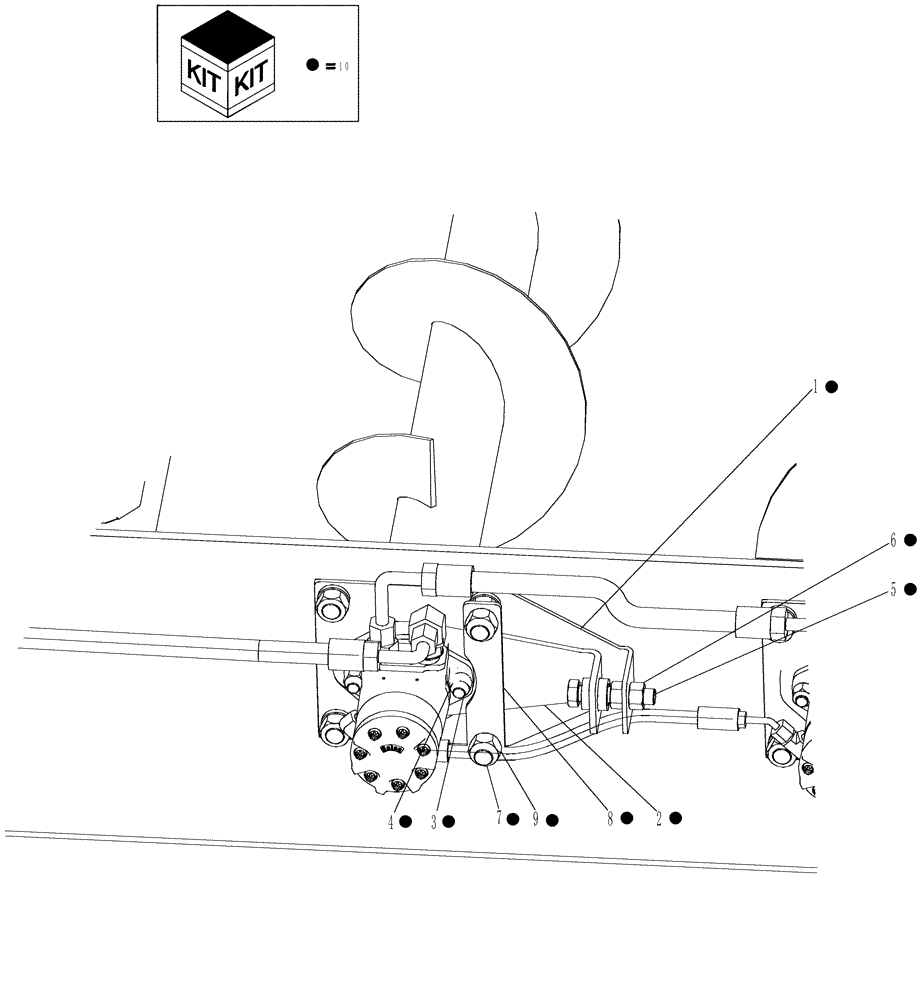

Запчасти Case IH 625 (80.200.10[02]) - KIT, SERVICE, AUGER MOTOR STUD (80) - CROP STORAGE/UNLOADING

1

84201756

PLATE

Auger Motor Mount

3шт.

2

84201757

BRACKET

Auger Motor

3шт.

3

1513

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

6шт.

4

87343666

NUT

6шт.

5

87338

BOLT,Hex, 5/8" - 11 x 3", Gr 5

3шт.

6

280374

NUT,Hex, 5/8" - 11, Gr 5

6шт.

7

88747

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

6шт.

8

84257133

PLATE

Auger Motor Retainer

3шт.

9

280954

NUT,3/4"-10, G5

6шт.

10

84257275

SERVICE KIT

Auger Motor Stud, Inc. 1-9

1шт.
