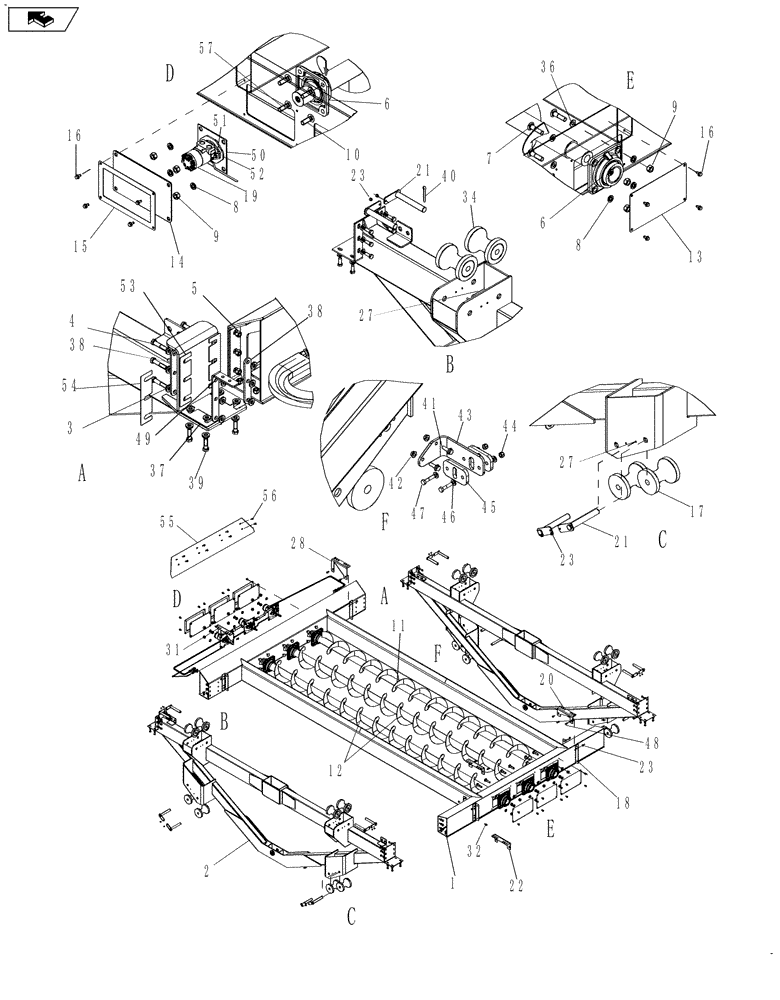

Запчасти Case IH 625 (80.200.10[01]) - MODULE, AUGER (80) - CROP STORAGE/UNLOADING
№
Артикул
Название
Примечание
Количество
1
87752110
FRAME
Compactor
1шт.
2
87752109
SUPPORT
Compactor
2шт.
3
496-31053
WASHER,13.49mm ID x 26.98mm OD x 4.78mm Thk
80шт.
4
426-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8
24шт.
5
9803187
NUT,1/2"-13, G8
40шт.
6
87444626
BEARING ASSY,74.6125 mm ID x 75.4 mm
Compactor
6шт.
7
433-1248
CARRIAGE BOLT,Sq Nk, 3/4" - 10 x 3", Gr 5
12шт.
8
492-11075
LOCK WASHER,3/4"
24шт.
9
425-1012
NUT,3/4"-10, G5
24шт.
10
413-1236
BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5
6шт.
11
87444602
AUGER
Compactor, Left Hand
1шт.
12
87444606
AUGER
Compactor, Right Hand
2шт.
13
87428675
PLATE
Compactor Access Cover
3шт.
14
87454001
DOOR COVER
Compactor Access Cover
3шт.
15
87454002
PLATE
Compactor Access Frame
3шт.
16
281-34912
SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"
24шт.
17
87423530
ROLLER
Compactor, Lower
8шт.
18
87450676
ANGLE
Upper Bellows Support
8шт.
Model Year 2008 And Prior
1шт.
19
87380505
MOTOR, HYDRAULIC,195CC
Auger
3шт.
20
87385806
SUPPORT
Upper Bellows Left Hand Front
1шт.
Model Year 2008 And Prior
1шт.
20
87744205
SUPPORT
Upper Bellows Left Hand Front
1шт.
Model Year 2009 And After
1шт.
21
87607525
PIN ASSY.
Compactor Roller
16шт.
22
87385807
SUPPORT
Upper Bellows Right Hand Front
1шт.
Model Year 2008 And Prior
1шт.
22
87744206
SUPPORT
Upper Bellows Right Hand Front
1шт.
Model Year 2009 And After
1шт.
23
231-1444
NUT,1/4"-20, GB
16шт.
27
413-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
16шт.
28
87385808
SUPPORT
Upper Bellows Left Hand Rear
1шт.
Model Year 2008 And Prior
1шт.
28
87744207
SUPPORT
Upper Bellows Left Hand Rear
1шт.
Model Year 2009 And After
1шт.
31
87385809
SUPPORT
Upper Bellows Right Hand Rear
1шт.
Model Year 2008 And Prior
1шт.
31
87744208
SUPPORT
Upper Bellows Right Hand Rear
1шт.
Model Year 2009 And After
1шт.
32
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
16шт.
Model Year 2008 And Prior
1шт.
33
231-5146
FLANGE NUT,3/8"-16
24шт.
Model Year 2008 And Prior
1шт.
34
87360556
ROLLER
Compactor, Upper
8шт.
36
495-11106
WASHER,1", SAE
12шт.
37
87475070
PLATE ASSY.
Horizontal Thin
8шт.
37
84174516
PLATE ASSY.
Horizontal Thin
4шт.
Model Year 2009 And After
1шт.
38
87752116
ADJUSTING PLATE
Spacer
14шт.
39
426-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8
16шт.
40
432-1624
COTTER PIN,1/4" x 1 1/2"
16шт.
41
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
4шт.
42
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
43
87617156
BRACKET
Compactor Tilt Sensor
2шт.
44
86629544
NUT,5/16” – 18, GR B
4шт.
45
87617157
BLOCK
Compactor Position Sensor
4шт.
46
495-11034
WASHER,5/16", SAE
8шт.
47
88275
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5
4шт.
48
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
8шт.
Model Year 2008 And Prior
1шт.
49
87752117
ADJUSTING PLATE
Compactor, Spacer For Clamp
2шт.
50
87736578
PLATE ASSY.
Auger Motor Mount
3шт.
51
87310321
NUT,Prevailing Torque, 1/2"-13, GB, DOR
6шт.
52
87660724
RUBBER
3шт.
53
87475068
SHIM
Plate Vertical Thick
8шт.
54
87475069
SHIM
Plate Vertical Thin
8шт.
55
87739281
PLATE
Scraper Flap
1шт.
56
281-34912
SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"
8шт.
57
87310193
BOLT,3/4"-10 X 3.00", GR5, DOR
6шт.
