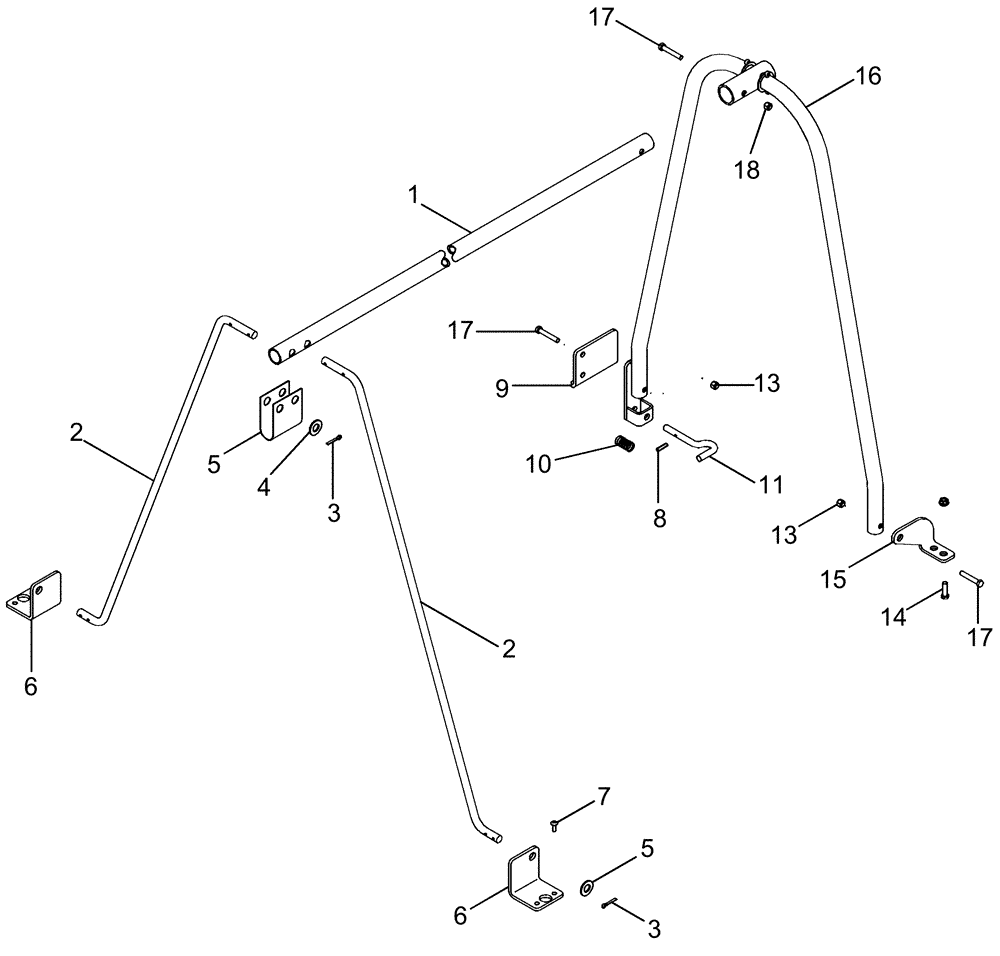

Запчасти Case IH 625 (80.200.09) - LID, MODULE - HANDRAIL (80) - CROP STORAGE/UNLOADING

1

87339955

TUBE,34.92 mm ID x 3702.07 mm L

Lid Handrail, Top

1шт.

2

221411A2

STEM

Lid Handrail Support, Rear

2шт.

3

432-1216

COTTER PIN,3/16" x 1"

8шт.

4

256495A1

SUPPORT

Handrail, Lift, Rear

1шт.

5

495-11066

WASHER,5/8", SAE

8шт.

6

87339954

PLATE

Lid Handrail Rear Pivot

2шт.

7

450-73116

SERRATED SCREW,5/16 x 1" SPL ZND

5шт.

8

38-1813

LOCK PIN,1/8" x 13/16", Slotted

1шт.

9

87522237

CHANNEL

Lid Handrail, Front

1шт.

10

540815R2

SPRING

Front Pivot Channel

1шт.

11

1319740C2

PIN,3mm OD x 20mm OAL

Ladder Support

1шт.

13

231-1446

NUT,3/8" - 16, Gr 5

2шт.

14

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

15

87339957

ANGLE

Lid Handrail Pivot Front, Right Hand

1шт.

16

87332555

TUBE

Lid Handrail, Front

1шт.

17

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

18

230-4116

LOCK NUT,3/8"-16, GA

1шт.
