(74.141.27) - HOOD, INLET - 6 ROW WIDE - 2007 AND PRIOR

Запчасти Case IH 625 (74.141.27) - HOOD, INLET - 6 ROW WIDE - 2007 AND PRIOR (74) - CLEANING

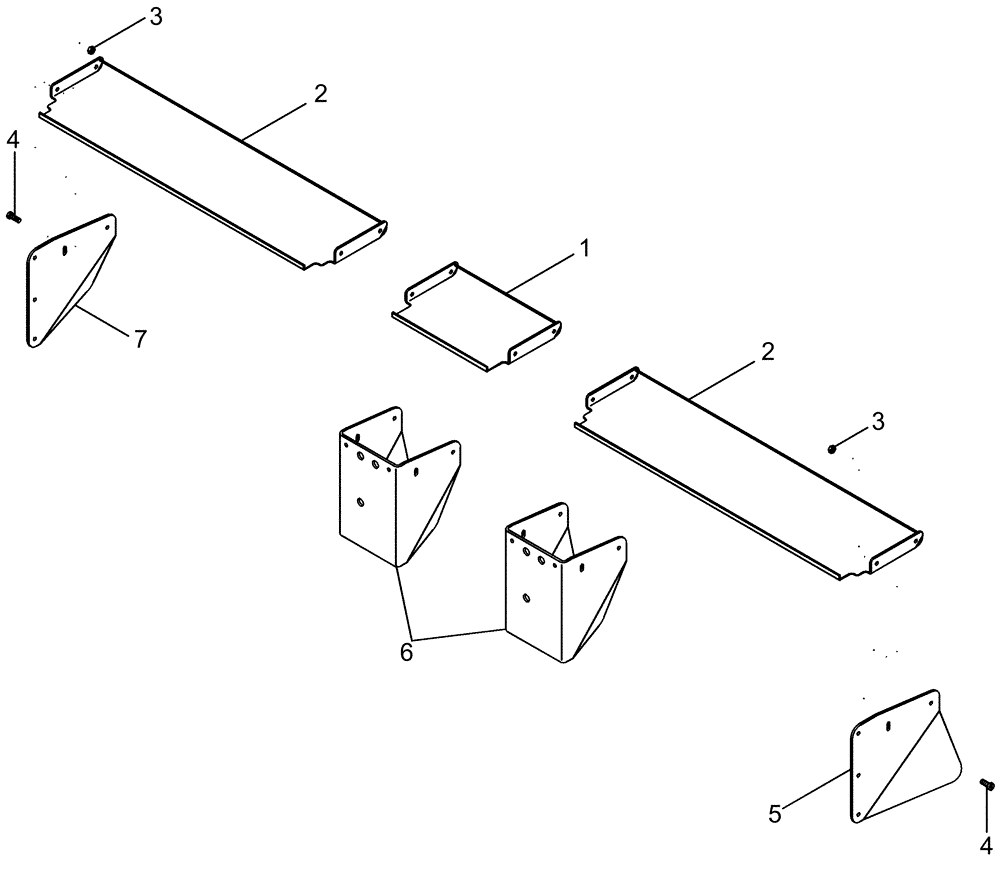

Схема запчастей Case IH 625 - (74.141.27) - HOOD, INLET - 6 ROW WIDE - 2007 AND PRIOR (74) - CLEANING
7
1
2
6
5
2
4
3
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87600879

DEFLECTOR

Center, 6 Row Wide

1шт.

2

87600878

DEFLECTOR

Top, Outer

2шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

4

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

14шт.

5

87345319

SHEET METAL

Left Hand Side

1шт.

6

87345318

CHANNEL

Hood Mount

1шт.

7

87345320

SHEET METAL

Right Hand Side

1шт.
