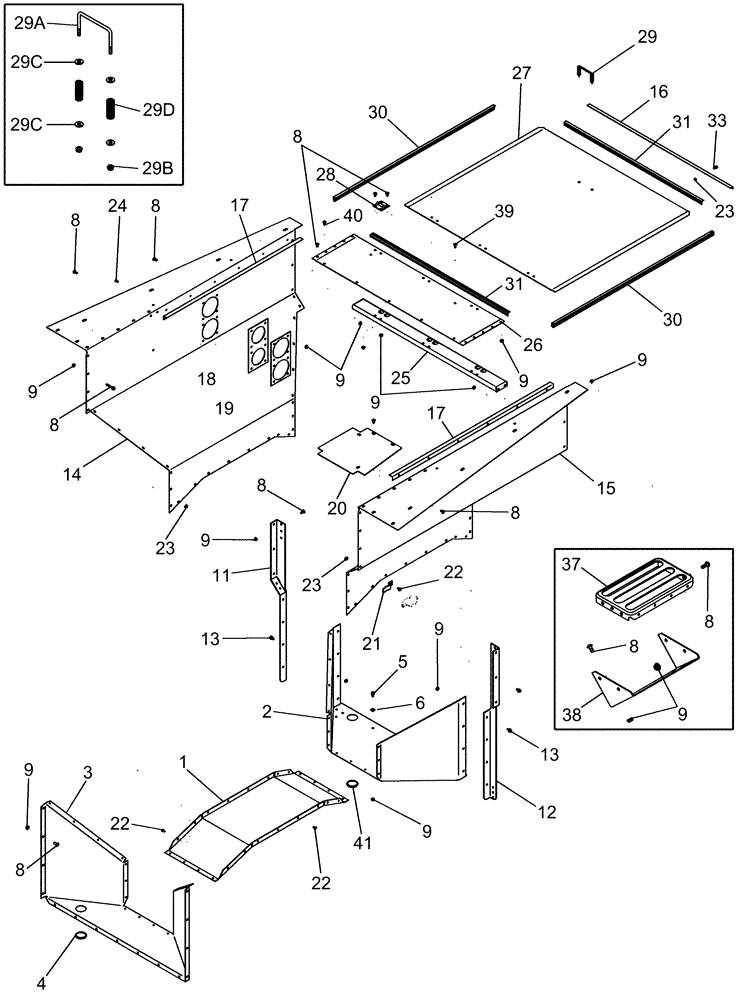

Запчасти Case IH 625 (74.141.25) - AIR TUNNEL (74) - CLEANING

1

87360207

SHEET

Center Floor

1шт.

2

87607491

SHEET METAL

Front Floor

1шт.

3

304374A2

SHEET

Rear Floor

1шт.

4

205-128

HOLE PLUG BUTTON,2 1/2"

1шт.

5

87629048

BOLT

1шт.

6

495-11034

WASHER,5/16", SAE

1шт.

8

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

97шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

109шт.

11

304378A2

SUPPORT

Left Hand

1шт.

12

304382A2

SUPPORT

Right Hand

1шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

16шт.

14

87360208

SHEET

Left Side

1шт.

15

87360209

SHEET

Right Side

1шт.

16

321179A1

ANGLE

Door Front, Seal

1шт.

17

86992568

ANGLE

Door, Side, Seal

2шт.

18

321286A2

SEAL

Charge Air Tubes

1шт.

19

321287A1

PLATE

Charge Air Tubes

1шт.

20

441281A1

COVER

2шт.

21

87523236

BRACKET

Fuel Filter Mounting

1шт.

22

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

64шт.

23

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

(Not Shown)

71шт.

24

409-7532

BOLT,Hex Flg, 5/16" - 18 x 2", Spcl

1шт.

25

362853A1

CHANNEL

1шт.

26

86992565

COVER

1шт.

27

87337396

DOOR

Access

1шт.

28

215720C1

HINGE

3шт.

29

87408511

HANDLE

Inc. 29A - 29D

1шт.

29a

87408512

HANDLE

1шт.

29b

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

29c

495-21031

WASHER,1/4"

4шт.

29d

87408513

SPRING

2шт.

30

86992569

SEAL

2шт.

31

321049A1

DOOR SEAL

2шт.

33

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

7шт.

35

131-137

SPRING NUT,Ret, 5/16"-18

10шт.

37

87405728

STEP

1шт.

38

87402521

BRACKET

1шт.

39

205-80

HOLE PLUG BUTTON,11/32"

2шт.

40

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5шт.

41

205-67

HOLE PLUG BUTTON,2"

1шт.
