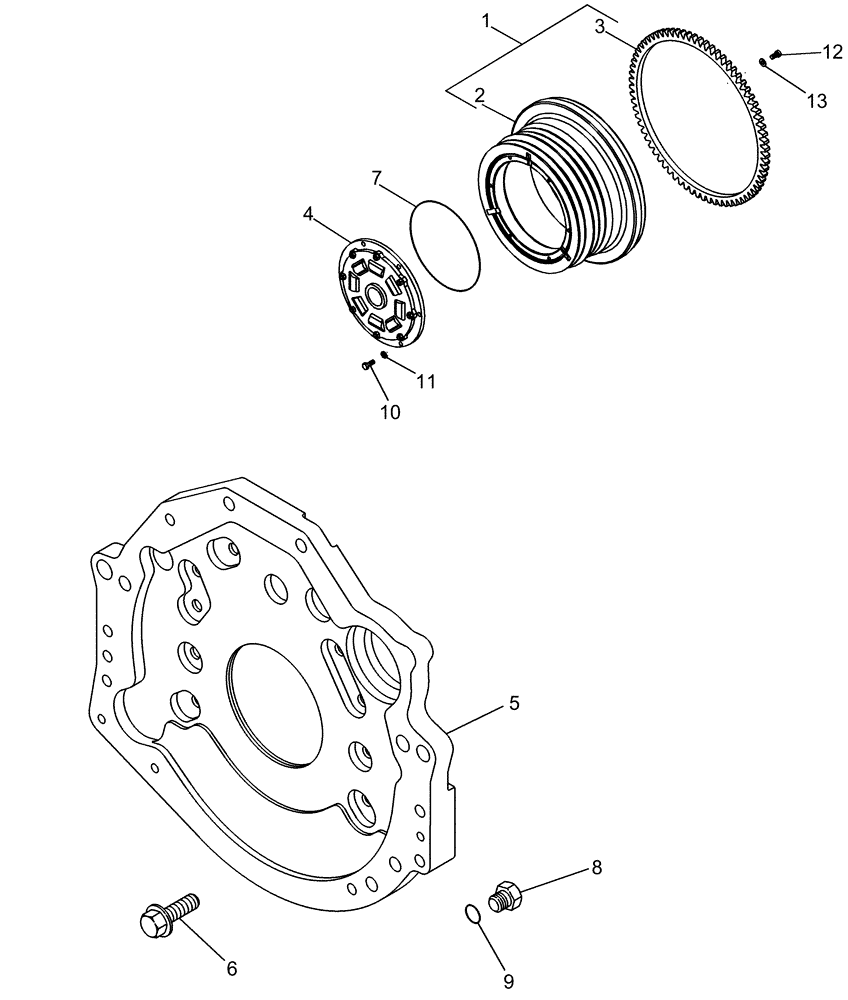

Запчасти Case IH 625 (10.103.02) - FLYWHEEL AND BACKING PLATE (10) - ENGINE

1

431642A1

PULLEY

Inc. 2 - 3

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY, Flywheel

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR

1шт.

4

391379A1

DRIVE PLATE,263.45mm OD

1шт.

5

J913593

PLATE

1шт.

6

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

10шт.

7

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

8

J910248

PLUG

Inc. 9

1шт.

9

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

11

492-11038

LOCK WASHER,3/8"

6шт.

12

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.
