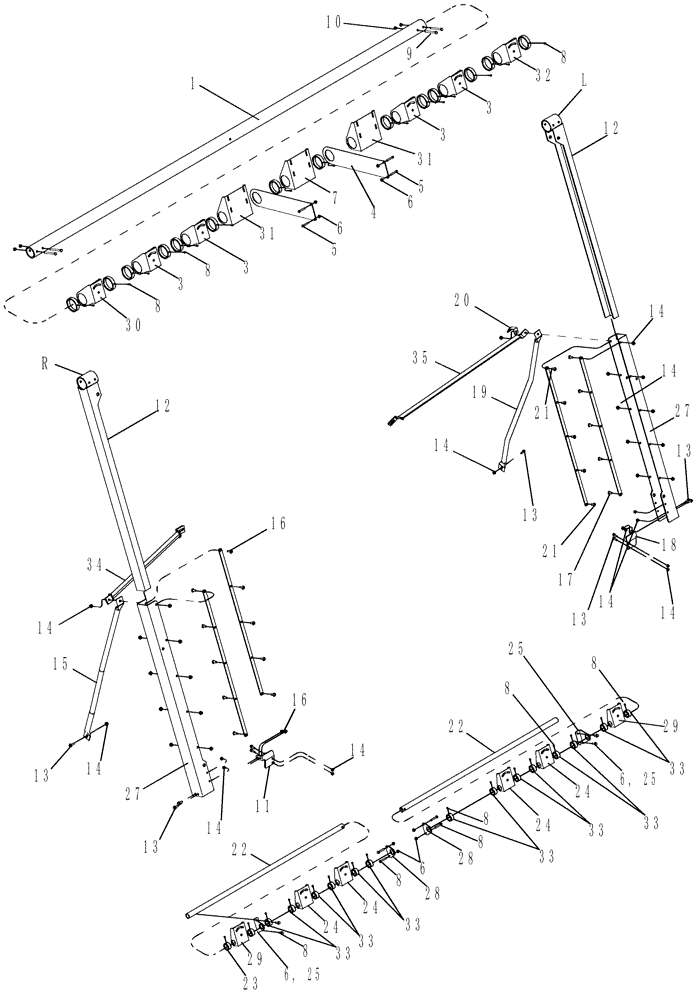

Запчасти Case IH 625 (74.141.19) - CHUTE SUPPORT SYSTEMS (74) - CLEANING
№
Артикул
Название
Примечание
Количество
1
87663200
SUPPORT ASSY.
1шт.
2
87667011
COLLAR
30шт.
3
87663203
BRACKET
4шт.
4
87661972
BRACKET
2шт.
5
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
7шт.
6
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
7
87663204
BRACKET
1шт.
8
483-1316
SET SCREW,Hex Soc, 5/16"-18 x 3/8"
32шт.
9
413-664
BOLT,Hex, 3/8" - 16 x 4", Gr 5
4шт.
10
425-106
NUT,3/8"-16, Cl 5
4шт.
11
87724536
BRACKET
1шт.
12
87663195
CHANNEL
Telescoping
2шт.
13
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
5шт.
14
231-5146
FLANGE NUT,3/8"-16
7шт.
15
84184682
CHUTE
Telescoping Brace Pipe Right Side
1шт.
16
87605319
SCREW,Phillips Drive, Truss HD, 3/8" - 16 x 1-1/4"
1шт.
Model Year 2008 And Prior
1шт.
16
477-73824
SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/2"
1шт.
Model Year 2009 And After
1шт.
17
450-73816
SERRATED SCREW,Truss HD, 3/8" - 16 x 1"
1шт.
18
87724537
BRACKET
1шт.
19
84184552
CHUTE
Telescoping Brace Pipe Left Side
1шт.
20
284547A1
BRACKET
Light
1шт.
21
477-73824
SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/2"
1шт.
Model Year 2008 And Prior
1шт.
21
477-73832
SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 2"
1шт.
Model Year 2009 And After
1шт.
22
87663202
BRACKET
Water Tank Top Gusset
2шт.
23
87373020
TUBE,46.04 mm OD x 20 mm L
Water Tank Hyd Manifold Tab
16шт.
24
87416775
SUPPORT ASSY.
Cab Support Channel
4шт.
25
87663201
BRACKET
Pipe Mounting
2шт.
26
409-7516
BOLT,Hex Flg, 5/16" - 18 x 1", Spcl
Water Tank Lower Gusset, Left
2шт.
27
87663198
CHANNEL
Telescoping
2шт.
28
87668632
BRACKET
2шт.
29
87416775
SUPPORT ASSY.
4шт.
Used on 6 Row Wide
1шт.
30
87663203
BRACKET
16шт.
Not used on Super 4 Row Wide
1шт.
31
87663204
BRACKET
2шт.
Used on 6 Row Narrow
1шт.
32
87663203
BRACKET
2шт.
Used on 6 Row Wide
1шт.
33
87373020
TUBE,46.04 mm OD x 20 mm L
Lock Collar
40шт.
34
84189711 84189711
1шт.
Model Year 2009 And After
1шт.
35
84188693
BRACKET
1шт.
Model Year 2009 And After
1шт.
Выбрано товаров: 47
