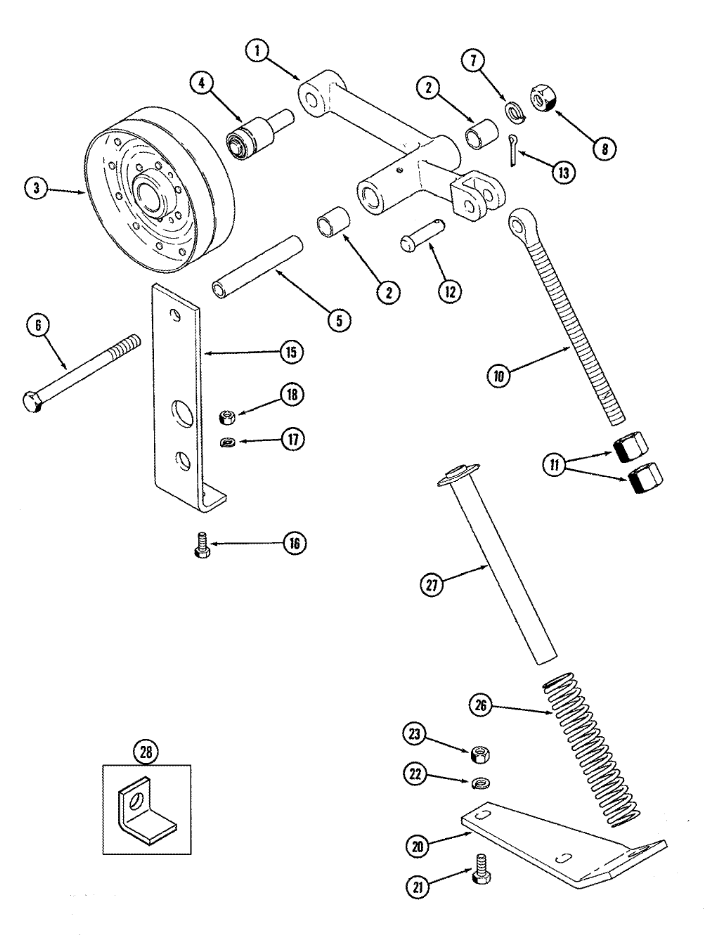

Запчасти Case IH 625 (74.141.10) - FRONT FAN IDLER PULLEY LINKAGE (74) - CLEANING

1

1338318C1

ARM

Idler, Inc. 2 - 4

1шт.

2

289588R1

BUSHING

2шт.

3

1315091C1

PULLEY

1шт.

4

86976596

BEARING,30mm OD x 82.55mm L

1шт.

5

1345004C1

SPACER

Idler Pivot

1шт.

6

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

8

425-108

NUT,1/2" - 13, Gr 5

1шт.

10

1338314C1

EYEBOLT

BOLT, EYE Adjusting

1шт.

11

425-1010

NUT,5/8"-11, G5

2шт.

12

439-5832

HEADED PIN,12.7mm OD x 50.8mm L

1шт.

13

432-1216

COTTER PIN,3/16" x 1"

1шт.

15

1982261C2

SUPPORT

Idler Pivot, Rear

1шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

17

492-11031

LOCK WASHER,5/16"

2шт.

18

425-105

NUT,5/16"-18, G5

2шт.

20

341273A1

SUPPORT

Idler Spring

1шт.

Model Year 2008 And Prior

1шт.

20

87482982

SUPPORT

Idler Spring

1шт.

Model Year 2009 And After

1шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.

26

84285626

COMPRESSION SPRING

Idler Tension

1шт.

27

1345002C2

SPACER

Idler Spring

1шт.

Model Year 2008 And Prior

1шт.

27

87482981

SPACER

Idler Spring

1шт.

Model Year 2009

1шт.

28

341428A1

LOCK

Idler Spring

1шт.

Model Year 2008 And Prior

1шт.
