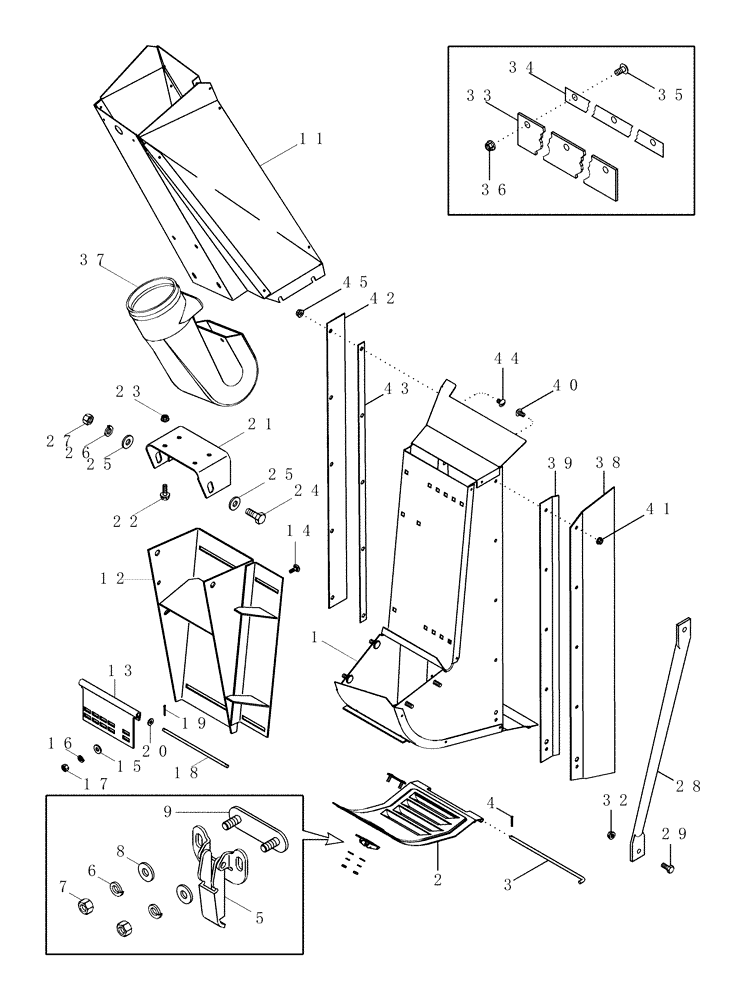

Запчасти Case IH 625 (74.141.06) - DRUM OUTLETS - REAR - 6 ROW NARROW, NO. 4 (74) - CLEANING
№
Артикул
Название
Примечание
Количество
NSS
NOT SOLD SEPARAT
REAR OUTLET, Inc. 1 - 9, 38 - 45
1шт.
1
87430569
OUTLET
Rear
1шт.
2
119753A1
TRAP DOOR
Access, Rear Outlet, 4 Louvers
1шт.
3
1984110C2
PIN,6.25mm OD
Hinge
1шт.
4
432-612
COTTER PIN,3/32" x 3/4"
1шт.
5
1333780C1
LATCH
Hinge, Access Door
1шт.
6
492-11010
LOCK WASHER,#10
2шт.
8
495-31022
WASHER,#10
4шт.
9
119069A1
PLATE
Outlet Door Latch
1шт.
11
1984090C3
HOUSING
Outlet, Rear Drum, No. 4
1шт.
12
1984168C4
SUPPORT
Support, Rear
1шт.
13
87330915
HINGE
Rear Door Support
1шт.
14
434-512
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
6шт.
15
495-11034
WASHER,5/16", SAE
6шт.
17
425-105
NUT,5/16"-18, G5
6шт.
18
1984153C1
STEM
Outlet Support
1шт.
19
32-812
COTTER PIN,1/8" x 3/4"
2шт.
20
495-11034
WASHER,5/16", SAE
2шт.
21
1990466C2
SUPPORT
Rear Outlet Adjustment
1шт.
22
409-7520
BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl
4шт.
23
145458
SERRATED NUT,5/16"-18 GR 5 ZND
12шт.
24
413-812
BOLT,Hex, 1/2" - 13 x 3/4", Gr 5
2шт.
25
495-11053
WASHER,1/2", SAE
4шт.
26
392-21050
LOCK WASHER,1/2"
2шт.
27
425-108
NUT,1/2" - 13, Gr 5
2шт.
28
1984349C1
SUPPORT
Door
1шт.
32
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
33
1546051C2
SEALING STRIP
44 mm wide x 784 mm lg, Outlet
1шт.
34
1546224C1
LARGE PLATE
PLATE, LARGE Backup, Outlet Seal
1шт.
35
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5шт.
37
1349941C2
NOZZLE INJECTION
1шт.
38
87404722
RUBBER SEAL,114.3mm W x 783mm L
1шт.
39
87404723
ANGLE
1шт.
40
477-82508
SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"
5шт.
42
1546051C2
SEALING STRIP
Doffer Post Outlet Seal
1шт.
43
1546224C1
LARGE PLATE
PLATE, LARGE Rubber Backup
1шт.
44
477-73108
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"
5шт.
45
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
5шт.
Выбрано товаров: 41
