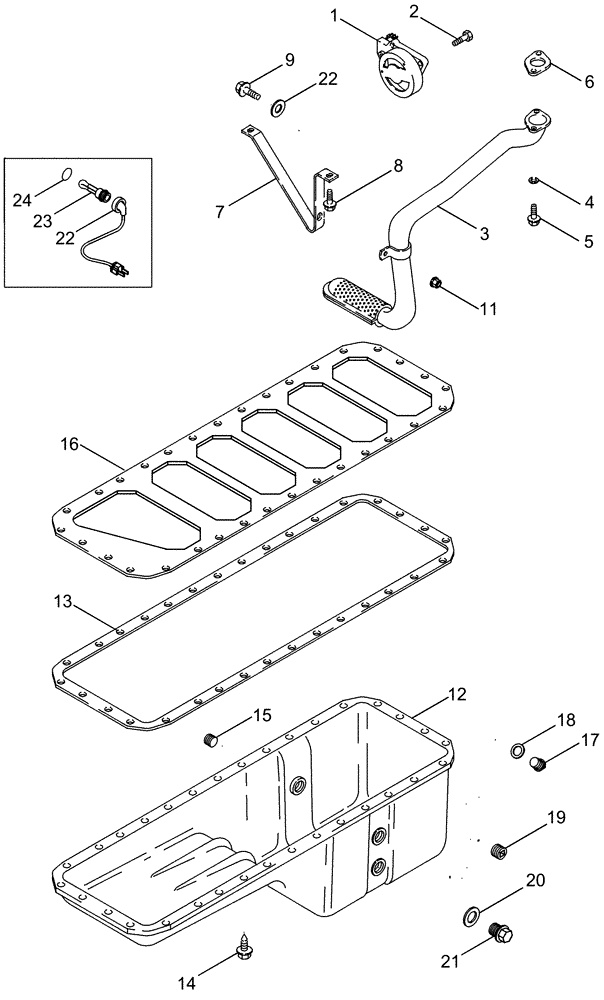

Запчасти Case IH 625 (10.102.02) - OIL PUMP - OIL PAN HEATER KIT (10) - ENGINE

1

J991123

ENGINE OIL PUMP

1шт.

1

JR991123

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. Only

1шт.

1

JC991123

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J944264

TUBE,1.25" OD

1шт.

4

J926865

SPACER,6.9mm ID x 12.7mm OD x 14mm L

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

2шт.

6

87447959

GASKET,1.2mm Thk

1шт.

7

J927611

BRACKET

1шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

9

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

10

J910960

WASHER

1шт.

11

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

12

87357469

ENGINE OIL PAN

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL, Order A77679

1шт.

14

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

32шт.

15

J924148

PLUG,M22 x 1.5

M22

1шт.

16

87308050

GASKET,0.95mm Thk

1шт.

17

J924147

PLUG,M18 x 1.5

M18

1шт.

18

J920773

SEALING WASHER

1шт.

19

86637727

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

21

J924147

PLUG,M18 x 1.5

M18

1шт.

A77580

SERVICE KIT

Heater, 120V, Inc. 22 & 23

1шт.

22

J906388

HEATING ELEMENT

1шт.

23

196466A1

ELECTRIC CABLE

1829 mm (72")

1шт.

A77666

SERVICE KIT

Heater, 240V, Inc. 22 & 23

1шт.

22

J906389

HEATING ELEMENT

1шт.

23

J905114

ELECTRIC CABLE

1829 mm (72")

1шт.

24

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.
