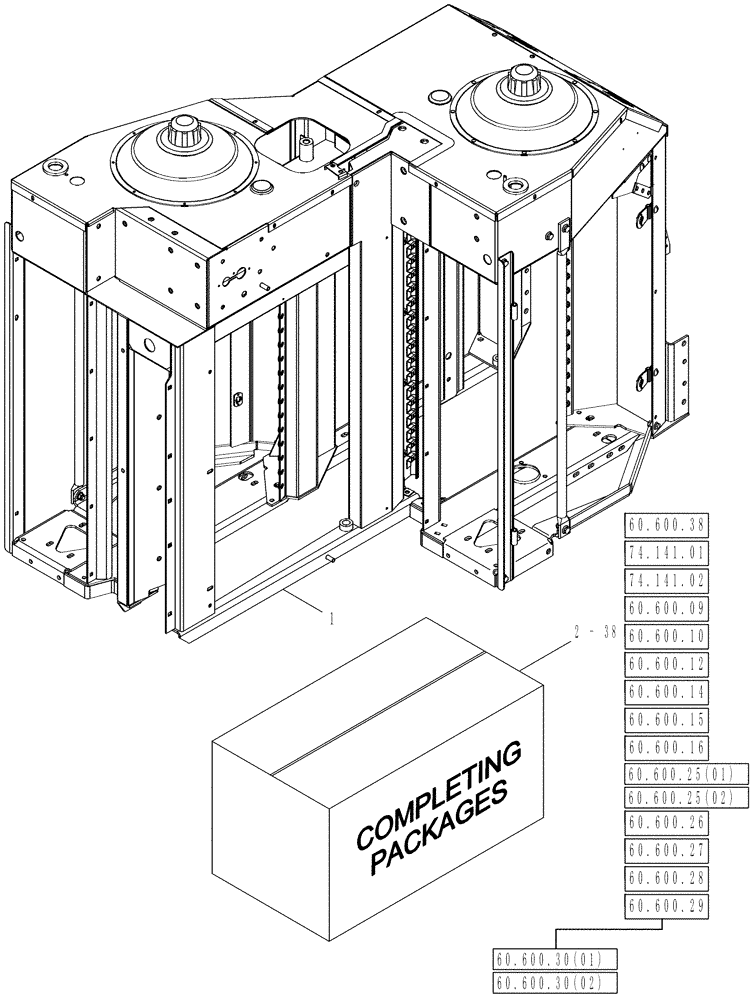

Запчасти Case IH 625 (60.600.40) - DRUM SERVICE ASSEMBLIES / COMPLETING PACKAGES 6 ROW NARROW (60) - PRODUCT FEEDING

87426419

DRUM

Assembly, Service, #1; Inc. 1, 2, 4, 6, 7, 10, 12, 14, 15, 18, 20, 28, 30, 33

1шт.

87426421

DRUM

Assembly, Service, #2; Inc. 1, 2, 7, 10, 11, 13, 18, 21, 26, 29, 32, 34

1шт.

87426422

DRUM

Assembly, Service, #3; Inc. 1, 3, 4, 6, 8, 9, 13, 17, 19, 22, 27, 28, 31, 35

1шт.

87426423

DRUM

Assembly, Service, #4; Inc. 1, 2, 4, 6, 12, 15, 23, 26, 28, 31, 36

1шт.

87416636

DRUM

Assembly, Service, #5; Inc. 1, 2, 4, 6, 7, 10, 12, 13, 15, 18, 24, 29, 32, 37

1шт.

87416638

DRUM

Assembly, Service, #6; Inc. 1, 2, 5, 6, 7, 10, 11, 13, 16, 18, 25, 28, 31, 38

1шт.

87424035

DRUM

Assembly, High Yield, Service, #1; Inc. 1, 2, 4, 6, 7, 10, 12, 14, 15, 18, 20, 24, 28, 30, 33

1шт.

87424036

DRUM

Assembly, High Yield, Service, #2; Inc. 1, 2, 4, 6, 7, 10, 13, 18, 21, 26, 29, 32, 34

1шт.

87424037

DRUM

Assembly, High Yield, Service, #3; Inc. 1, 3, 4, 6, 8, 9, 17, 19, 22, 27, 28, 31, 35

1шт.

87424038

DRUM

Assembly, High Yield, Service, #4; Inc. 1, 2, 4, 6, 7, 12, 15, 23, 26, 28, 31, 36

1шт.

87424033

DRUM

Assembly, High Yield, Service, #5; Inc. 1, 2, 4, 6, 7, 10, 12, 13, 15, 18, 24, 29, 32, 37

1шт.

87424034

DRUM

Assembly High Yield, Service, #6; Inc. 1, 2, 5, 6, 7, 10, 11, 13, 16, 18, 25, 28, 31, 38

1шт.

1

NSS

NOT SOLD SEPARAT

BASIC SERVICE, With Covers and Harness

1шт.

2

87454849

PACKAGE

Rotor Doors

1шт.

3

87454852

PACKAGE

Rotor Doors

1шт.

4

87454859

PACKAGE

Front Outlets

1шт.

5

87454857

PACKAGE

Front Outlets

1шт.

6

431245A1

PACKAGE

Front Nozzles

1шт.

7

87454858

PACKAGE

Rear Outlets

1шт.

8

87454861

PACKAGE

Rear Outlets

1шт.

9

431767A1

AIR DUCT

Rear Nozzles

1шт.

10

431473A1

PACKAGE

Rear Nozzles

1шт.

11

431655A1

PACKAGE

Front Transition

1шт.

12

431244A1

PACKAGE

Front Transition

1шт.

13

431475A1

PACKAGE

Rear Transitions

1шт.

14

431472A1

PACKAGE

Rear Transitions

1шт.

15

431647A1

PACKAGE

Front Extension

1шт.

16

431243A1

PACKAGE

Front Extension

1шт.

17

431797A1

PACKAGE

Front Extension

1шт.

18

431471A1

PACKAGE

Rear Extension

1шт.

19

431798A1

PACKAGE

Rear Extension

1шт.

20

431240A1

PACKAGE

Gearbox

1шт.

21

431758A1

PACKAGE

Gearbox

1шт.

22

431789A1

PACKAGE

Gearbox

1шт.

23

431636A1

PACKAGE

Gearbox

1шт.

24

431637A1

PACKAGE

Gearbox

1шт.

25

431280A1

PACKAGE

Gearbox

1шт.

26

433187A1

PACKAGE

Gearbox Completing

1шт.

27

433189A1

PACKAGE

Gearbox Completing

1шт.

28

414357A1

PACKAGE

Plant Lifter with Automatic Height Control

1шт.

29

414358A1

PACKAGE

Plant Lifter without Automatic Height Control

1шт.

30

448177A1

PACKAGE

Automatic Height Control Completing with Ladder Latch

1шт.

31

431241A1

PACKAGE

Automatic Height Control Completing without Ladder Latch

1шт.

32

431281A1

PACKAGE

Automatic Height Control Fillers

1шт.

33

431246A1

PACKAGE

Completing Parts

1шт.

34

431769A1

PACKAGE

Completing Parts

1шт.

35

87454855

PACKAGE

Completing Parts

1шт.

36

431831A1

PACKAGE

Completing Parts

1шт.

37

431694A1

PACKAGE

Completing Parts

1шт.

38

431695A1

PACKAGE

Completing Parts

1шт.
