Запчасти Case IH 625 (60.600.37) - DRUM LIFT ARMS (60) - PRODUCT FEEDING

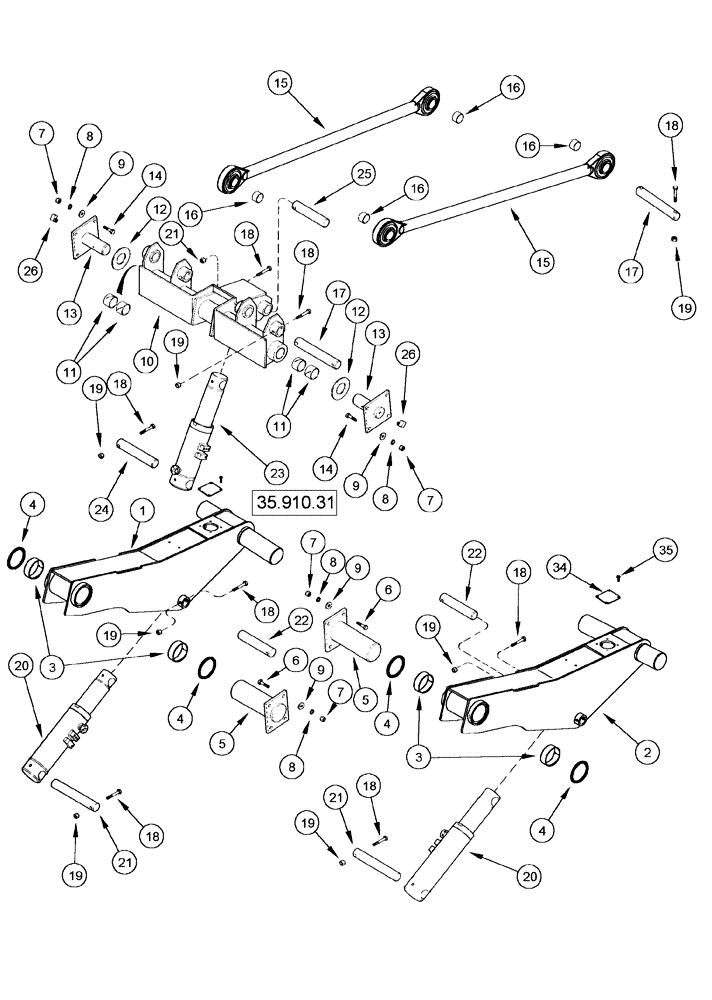

Схема запчастей Case IH 625 - (60.600.37) - DRUM LIFT ARMS (60) - PRODUCT FEEDING
25
19
26
35.910.31
19
19
26
3
12
18
34
8
7
21
22
16
35
18
13
9
14
8
7
3
5
13
4
1
2
19
16
12
8
7
11
17
11
21
4
15
18
18
19
21
9
17
19
4
5
4
7
20
23
15
16
9
22
6
24
10
20
9
14
18
8
6
19
18
18
16
18

Артикул

Название

Примечание

Количество

1

84160706

ARM, LIFT

Left Hand, Inc. 3, 4

1шт.

2

84160701

ARM, LIFT

Right Hand, Inc. 3, 4

1шт.

3

115792A1

BUSHING

2шт.

4

199246A1

SEAL,101.6mm ID x 123.98mm OD x 6.35mm Thk

Lift Arm Pivot

2шт.

5

417476A1

PIN

2шт.

6

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

7

329-108

NUT,1/2"-13, G8

18шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

16шт.

9

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

16шт.

10

84164267

PIVOT ASSY.

Kickback, Inc. 11

1шт.

11

669644R1

BUSHING

4шт.

12

495-31238

WASHER,2.38" ID x 4.75" OD x 0.22" Thk

2шт.

13

1983044C1

PIN

Kickback Pivot

2шт.

14

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

8шт.

15

297464A1

LINK ASSY.

Rear Radius

2шт.

16

320425A1

SPACER

1-53/64 ID x 3-15/16

4шт.

17

1982990C2

PIN

4шт.

18

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

10шт.

19

231-4138

LOCK NUT,1/2"-13, GB

10шт.

20

87272663

HYDRAULIC CYLINDER,88.9mm Rod, 271.5mm Stroke

Drum Lift, Model Year 2008 And Prior

2шт.

20

87731913

LIFT CYLINDER,Double Acting, 88.9mm Rod, 271.5mm Stroke

Drum Lift, Model Year 2009 And After

2шт.

21

348316A1

PIN,44.21mm OD x 280mm L

Lift Cylinder, Lower

2шт.

22

1983053C1

PIN

Lift Cylinder, Upper

2шт.

23

87416924

LIFT CYLINDER,88.9mm Rod, 184.7mm Stroke

102 mm ID x 185 mm stroke, Drum Tilt

1шт.

24

1982991C2

PIN

Kickback Cylinder, Lower

1шт.

25

1983053C2

PIN

Kickback Cylinder, Upper

1шт.

28

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

6шт.

30

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

(Not Shown)

1шт.

31

461-32516

HEX SOC SCREW,1/4"-20 x 1"

(Not Shown)

4шт.

32

112291A1

COVER

Switch Port

3шт.

33

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

34

87415938

COVER

2шт.

35

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

8шт.

36

326-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

2шт.

515-25508

CLAMP,2", Insul, 1/2" Bolt

(Not Shown)

2шт.

425-286

FLANGE NUT,Flg, 3/8"-16, G5

(Not Shown)

1шт.

409-7612

BOLT,3/8"-16 x 1.09" OAL

(Not shown)

1шт.

Выбрано товаров: 37
