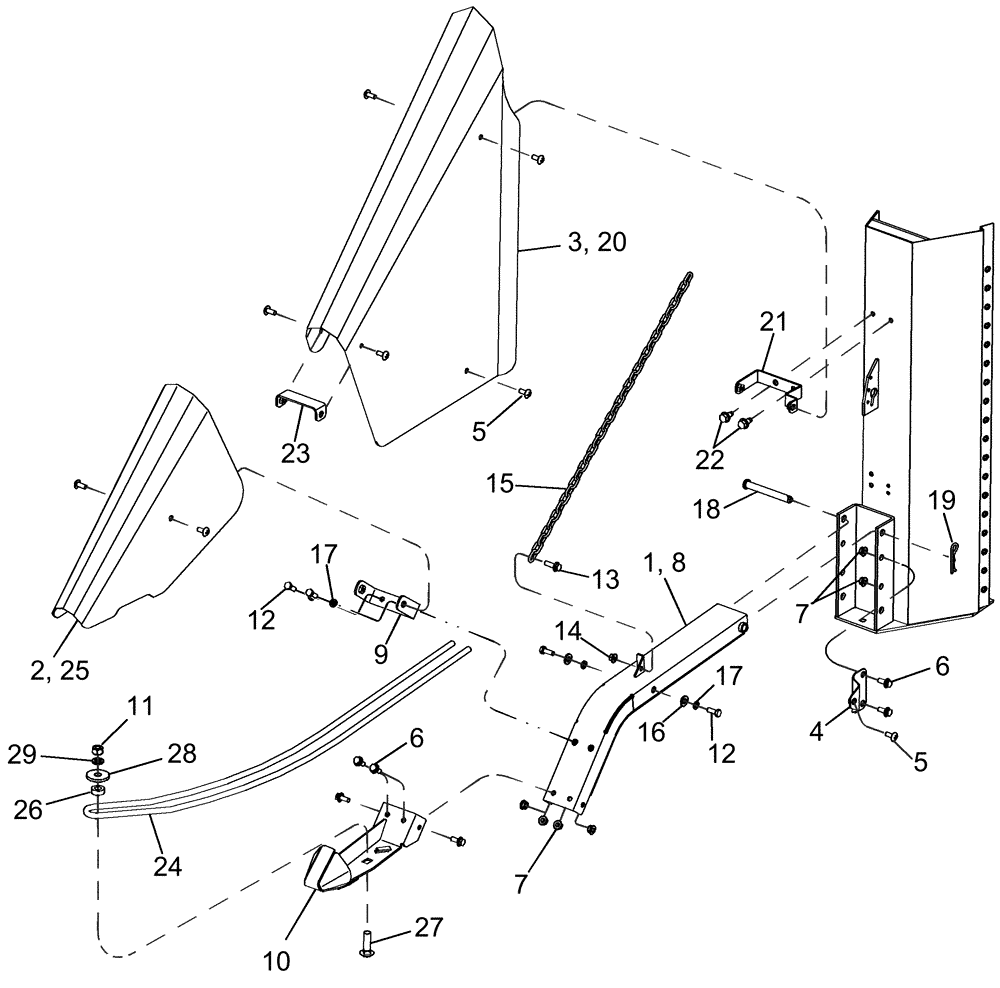

Запчасти Case IH 625 (60.600.30[02]) - NEW GENERATION PLANT LIFTER WITHOUT HEADER HEIGHT CONTROL - RIGHT HAND - ASN Y8T013801 (60) - PRODUCT FEEDING

1

87638874

LIFT ARM

Inc. 5 - 10, 12 - 19

1шт.

2

87638875

COVER ASSY

Bottom, Inc. 11, 24 - 29

1шт.

3

87638038

COVER ASSY

Top, Inc. 5, 20 23

1шт.

4

87638041

COVER ASSY

Top Lower Mount

1шт.

5

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

7шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

7

231-5146

FLANGE NUT,3/8"-16

6шт.

8

NSS

NOT SOLD SEPARAT

ARM, Lift

1шт.

9

87638899

COVER ASSY

Bottom Mount

1шт.

10

87638884

SHOE (ASSY)

Drive

1шт.

11

425-108

NUT,1/2" - 13, Gr 5

1шт.

12

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

13

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

14

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

15

87457723

CHAIN (AG)

Plant Lifter

1шт.

16

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

2шт.

17

392-11031

LOCK WASHER,5/16"

4шт.

18

439-1868

HEADED PIN,12.7mm OD x 107.25mm L

1шт.

19

86628570

COTTER PIN

1шт.

20

87427884

BODY

Plant Lifter Rear

1шт.

21

87638905

COVER ASSY

Top Upper Mount

1шт.

22

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

23

87638039

COVER ASSY

Top Brace

1шт.

24

87457722

ROD ASSY.

1шт.

25

87638897

COVER ASSY

Bottom

1шт.

26

87638898

SPACER,13.5mm ID x 25.4mm OD x 9.1mm L

Spacer

1шт.

27

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

28

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

1шт.

29

492-11050

LOCK WASHER,1/2"

1шт.
