Запчасти Case IH 625 (60.600.28[02]) - NEW GENERATION PLANT LIFTER WITH MECHANICAL HEADER HEIGHT CONTROL - RIGHT HAND, MODEL YEAR 2009 (60) - PRODUCT FEEDING

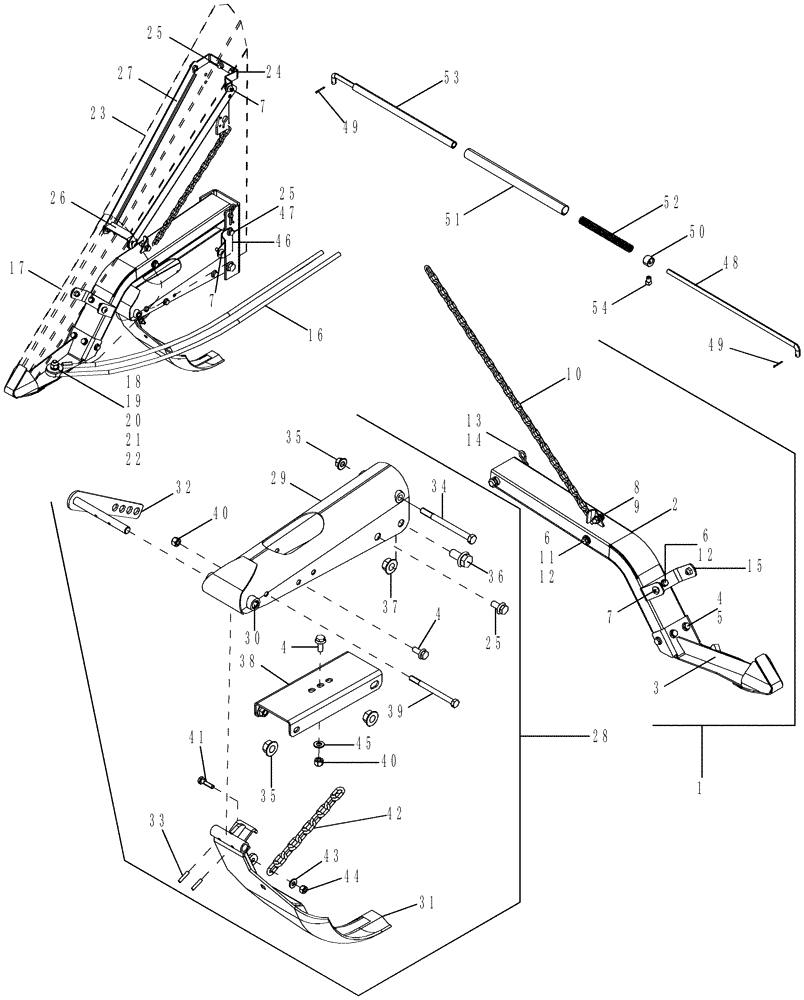

Схема запчастей Case IH 625 - (60.600.28[02]) - NEW GENERATION PLANT LIFTER WITH MECHANICAL HEADER HEIGHT CONTROL - RIGHT HAND, MODEL YEAR 2009 (60) - PRODUCT FEEDING
54
50
41
31
37
6
4
47
9
20
21
35
2
38
30
5
10
40
11
25
19
26
48
32
4
28
53
43
6
36
16
49
23
17
24
7
45
1
22
8
29
52
13
15
35
46
12
7
12
4
25
18
14
51
25
27
49
44
39
7
42
3
34
33
40

Артикул

Название

Примечание

Количество

1

87638874

LIFT ARM

Right Hand, Inc. 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

ARM, Lift

1шт.

3

87638884

SHOE (ASSY)

Drive, Right Hand

1шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

7шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

6

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

7

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

7шт.

8

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

9

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

10

87457723

CHAIN (AG)

Plant Lifter

1шт.

11

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

2шт.

12

392-11031

LOCK WASHER,5/16"

4шт.

13

439-1868

HEADED PIN,12.7mm OD x 107.25mm L

1шт.

14

86628570

COTTER PIN

1шт.

15

87638899

COVER ASSY

Bottom Mount

1шт.

16

87457722

ROD ASSY.

Guide, Right

1шт.

17

87638897

COVER ASSY

Bottom

1шт.

18

87638898

SPACER,13.5mm ID x 25.4mm OD x 9.1mm L

Guide Rod

1шт.

19

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

20

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

1шт.

21

492-11050

LOCK WASHER,1/2"

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

1шт.

23

87427884

BODY

Right Hand Plant Lifter With Guidance

1шт.

24

87638905

COVER ASSY

Top Upper Mount

1шт.

25

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

26

87638039

COVER ASSY

Top Brace

1шт.

27

84207098

SUPPORT

Plant Lifter, Upper

2шт.

28

84186465

MOUNT

Sensing Shoe, Right Hand, Inc. 4, 25, 29 - 45

1шт.

29

87749227

MOUNTING PARTS

Shoe Base, Inc. 30

1шт.

30

1994864C1

BUSHING,12.72mm ID x 21mm OD x 15mm L

2шт.

31

87749250

SHOE

Sensor Height Control, Right Hand

1шт.

32

87744233

SHOE (ASSY)

Sensing Pivot Pin

1шт.

33

38-31214

PIN,4.75mm OD x 22.23mm L, Coiled

2шт.

34

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

1шт.

35

231-5346

FLANGE NUT,Flg, 3/8"-16

5шт.

36

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

2шт.

37

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

38

84195443

MOUNT

Bracket, Stop

1шт.

39

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

1шт.

40

230-4145

LOCK NUT

2шт.

41

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

42

84195440

CHAIN (AG)

Plant Lifter, Stop

1шт.

43

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1шт.

44

230-4244

LOCK NUT,1/4"-20, GA

1шт.

45

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

1шт.

46

87638041

COVER ASSY

Top Lower Mount

1шт.

47

231-5146

FLANGE NUT,3/8"-16

1шт.

48

1982717C1

ROD

Lower Push

1шт.

49

432-816

COTTER PIN,1/8" x 1"

2шт.

50

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

Inc. 54

1шт.

51

669058R1

TUBE,30.2 mm OD, 406.5 mm Length

Spring Cover

1шт.

52

523677R1

SPRING

1шт.

53

670890R91

ROD

Upper Push

1шт.

54

485-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

1шт.

Выбрано товаров: 54
