Запчасти Case IH 625 (60.600.28[01]) - NEW GENERATION PLANT LIFTER WITH MECHANICAL HEADER HEIGHT CONTROL - RIGHT HAND, MODEL YEAR 2008 ONLY (60) - PRODUCT FEEDING

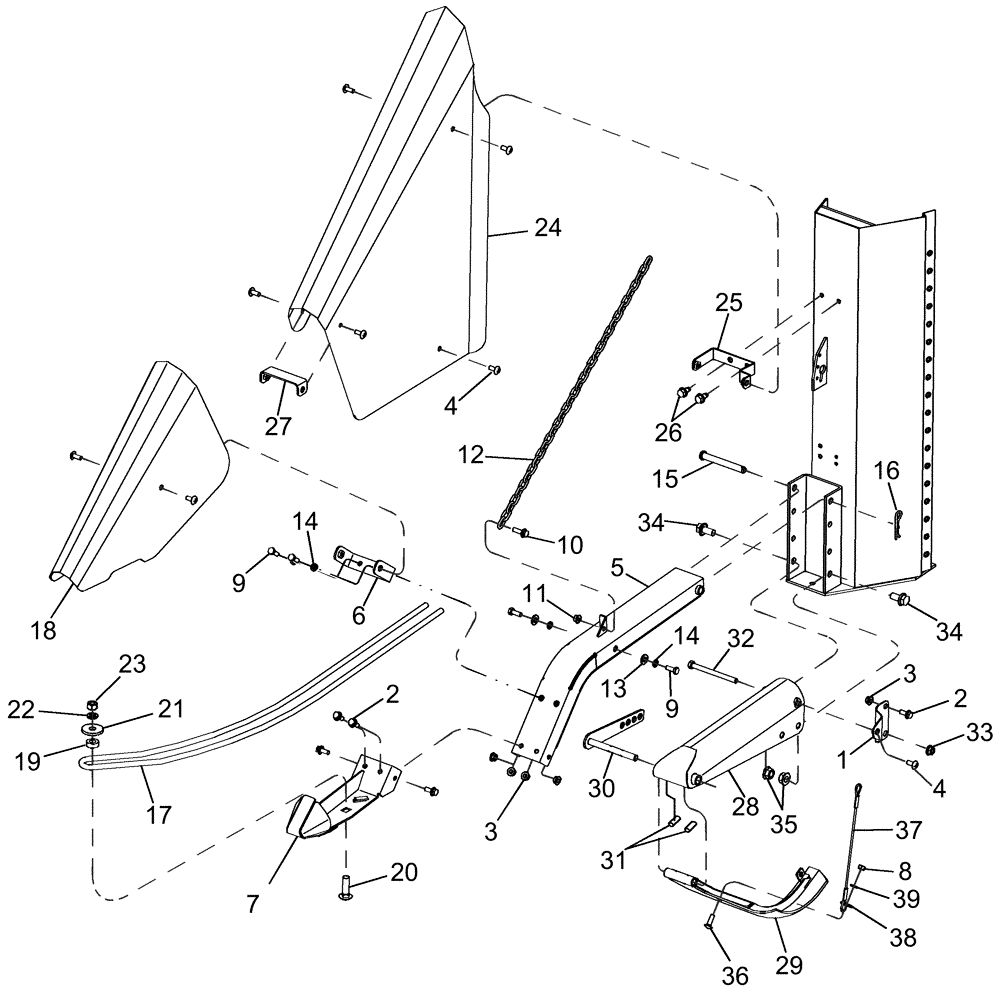

Схема запчастей Case IH 625 - (60.600.28[01]) - NEW GENERATION PLANT LIFTER WITH MECHANICAL HEADER HEIGHT CONTROL - RIGHT HAND, MODEL YEAR 2008 ONLY (60) - PRODUCT FEEDING
3
12
21
18
20
4
3
37
15
29
10
8
2
38
32
9
35
36
23
34
6
5
9
34
39
4
22
24
28
7
1
25
16
30
33
26
17
19
2
14
14
13
27
31
11

Артикул

Название

Примечание

Количество

1

87638041

COVER ASSY

Top Lower Mount

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

4шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

4

450-73112

SERRATED SCREW,Truss HD, 5/16" - 18 x 3/4"

7шт.

5

87638874

LIFT ARM

1шт.

6

87638899

COVER ASSY

Bottom Mount

1шт.

7

87638884

SHOE (ASSY)

Drive

1шт.

8

425-105

NUT,5/16"-18, G5

1шт.

9

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

10

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

11

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

12

87457723

CHAIN (AG)

Plant Lifter

1шт.

13

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

2шт.

14

392-11031

LOCK WASHER,5/16"

4шт.

15

439-1868

HEADED PIN,12.7mm OD x 107.25mm L

1шт.

16

86628570

COTTER PIN

1шт.

17

87457722

ROD ASSY.

1шт.

18

87638875

COVER ASSY

Bottom

1шт.

19

87638898

SPACER,13.5mm ID x 25.4mm OD x 9.1mm L

Guide Rod

1шт.

20

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1шт.

21

495-81164

WASHER,0.53" ID x 1.75" OD x 0.18" Thk

1шт.

22

492-11050

LOCK WASHER,1/2"

1шт.

23

425-108

NUT,1/2" - 13, Gr 5

1шт.

24

87427884

BODY

Plant Lifter Rear

1шт.

25

87638905

COVER ASSY

Top Upper Mount

1шт.

26

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

2шт.

27

87638039

COVER ASSY

Top Brace

1шт.

28

87644177

SHOE (ASSY)

Mount Base

1шт.

29

87532125

SHOE (ASSY)

Sensor Height Control

1шт.

30

87744233

SHOE (ASSY)

Sensing Shoe Pivot Pin

1шт.

31

38-31214

PIN,4.75mm OD x 22.23mm L, Coiled

2шт.

32

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

1шт.

33

231-5346

FLANGE NUT,Flg, 3/8"-16

1шт.

34

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

2шт.

35

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

36

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

1шт.

37

87653922

CABLE

Plant Lifter Stop

1шт.

38

396-41034

WASHER,8.74mm ID x 25.4mm OD x 2.49mm Thk

1шт.

39

492-11031

LOCK WASHER,5/16"

1шт.

Выбрано товаров: 39
